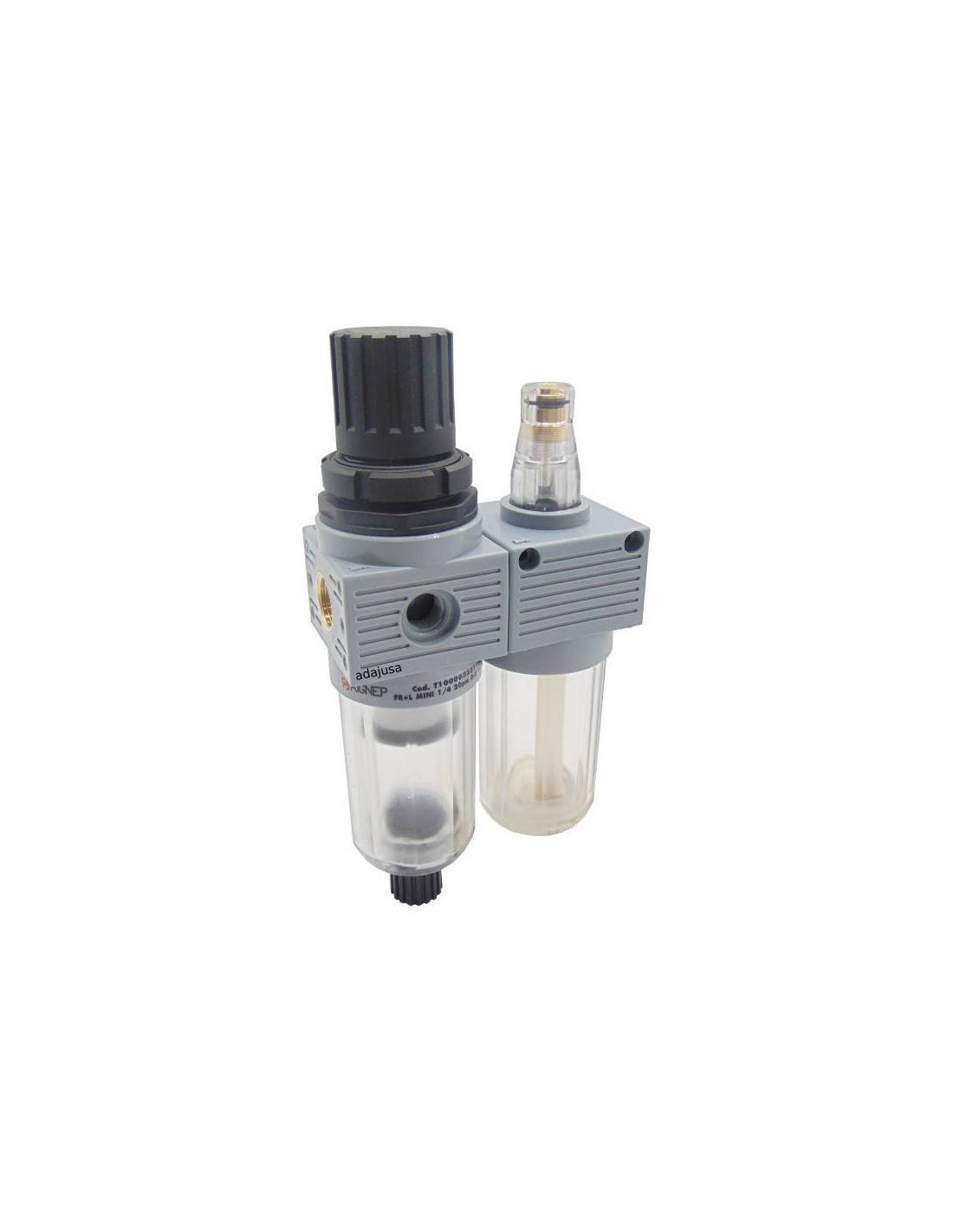

1/4 filtering group, 1/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size, in 2 modules (FR+L), European manufacture.
The main features of this filtering group include simplified modularity, precise and reliable regulation, highly optimized flow rate, reduced weight and coalescence filtering element. These filtering groups are made free of silicones.
with its reduced size and weight, satisfying the current demand for miniaturization and performance. Manufactured in technopolymer and nickel-plated brass with excellent corrosion resistance. The type of purge is semi-automatic, discharging the condensate when the pressure approaches zero.
The main application of this series of filtering groups is pneumatic automation, compressed air circuits and installations and compressors.
Note: the pressure gauge is not included in the scope of supply, it must be ordered separately.
Characteristics of the filtering group:
- Manufacturer: Aignep
- Part number: T100003231100
- Number of elements: 2 (FR+L)
- Fluid: Pressurized air
- Thread size: 1/4
- Filtration degree: 20 μm (*)
- Condensation drain manual-semi-automatic
- External sight glass
- Built-in overpressure drain valve
- Lock on regulating knob included
- Maximum pressure: 15 bar
- Regulation from 0-8 bar (**)
- Flow rate at 6 bar (ΔP1bar): 260 Nl/min
- Thread size for pressure gauge: 1/8
- Mounting screws: M3 (Not included)
- Mounting form: Vertical
- Working temperature: -10ºC to +50ºC
- Recommended oil for the lubricating cup: ISO VG 22A CLASS ISO 3448 STANDARD
- Reference standard: PED 2014/68/EU
(*) On request, units can be supplied with a filtration degree of
(**)Other regulation ranges on request
Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
For further information you can download the technical data sheet by clicking on the "Attachments" tab
