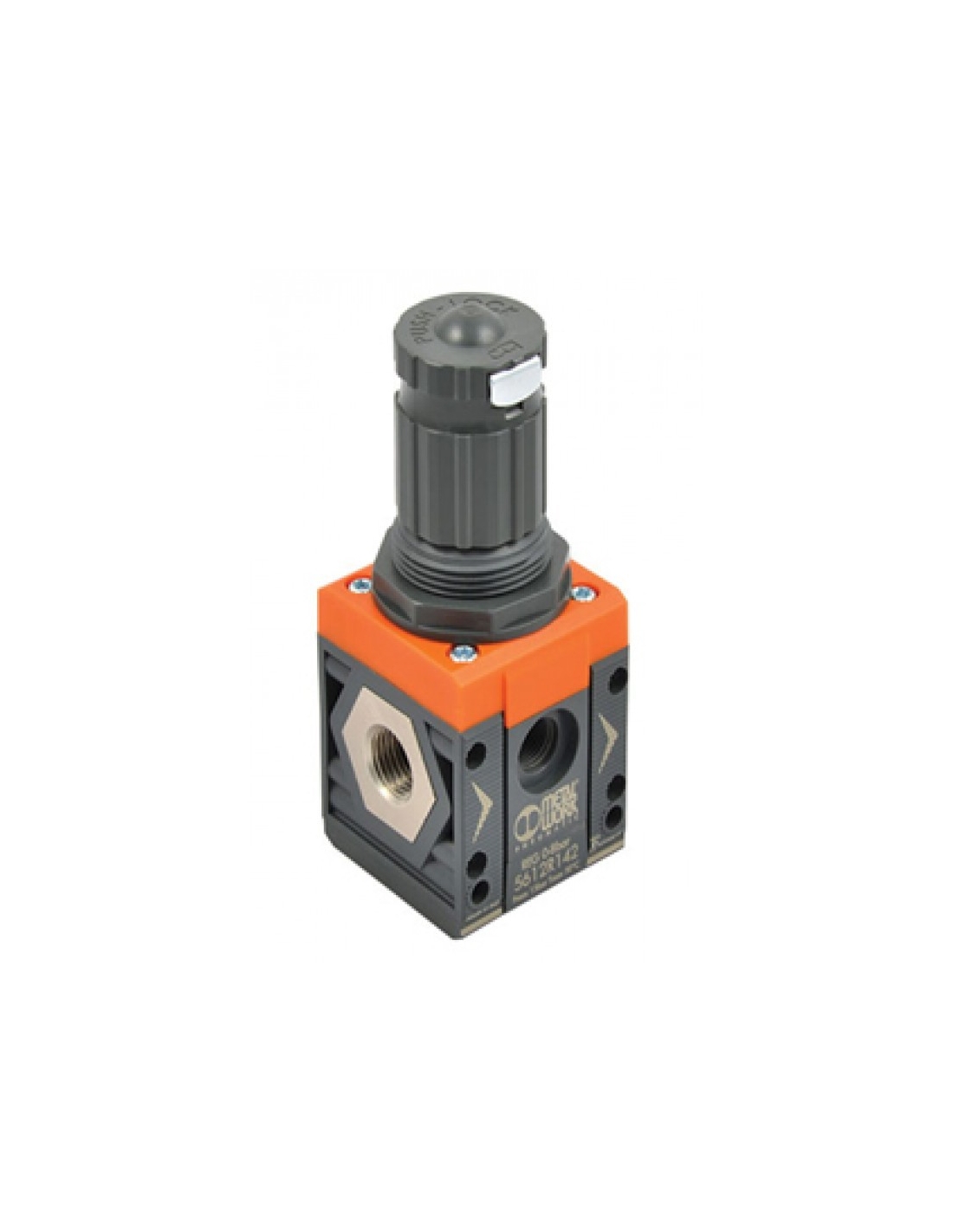

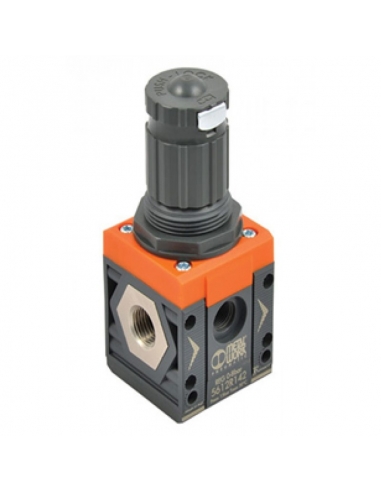

1/8 pressure regulator and regulation range 0-12 bar , compact size (SY1), body made of high-resistance technopolymer and nickel-plated brass threaded terminals. Allows output pressure stability at the preset pressure starting from a equal or higher inlet pressure. Possibility of fixing through side holes or square. Padlock locking system.
It admits very diverse types of assembly, with the appropriate accessories.
Note: the pressure gauge is not included in the supply, it must be ordered separately.
Technical characteristics.
- Manufacturer: Metal Work
- Reference: 5611R161 - REG SY1 1/8 012
- Regulator Size: Size 1
- Threaded connection size: 1/8".
- Regulation range: 0-12 bar .
- Maximum inlet pressure: 15 bar .
- Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 570
- Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (Nl/min): 1200
- Relieving discharge flow rate, at 6.3 bar (0.63 MPa; 91 psi) (Nl/min): 70
- Fluid: Air filtering, with or without lubrication.
- Wall fixing screws: M4x40.
- Pressure gauge connection: 1/8".
- temperature at 10 bar ; 1MPa; 145 psi ( °C): 10 ÷ +50
- Included: Full discharge step by zeroing inlet pressure and lockable knob.
- Inlet pressure compensation: Included, through balanced valve
- Flow rate of additional air intakes at 6.3 bar (Nl/min): 500
For other models or sizes consult.
Pressure gauge and mounting accessories not included in the supply or in the price, they must be ordered separately
Material for professional use, install in compliance with the regulations in force at the place of installation.
For more information, you can download the technical sheet by clicking on the "Annexes" tab.
