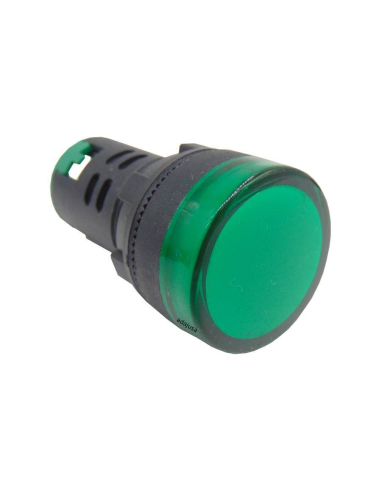

Pilot green multiled 230 Vac 22mm

Name: Pilot green multiled 230 Vac 22mm
Brand: OMU System
SKU: AD22/G/230
Price: 1.5006 EUR
Availability: InStock

€1.50 Tax included

€1.23 tax excl.

Pilot greenmultiled luminous, voltage 230 Vac, diameter 22mm. High luminosity and long life chip.

Reference: AD22/G/230 - AD22-22DS-G23

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pilot greenmultiled for voltage 230 Vac, diameter 22mm. Luminous element composed of high performance led (no bulb needed).

Technical characteristics:

Manufacturer/Supplier: Denor/Mixvil
Part number: AD22-22DS-G230 (AD22/G/230)
Voltage: 230 Vac.
Color of pilot light: Green.
Rated current (In): ≤16mA.
Luminance: ≥60cd/m².
Diameter: 22mm.
Degree of protection: IP65.
Type of connection: By screw.
Type of fixing: By nut.
Material: Polycarbonate black color.

dimensiones piloto multiled verde 230V

Material for professional use, install in compliance with the regulations in force at the place of installation.

Colors_in_command_and_signals

Meaning and use of colors in control and signaling devices

Download (21.92KB)

Multi-LED electric lamps

Technical data sheet multiled electric lights

Download (645.12KB)

pushbutton catalog

aDAJUSA catalog of metallic electric pushbuttons

Download (1.5MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)
