3-pole cam switch 20a 48x48mm black lever - Giovenzana adajusa
Cam switch  3-pole 20a 48x48mm red lever -...
3-pole cam switch 20a 48x48mm black lever - Giovenzana adajusa
Cam switch  3-pole 20a 48x48mm red lever - Giovenzana

Cam switch 3-pole 20a 48x48mm red lever - Giovenzana

€14.77 Tax included

€12.21 tax excl.

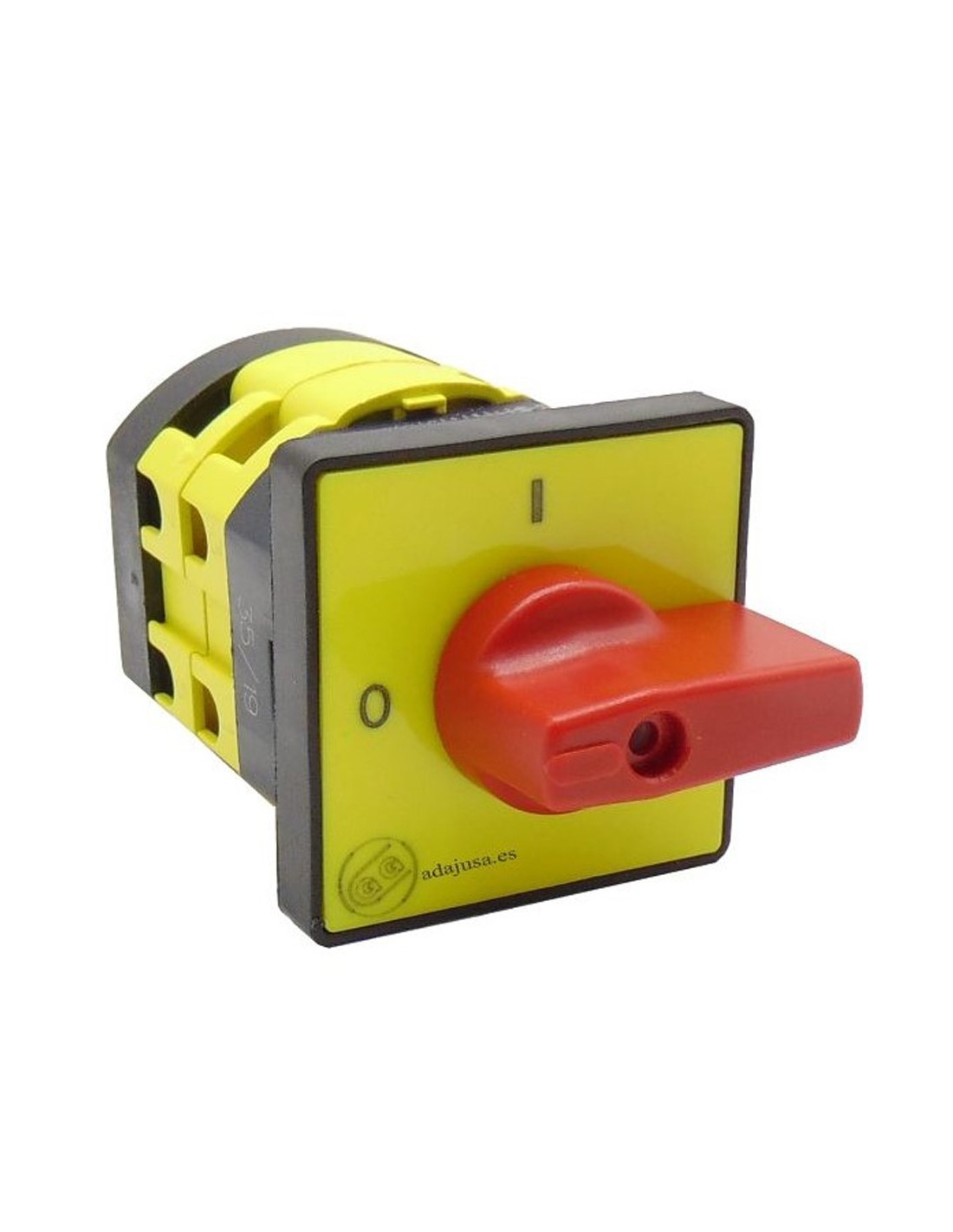

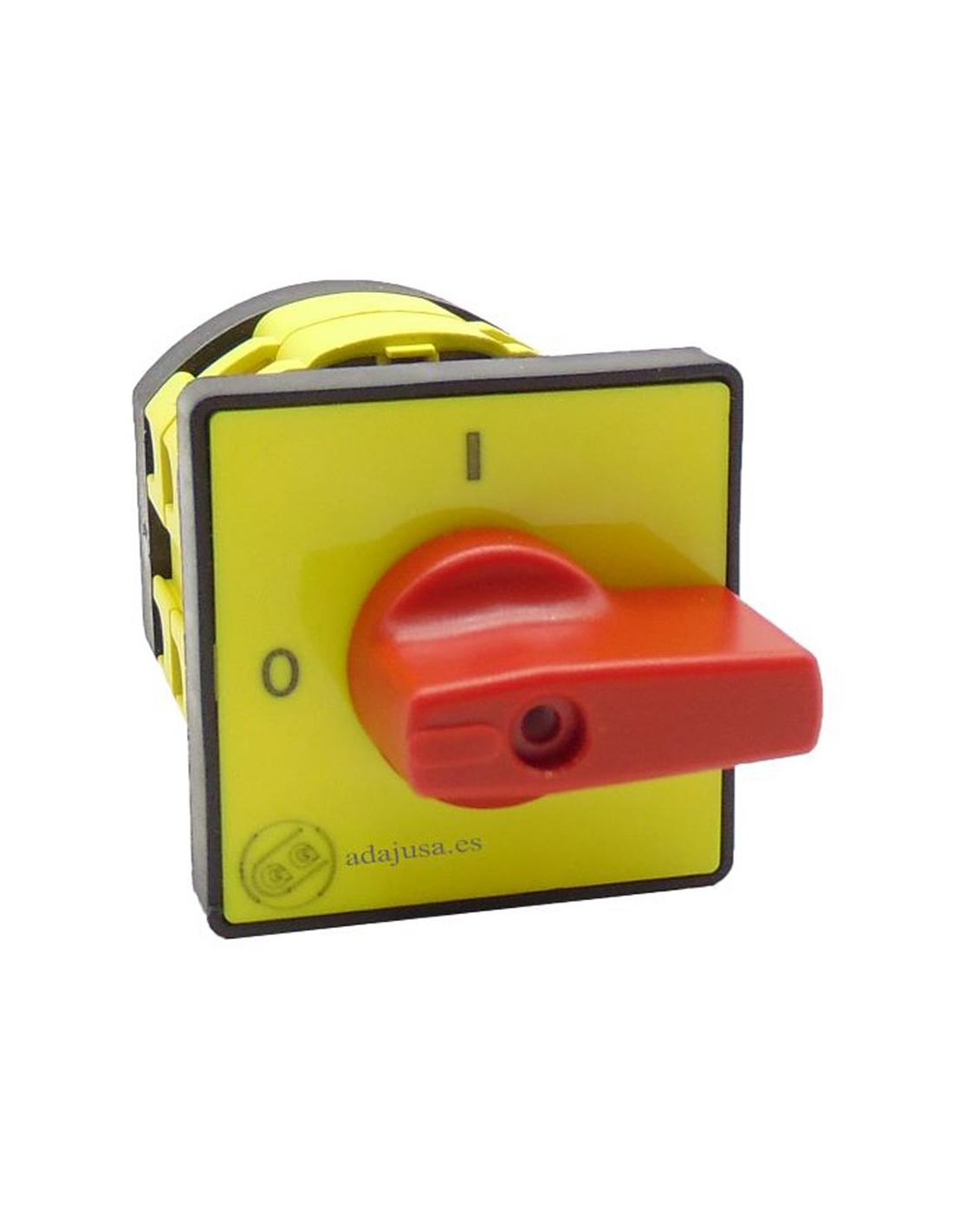

Rotary cam switch, three-phase main switch 20a., rotary knob 90º 0-1, front plate in yellow and lever in red, made according to the strictest European standards, which allow to meet the requirements in terms of safety.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines.

reference: GI200348R
Esquema interruptor seccionador trifasico

Giovenzana

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

Out of stock

No queries yet, leave the first!


Three-phase cam 20a for inductive loads (Electric motors) and general control. Rotary control 90º, with two positions 0-1. Yellow plate and red lever.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by transpanel fixation (rear-frame), degree of protection IP-20 in terminals, self-cleaning contacts and indelible laser marking. Body made of ul94 VO self-extinguishing material.

Supply includes:

  • Three-phase cam switch 20a: P0200003R
  • Front plate with black lever: 002/0001

characteristics:

  • Brand: Giovenzana
  • Switch reference: P0200003R
  • Front plate reference: 002/0001
  • number of poles: 3.
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 20a.
  • Nominal interrupt capacity: 5kA.
  • Number of manoeuvres / hours: 120.
  • Mechanical durability: 1,000,000 maneuvers.
  • Built-in mounting.
  • Degree of protection:
  • Type 1-4-4X controls: IP-65.
  • Lever-only controls: IP-40.
  • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14

Table of intensities and powers of use:

  • AC-21A Usage Category: 20a.
  • AC-22A Usage Category: 20a.
  • AC-23A Usage Category:
  • Standard single-phase motors 230Vac: 18A - 4kW.
  • Standard three-phase motors 230Vac: 16a - 5kW.
  • Standard 400Vac three-phase motors: 16a - 9kW.
  • AC-3 Usage Category:
  • 230Vac single-phase standard motors: 16a - 3.5kW.
  • Standard three-phase motors 230Vac: 12A - 4kW.
  • Standard three-phase motors 400VAc: 12A - 6kW.
  • Use category DC-21A (dc current):
  • Small overload 50V (1 phase): 16a.
  • Use category DC-22A (dc current):
  • 30V mixed load (1 phase): 12A.
