Valves 5/3 exhaust centers on base series 70 - Metal Work

Valves 5/3 exhaust centers on base series 70 - Metal Work

€53.39 Tax included

€43.76 tax excl.

70 pneumatic series valves on 5/3 base monostable open center

Reference: 7011012200

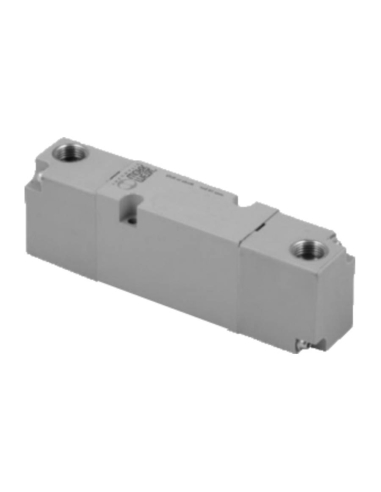

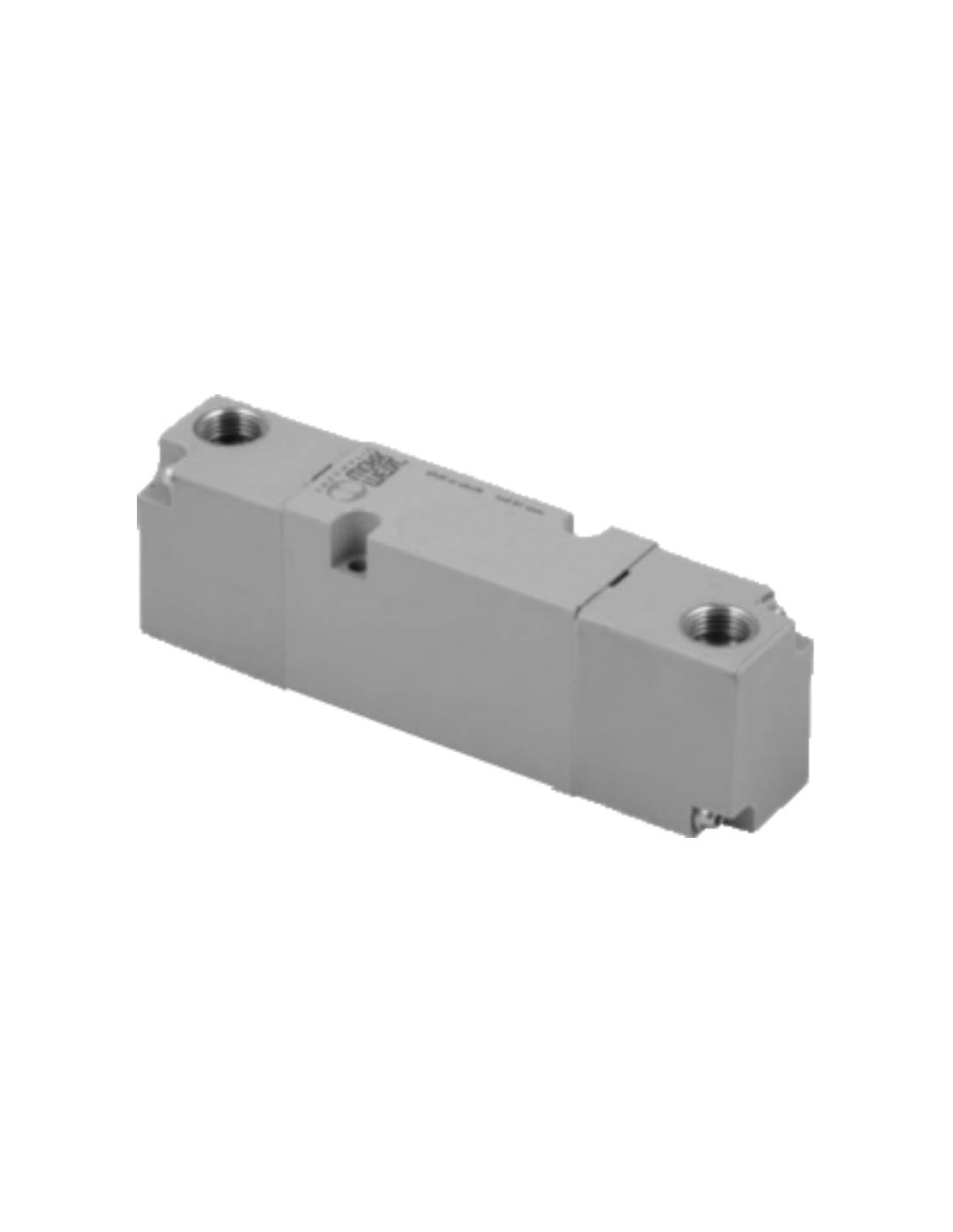

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

70 pneumatic series valves on 5/3 base monostable open centers

Features:
  • Manufacturer: Metal Work
  • Reference: 7011012200 - PNV B6 PNS OC
  • Operating pressure (bar): Empty ÷ 10
  • Minimum drive pressure: • monostable (bar): 2.5
  • Operating temperature (°C): -10 ÷ +60
  • Nominal diameter (mm): 5
  • Conductance C (Nl/min · bar): 107.69
  • Critical ratio b (bar/bar): 0.29
  • Flow rate at 6 bar ΔP 0.5 bar (Nl/min): 320
  • Flow rate at 6 bar ΔP 1 bar (Nl/min): 450
  • Monostable TRA/TRR at 6 bar (ms): 6/15


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
