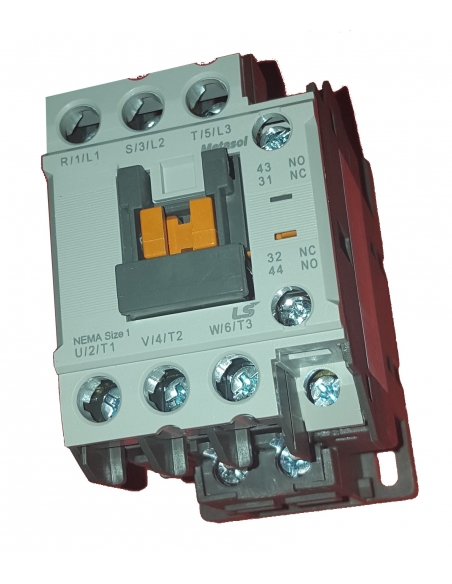

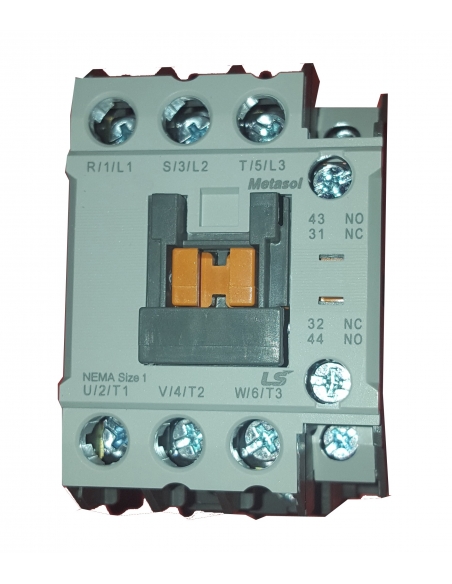

Three-phase contactor 22A coil 230Vac -  LS
Three-phase contactor 22A coil 230Vac -  LS
Three-phase contactor 22A coil 230Vac -  LS
Three-phase contactor 22A coil 230Vac -  LS

Three-phase contactor 22A coil 230Vac - LS

€38.83 Tax included

€32.09 tax excl.

Electric three-phase contactor equipped with high capacity contacts for electric motor control, heating, lighting, ventilation, general uses, 3 poles with a current capacity of 22A ac3 or 40A category AC1, with coil 220-230Vac, the contactor is equipped with an open auxiliary contact (NA) and a closed auxiliary contact (NC).

Contactor Reference: MC-12b AC230Vac

Esquema electrico contactor

Logotipo LS LG industrial Systems

No queries yet, leave the first!


Three-phase contactor (3 poles) of 22A in AC3 category or 40A in AC1 category, the contactor is equipped with high robust main contacts, suitable for demanding applications for electric motor control, heating systems, lighting, ventilation and general use. The contactor is equipped with an open auxiliary contact (NA) and a closed auxiliary contact (NC), located on the side of the contactor. The contactor can be fastened by screws or by DIN rail.

Technical details:

  • Manufacturer: LS (LG Industrial Systems).
  • Contactor Reference: MC-22b AC230Vac 50/60Hz 1a1b 3P
  • Maximum operating voltage: 690Vac.
  • Coil voltage: 230Vac.
  • Number of contactor poles: 3.
  • Assigned current for contactor in AC3: 22A.
  • Current assigned for contactor in AC1 (Ith): 40A.
  • Maximum power (kW) 380-400Vac: 11kW.
  • Maximum power (kW) 220-230Vac: 5.5kW.
  • Auxiliary contacts: 2 sides (1 open and 1 closed)
  • Minimum auxiliary contact current: cc 17V 5mA.
  • Hourly operations: 1800.
  • Mechanical durability: 15,000,000 operations.
  • Electrical dubability: 2,000,000 operations.
  • Weight: 0.34 Kg.
  • Dimensions: 45x73.5x86 mm.
