Coil for solenoid valve 24VAC Metal Work W0215000111 Price adajusa
Coil for solenoid valve 24VAC Metal Work W0215000111 Price adajusa

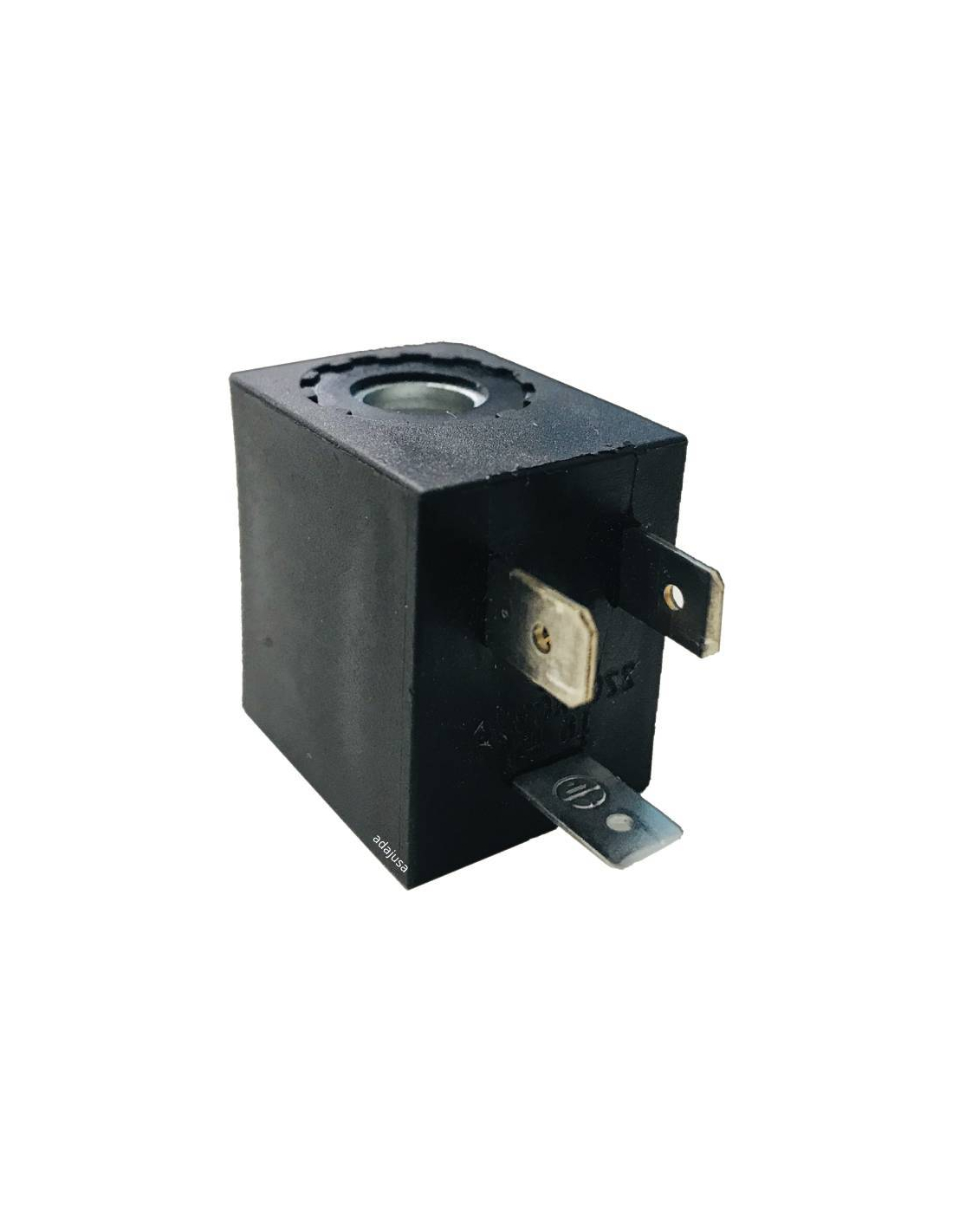

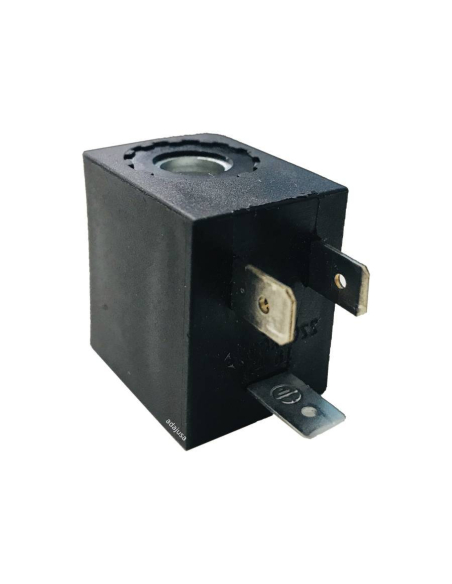

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

€9.28 Tax included

€7.61 tax excl.

W0215000111

Coil for solenoid valve size 22mm, voltage 24Vca., with a consumption of 3.5VA, for cores of Ø8mm.

Valid for solenoid valves with 8mm actuator core.
Reference: W0215000111

Logotipo Metal Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Coil size 22mm for 24VAC voltage with a power of 3.5VA, suitable for solenoid valves with an actuator core diameter of 8mm.

Suitable for solenoid valves manufactured by:

  • Metal Work.
  • Airon.

specifications:

  • Manufacturer: Metal Work.
  • Reference: W0215000111
  • Rated voltage: 24VAC.
  • Voltage tolerance: -10% +15%.
  • Nominal power: 3.5VA.
  • Starting power: 5.3VA.
  • Core diameter: 8.2mm (8mm).
  • Insulation type: F155.
  • Degree of protection: IP65 according to EN60529 with connector.
  • Temp. Max. coil at ED100%: 70oC for an ambient temperature of 20oC.
  • ATEX 94/9/EC Regulations, Group II category 3GD.
  • Do not continuously expose atmospheric agents.

Dimensiones de bobinas para valvulas neumaticas

Material for professional use, install in compliance with the regulations in force at the place of installation.
