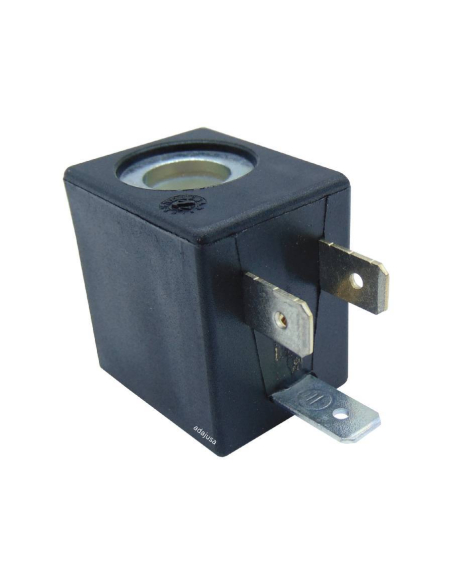

Solenoid valve coil 12Vdc 6.5 W T22 diameter 10
Solenoid valve coil 12Vdc 6.5 W T22 diameter 10

Solenoid valve coil 12Vdc 6.5 W T22 diameter 10

€4.57 Tax included

€3.78 tax excl.

Coil for electrovalve size 22mm, voltage 12Vcc., with a consumption of 6.5W, for cores of Ø10mm.

Manufactured by Aignep and valid for electrovalves with 10mm actuator core.

Reference: SOL10012C4000

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


22mm size coil for 12Vdc voltage with a power of 6.5W, suitable for solenoid valves with an actuator core diameter of 10mm.

Suitable for solenoid valves manufactured by:

  • Aignep

Technical details:

  • Manufacturer: Aignep.
  • Reference: SOL10012C4000
  • Rated voltage: 12Vdc (12Vdc).
  • Voltage tolerance: ±10%.
  • Nominal power: 6.5W.
  • Core diameter: 10mm (10.2mm).
  • Insulation type: H CEI EN 60529.
  • Degree of protection: IP65 according to EN60529 with connector.
  • Temp. Max. coil at ED100%: 70oC for an ambient temperature of 20oC.

Dimensiones bobina tamaño 22
