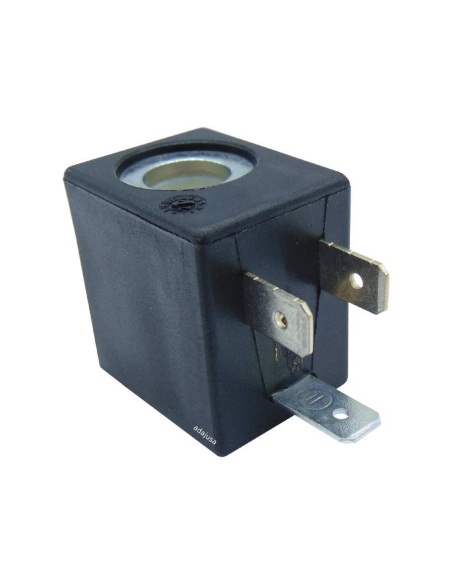

Solenoid valve coil 220VAC 14VA T30 diameter 13

€9.71 Tax included

€7.96 tax excl.

SOL20220AA000

Coil for solenoid valve size 30mm, voltage 220-230VAC, with a consumption of 14VA, for cores of 13mm.

Manufactured by Aignep and valid for solenoid valves with 13mm actuator core.

Ref: SOL20220AA000



Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Coil size 30mm for voltage of 220-230VAC with a power of 14VA, suitable for solenoid valves with an actuator core diameter of 13mm.

Suitable for solenoid valves manufactured by:

  • Aignep

specifications:

  • Manufacturer: Aignep.
  • Reference: SOL20220AA000
  • Rated voltage: 230VAC.
  • Voltage tolerance: ±10%.
  • Rated power: 14VA.
  • Core diameter: 13mm (13.2mm).
  • Size: 30mm DIN 43650
  • Insulation type: H CEI EN 60529.
  • Degree of protection: IP65 according to EN60529 with connector.
  • Temp. Max. coil at ED100%: 70oC for an ambient temperature of 20oC.

Dimensiones bobina electroválvula tamaño 30 diámetro 13
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Question
Bonjour, j'ai une bobine d'électrovanne à remplacer sur un climatiseur. J'ai mesuré le diamètre de l'axe : il fait 11 mm. Que me conseillez-vous ? Merci. Cordialement.
Answer
bonjour

Si vous avez mesuré que le diamètre de l'arbre est de 11 mm, vous devez chercher une bobine qui correspond à cette mesure, vous devez également prendre en compte la puissance de la bobine et la tension de fonctionnement.

Chaque électrovanne possède une bobine d'un certain diamètre adapté à vos besoins. Si elle est plus grande, elle ne fonctionnera pas correctement.

cordialement

Michel on 03/14/2022 18:54:29
