Aluminium profile 90x90 Lightweight
Aluminium profile 90x90 Lightweight

Aluminium profile 90x90 Lightweight cut to size

Special material, cut to size, delivery time approximately 5-7 days
€112.40 Tax included

92.13 tax excl.

10017

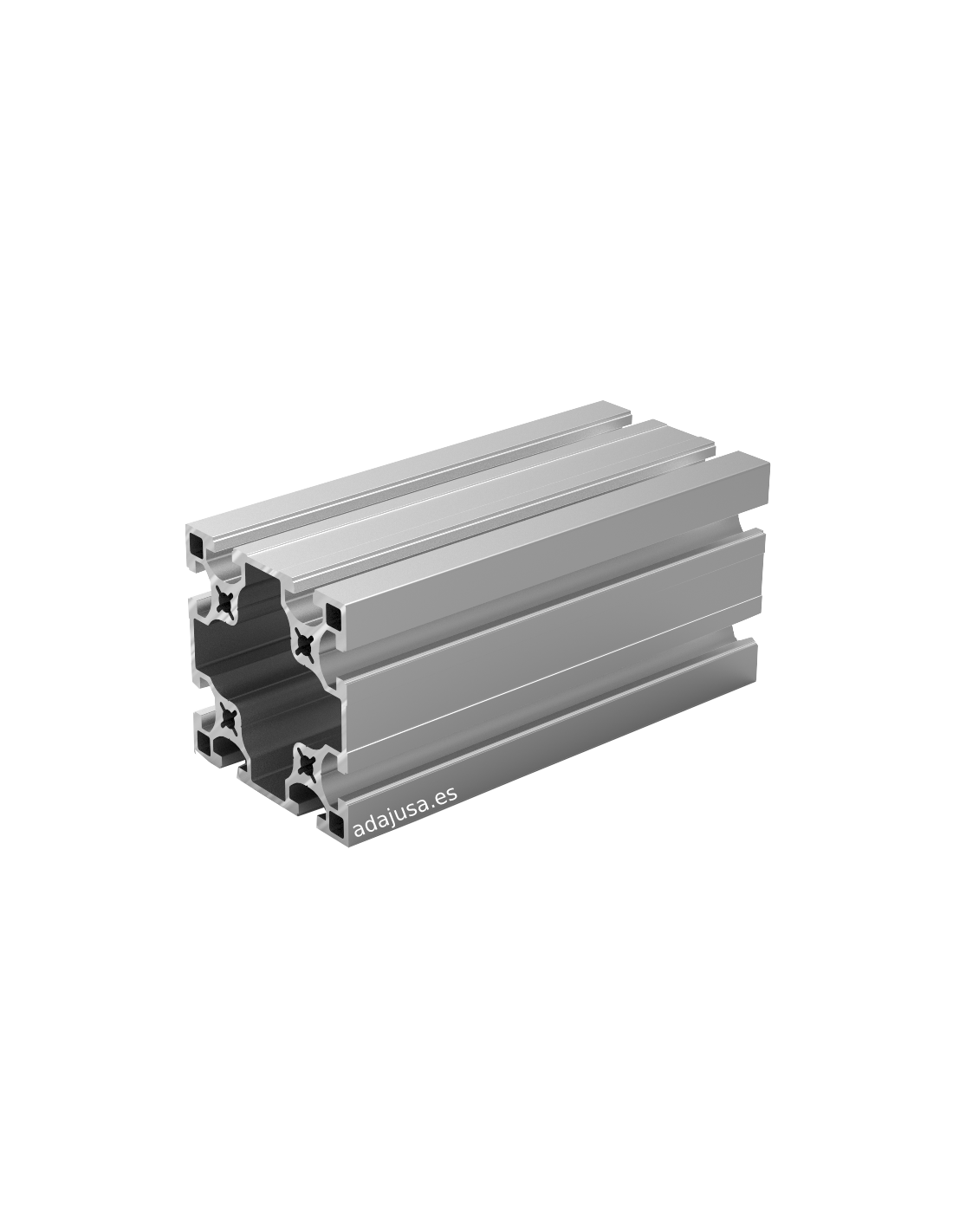

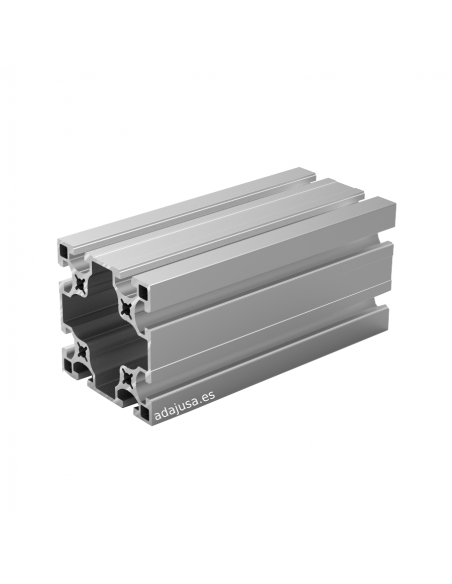

Lightweight aluminum structural profile of 90x90mm, 10mm groove.

Reference: 10017

Anodized aluminum profile for heavy loads in color natural for industrial and general applications of 90x90mm, has a groove on each side for 10mm accessories.

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.



Profile cut to the desired size between 250 mm and 1,800 mm. Indicate the length you want in the side menu.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Lightweight structural aluminium profile of 90x90mm for industrial and general use applications. It has a 10mm groove in its entire length for each of its four faces.

Made of high-strength aluminum, anodized in natural color (aluminum).

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.

Lipro 10017

Specifications:

  • Manufacturer/Distributor: LIPRO/Metal Work
  • Reference: 10017
  • Dimensions: 90x90mm
  • Material: Aluminum alloy Al Mg Si 6060 (ISO 9006/1)
  • Minimum tensile strength (Rm): 195 N/mm2
  • Yield strength: Rp 0.2= 145 N/mm2
  • Modulus of elasticity (E): 70000 N/mm2
  • Anodizing thickness: 15 μm
  • Dimensional tolerance according to ISO-EN 755
  • Moment of inertia:
    • Lx (cm⁴): 195.39
    • Ly (cm⁴): 195.39
  • resistance module:
    • Wx (cm³): 43.42
    • Wy (cm³): 43.42
  • Profile area: 2091.97 mm2
  • Mass (Kg/m): 5,60
  • Slot width: 10 mm
  • Number of slots: 8

Material cut to size, once the order has been processed, it cannot be cancelled or modified. The cutting accuracy is ±3mm.
