Genie 110-240Vac Input-Output Module
Genie 110-240Vac Input-Output Module

Module I/Os Genie 12-24Vdc

€72.10 Tax included

€59.10 tax excl.

G8DDT10E

Module for the extension of the Genie-NX programmable relay, has 8 digital inputs and 4 outputs. Operating voltage 12-24Vdc. Up to 3 expansion modules can be attached to a programmable relay.

Reference: G8DDT6E

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Module for expansion in inputs and outputs of the Genie-NX programmable relay, this module allows to expand into 8 digital inputs and 4 outputs. Up to 3 modules can be added, reaching the maximum inputs and outputs allowed by the 48 I/O system (32 digital inputs, 16 outputs).

The connection between the modules and the relay is made by 2 normal cables.

Summary of technical characteristics:

  • Reference: G7DDT6E
  • Supply voltage: 12-24Vdc. -20%+10%.
  • Consumption: 5W.
  • Digital inputs: 8.
  • Input voltage:
    • OFF: 0-4Vdc.
    • ON: 8-26,Vdc.
  • Digital outputs: 4 NO.
  • Output characteristics (resistive load): 8A @240Vac, 5A x 30Vdc.
    • CATEGORY AC-15: 120/240V 3/1.5A.
    • Category DC-15: 24/125/250V 2/0.22/0.1A.
  • Electrical life output contacts: 10⁵.
  • Mechanical life output contacts: 10⁷.
  • Operating temperature: -10oC.. +55oC.
  • Envelope: ignition according to UL94-V0.
  • Dimensions (WxXD)mm: 72x90x65.
  • Weight: 230g.
  • Mounting: DIN Base/Rail.
  • Degree of protection: IP20 for terminals, IP40 for envelope.

Electrical connection:

Conexionado módulo ampliación relé programable Genie

Dimensions:

Dimensiones módulo ampliación relé logico Genie


Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Cuando se añade un módulo , el número de contadores , temporizadores , número de líneas ( 250 ) , etc también se duplica , gracias
Answer

Buenas,

Este modulo solo proporciona ampliación de numero de entradas y salidas, el resto de caracteristicas no se amplian.

Saludos

Javier on 06/13/2018 22:36:36

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

11 other products in the same category:

Customers who bought this product also bought:

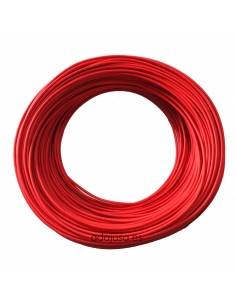

Flexible unipolar cable 1 mm2 red
Special material, PayPal payment not accepted
Cables for electrical installations

Flexible unipolar cable 1 mm red

Topcable
H05V-K-R1M
€0.49 (€0.40 tax excl.)
Flexible 1mm2 section cable, red color, specially designed for internal wiring of electrical cabinets, switch boxes and electrical appliances. Designed under CPR regulations (EN 50575) Series: TopFlex V-K Color: Red. Section: 1mm2. Price per meterMaterial cut to size, no return or cancellation of the order is allowed  Representative...

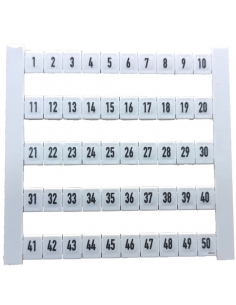

DEK5 FW 1-50
