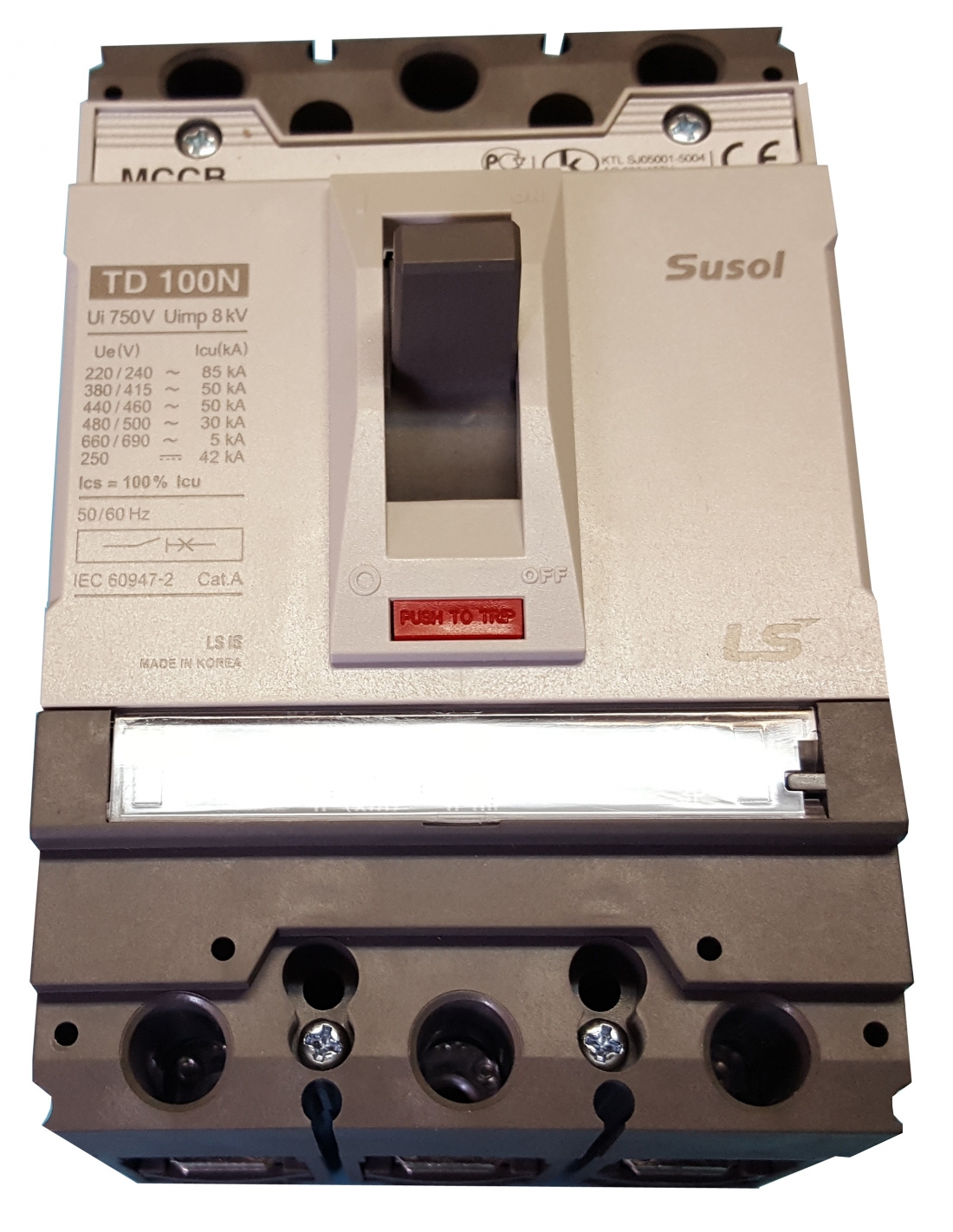

Automatic switch box molded three-pole 3x63A Thermal Reg. - LS

€211.07 Tax included

€174.44 tax excl.

Automatic switch in three-phase molded box 3 poles of 63A of nominal intensity, with thermal regulation trigger threshold between 51 to 63A and fixed magnetic threshold. breaking capacity of 50kA and high electrical and mechanical life.

Reference: TD100N-FMU100-63A-3P

Logotipo marca LS LG

No queries yet, leave the first!


Automatic switch in three-phase molded box 3 poles of 63A nominal intensity, for protections of electrical installations and machinery. With adjustable thermal firing threshold and fixed magnetic threshold. High cutting power and high electrical and mechanical life.

Technical details:

  • Manufacturer: LS (LG Industrial Systems)
  • Product Reference: TD100N-FMU100-63A-3P
  • Calibre (In): 63A
  • Number of poles: 3
  • Nominal voltage (Ue): 230-690V
  • Cutting power (Icu): 50kA to 400Vac
  • Short-circuit cutting power (Icm): 105kA to 400Vac
  • Thermal regulation: 0.8-1 of the nominal intensity
  • Mounting: fixed front connection
  • Dimensions: 90x140x86 mm
  • Weight: 1.5Kg
  • Regulations: IEC60947-2

For more information, download the MCB circuit breaker data sheet by clicking on the "downloads" tab.
