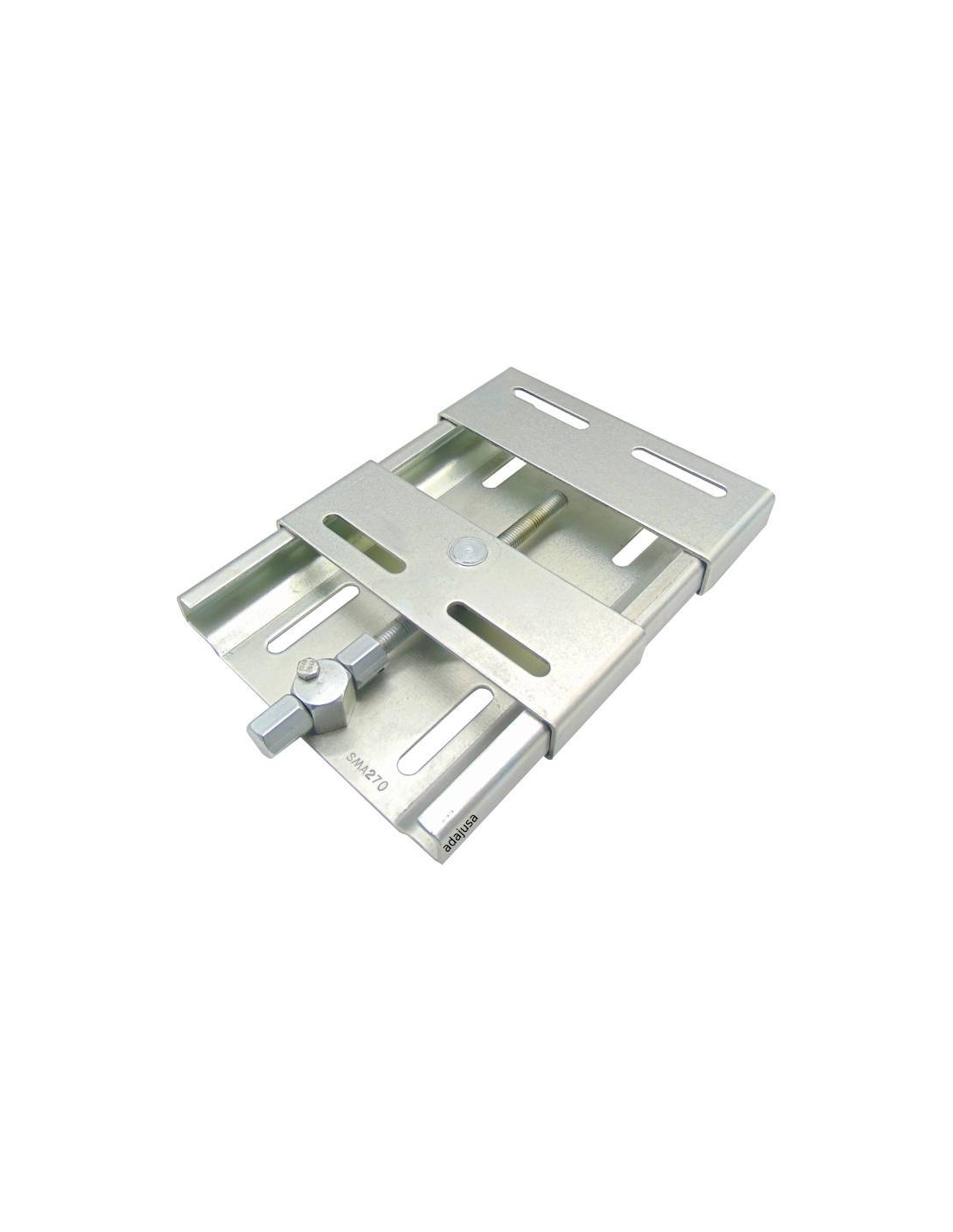

Tensioning base for electric motor size 180 to 200
Tensioning base for electric motor size 180 to 200
Tensioning base for electric motor size 180 to 200
Tensioning base for electric motor size 180 to 200

Tensioning base for electric motor size 180 to 200

€121.36 Tax included

€100.30 tax excl.

Tensioning base for electric motors with housing sizes between 180 and 200. Allows adjustment and regulation of belt tensioning and alignment without disassembling the motor. Adjustable plate displacement by means of standard screw.


Part number: LMBTSMA490

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Metal tensioning base for electric motors with housing sizes from 180 to 200, suitable for manual tensioning and untensioning of belts and constant alignment without disassembling the motor, thus allowing proper power transmission. Adjustable displacement by means of standard screw. Made of high quality zinc plated steel plate against rust and corrosion, galvanized finish.

The tensioning platform has separate overlapping plates suitable for different types and sizes of motors with a compact structure. Easy assembly and fixing which allows quick and easy tension adjustment.




Features:

  • Manufacturer/Importer: Motorseg
  • Part Number: LMBTSMA490
  • Motor size: 180/200
  • Material: Zinc plated steel
  • Long adjustment stroke
  • Permanent alignment
  • Minimum height
  • Single screw adjustment
  • Weight: 10.8Kg









Material for professional use, install in compliance with the regulations in force at the place of installation.
