€8.50 Tax included

€6.97 tax excl.

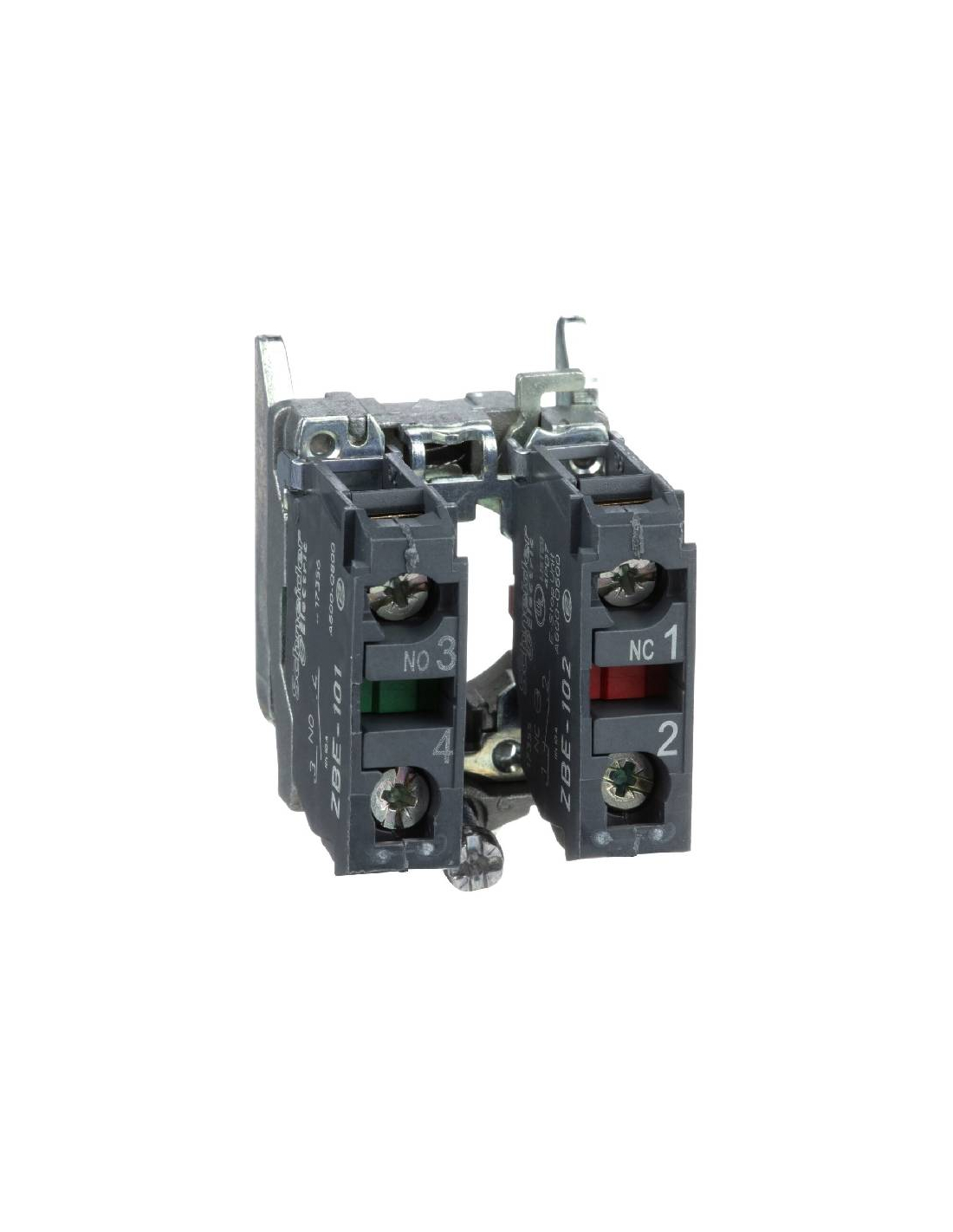

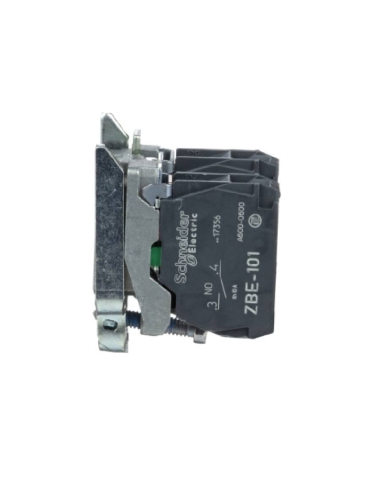

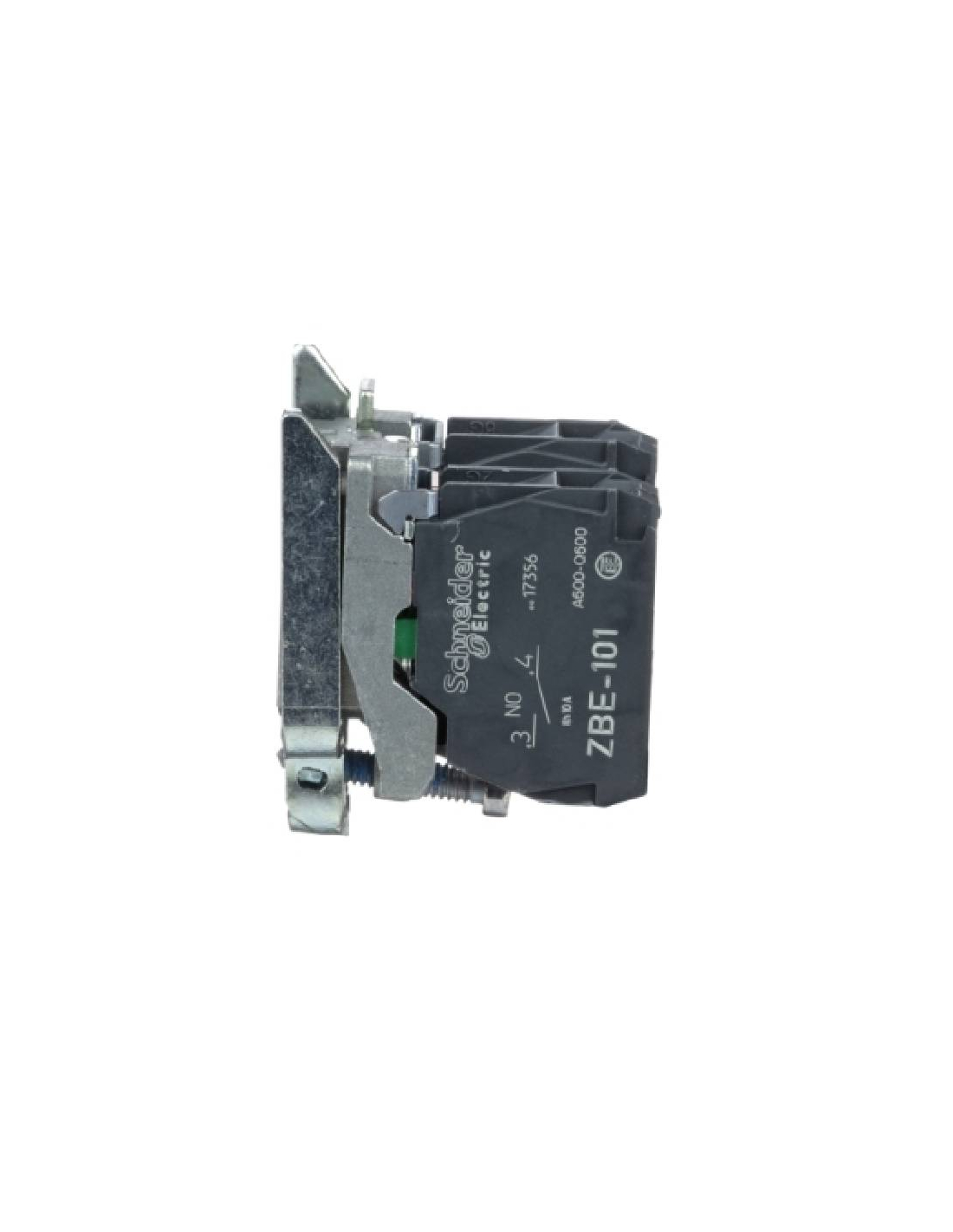

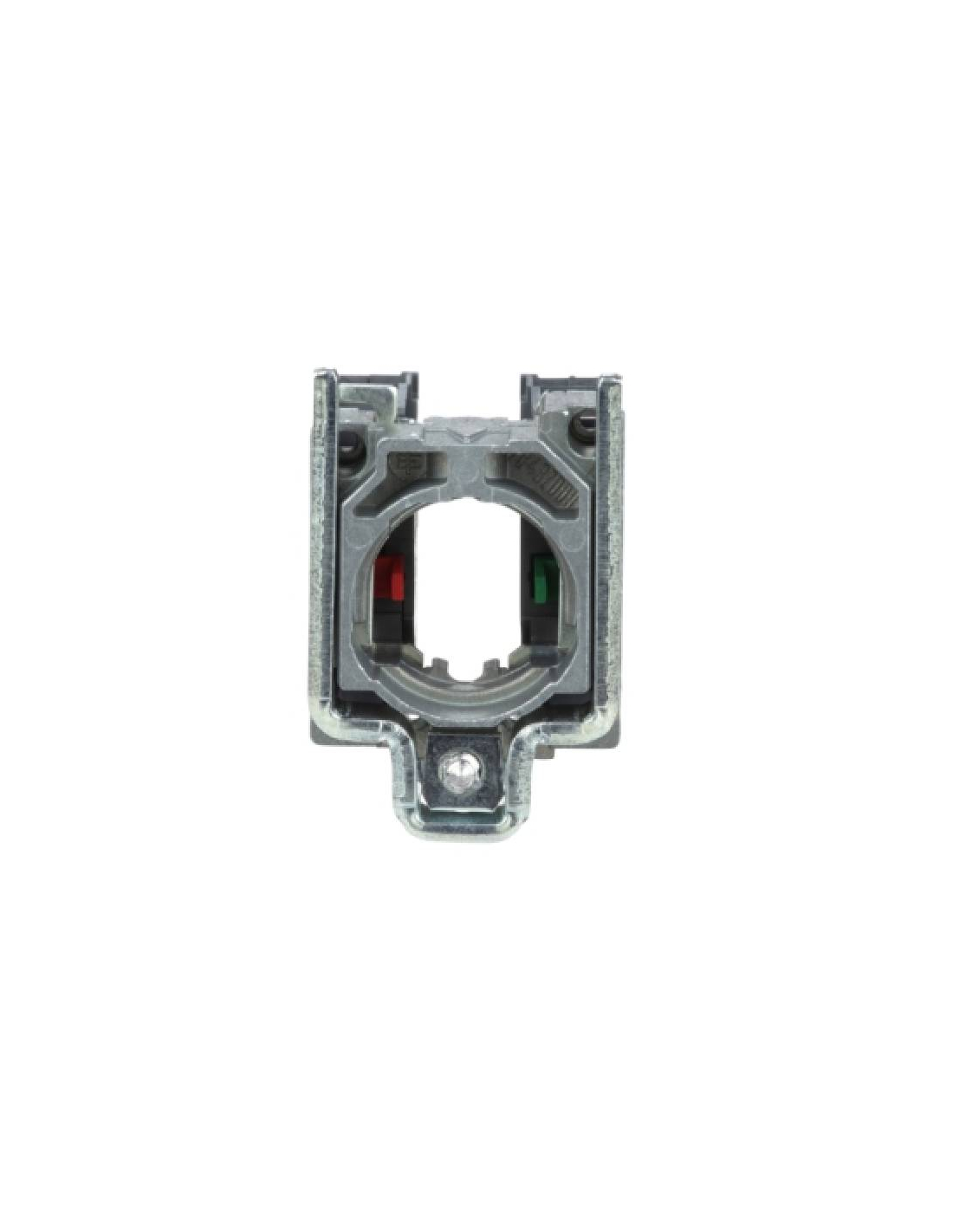

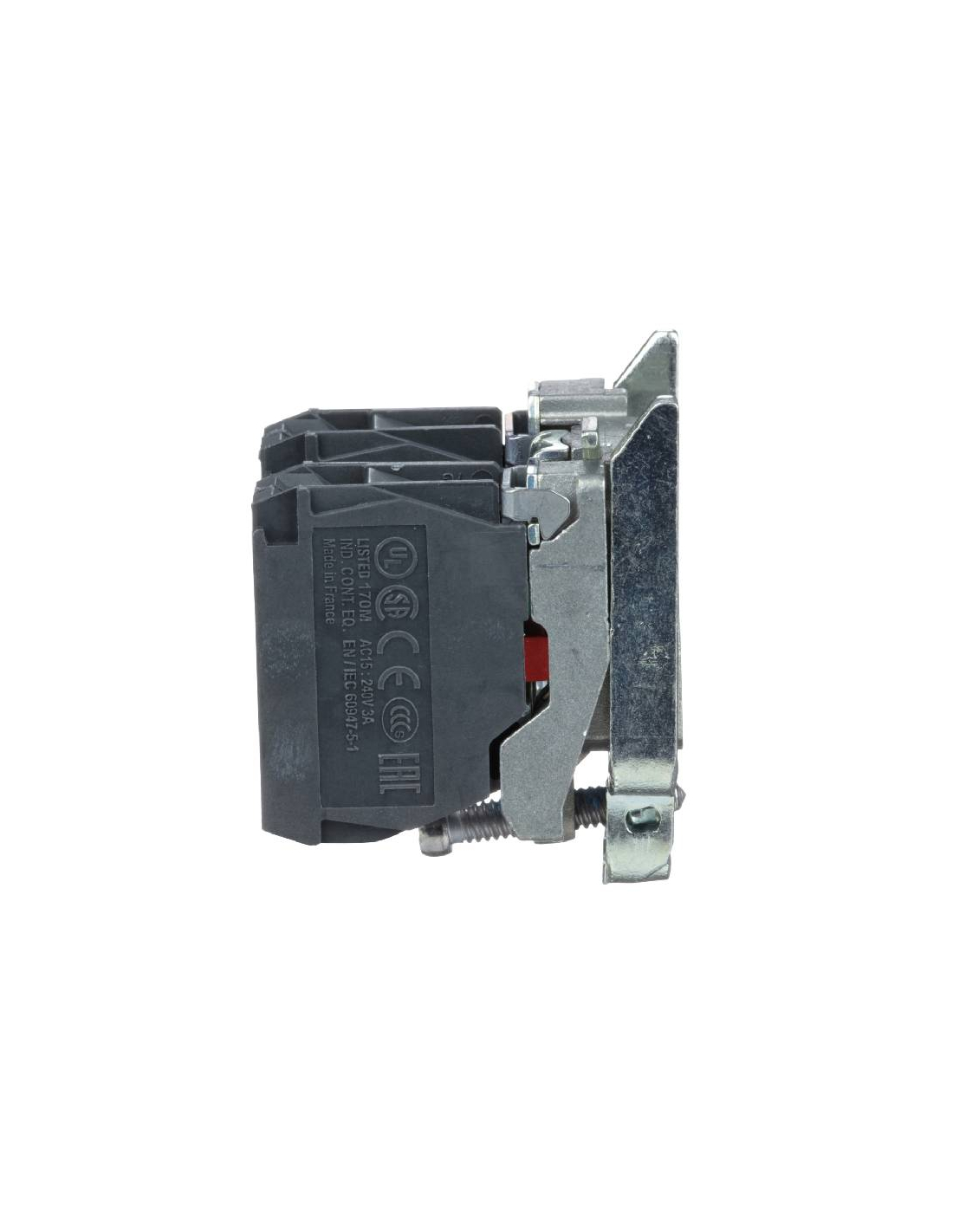

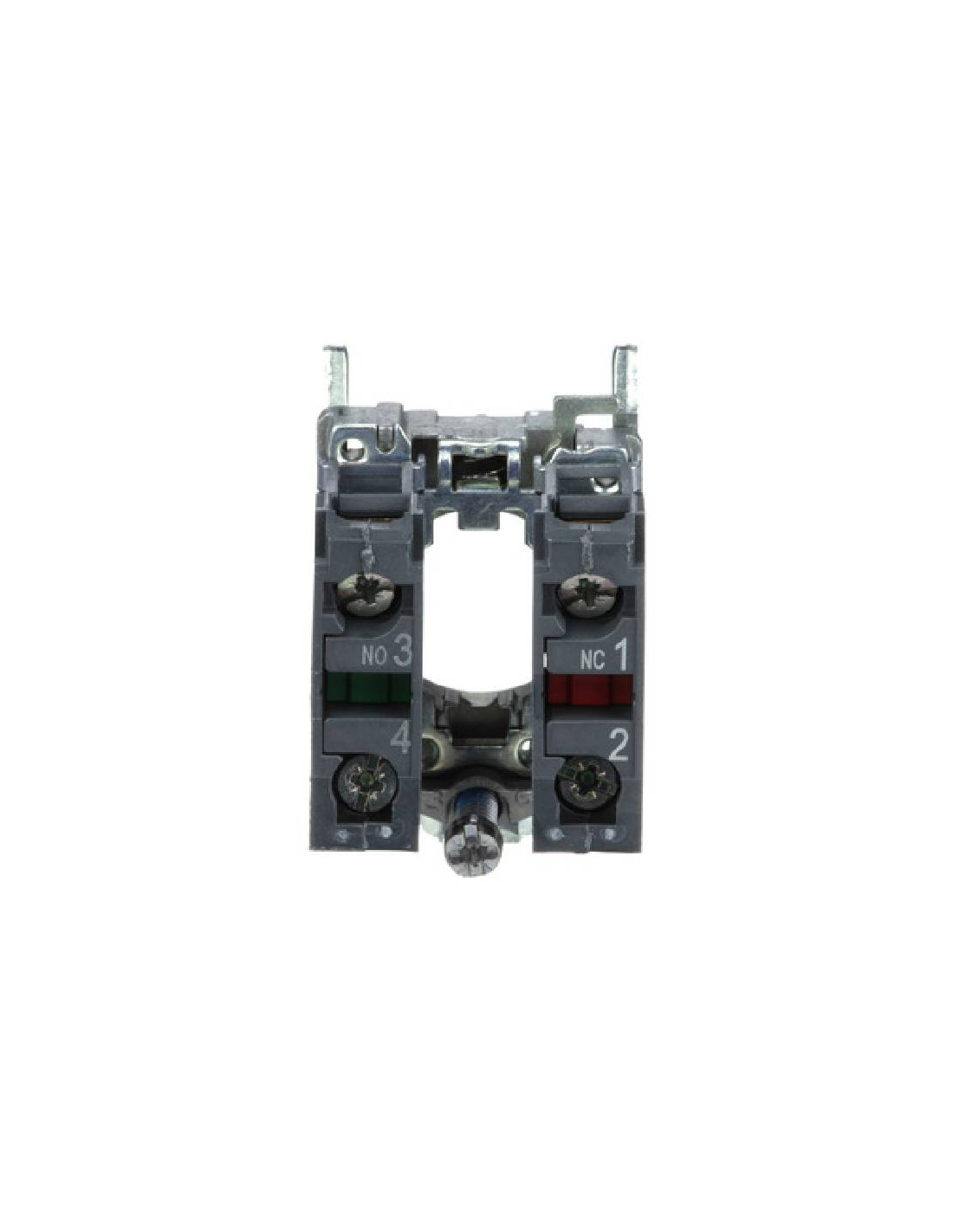

Contacts open and closed contact (1 NO + 1 NC) with fixing collar for mounting on HARMONY XB4 metal series pushbutton and selector heads. It is easily installed or replaced by means of a clip and connected to the control circuits via single screw terminals.

The scope of delivery includes open contact, closed contact and the fixing base for connecting the XB4 heads to the contact blocks.


Part number: ZB4BZ105




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Open contact (1 NO) and closed contact (1 NC) blocks with fixing collar for mounting on 22mm diameter HARMONY XB4 metal series pushbutton and selector heads.

This contact block allows quick and easy replacement and configuration of pushbuttons and selectors. It is easily installed or replaced on Harmony XB4 series units by clip and connects to control circuits via simple screw terminals. It protects operators from inadvertent contact with energized circuits thanks to its IP20 protection rating. Its high resistance reduces maintenance and installation damage. Features a clear color scheme. The screw connection terminals ensure high resistance to vibrations, making it suitable for installation in machines exposed to high impacts.


The delivery includes the complete body: an open contact block (ZBE101), a closed contact block (ZBE102) and plastic base or fixing ring (ZB4BZ009) that allows connecting the XB4 heads with the contact blocks.



Features:

  • Manufacturer: SCHNEIDER
  • Part number: ZB4BZ105
  • Contact type: Open + Closed (1NO + 1NC)
  • Contact operation: Slow breaking
  • Short circuit protection: 10A Cartridge fuse type gG
  • Conventional thermal current: 10A
  • Rated insulation voltage: 600V
  • Peak voltage withstand: 6kV
  • Rated operating current: 3A at 240V, AC-15 / 6A at 120V, AC-15 / 0,1A at 600V, DC-13 / 0,27A at 250V, DC-13 / 0,55A at 125V, DC-13 / 1,2A at 600V, AC-15
  • Mechanical durability: 5000000 cycles
  • Operating temperature: -40...70C
  • Degrees of protection: IP20
  • Terminals: Screw
  • Weight: 0.062kg


Dimensions:






For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
