Branch terminal 1 pole 6x35-240mm² Blue

Name: Branch terminal 1 pole 6x35-240mm² Blue
Brand: TRACON
SKU: FLEAL-240/3K
Price: 55.0792 EUR
Availability: InStock

€55.08 Tax included

€45.52 tax excl.

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 35 to 240 mm ² and aluminum conductors from 35 to 240 mm ² . Color blue

Reference: FLEAL-240/3K

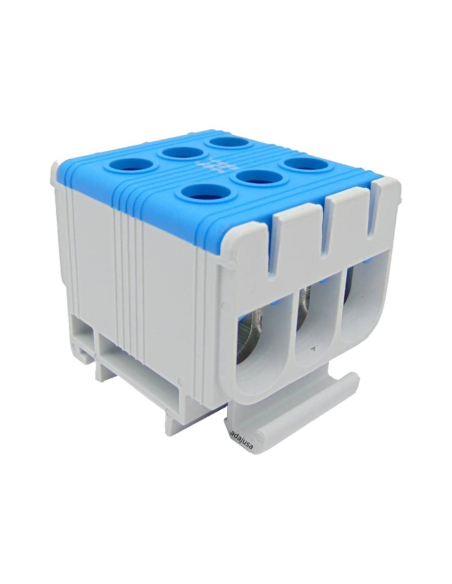

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

1-pole branch terminal for mounting on a 35 mm DIN rail according to EN 60715. Valid for connecting both copper and aluminum conductors. Color blue

Characteristics:

Manufacturer/supplier: Tracon
Reference: FLEAL-240/3K
Rated current: Cu 425A / Al 380A
Maximum cable section: Cu 35 to 240 mm ² / Al 35 to 240 mm ²
Connection points: 6
Mounting: DIN Rail
Terminal material: Tinned aluminum

h: 93mm, b: 67.2mm, t: 130.6mm

Material for professional use, it must be installed by qualified personnel, respecting the regulations in force at the installation site.
