Reduction M50-M40 polyamide black

Name: Reduction M50-M40 polyamide black
Brand: TRACON
SKU: TMSZ-50/40
Price: 1.8392 EUR
Availability: InStock

€1.84 Tax included

€1.52 tax excl.

M50-M40 polyamide reduction with metric thread, black color

Allows the adaptation of M40 metric threaded cable glands to M50 metric threaded bores or threads

Part No.: TMSZ-50/40

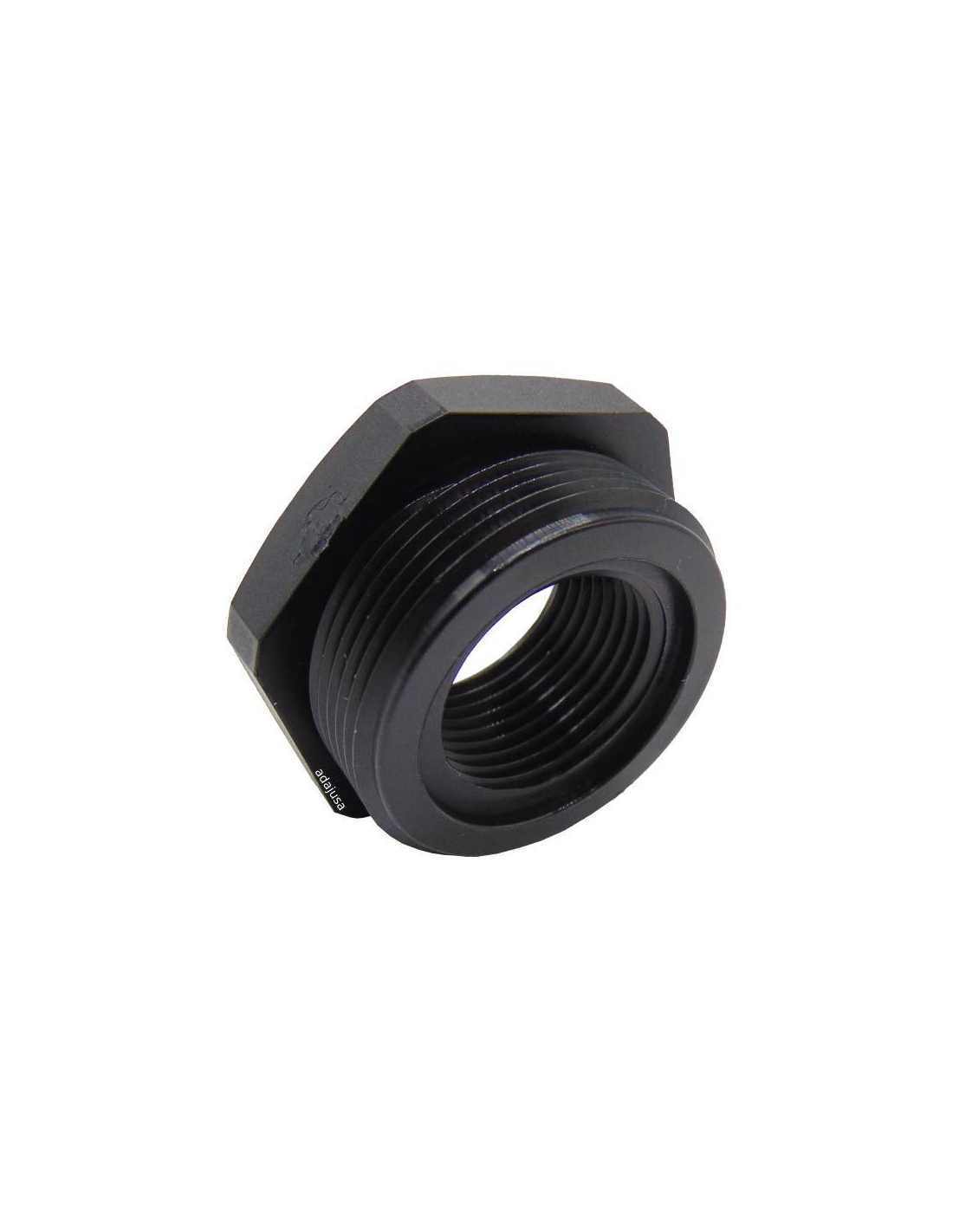

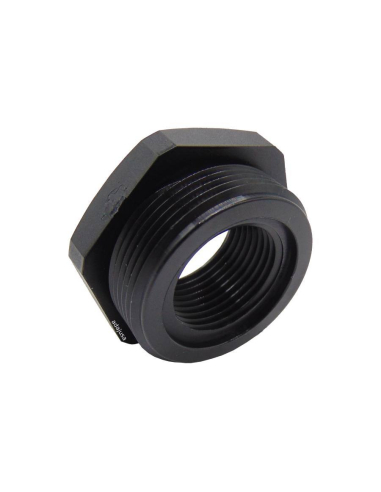

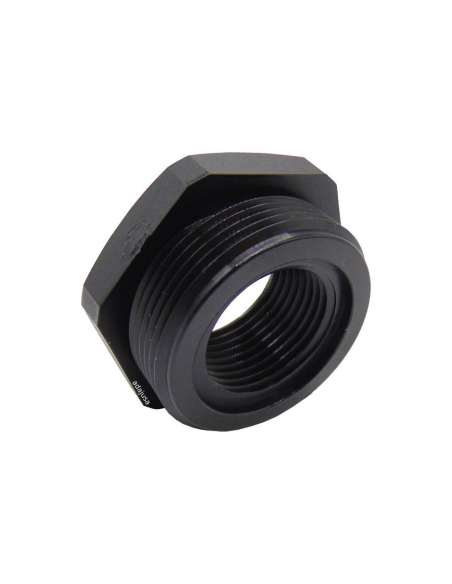

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!

Privacy

Shipments

Returns

Polyamide reduction for adapting M40 metric threaded cable glands to M50 metric bores or threads.

Made of high quality black polyamide. Designed to withstand temperatures between -40oC and 85oC

Features:

Manufacturer/Supplier: Tracon
Part number: TMSZ-50/40
Thread: Metric
Reduction: M50 - M40
Color: Black
Material: Polyamide (PA6.6)
Working temperature: -40ºC to 85ºC
Flame resistance according to UL94: V2
Inner/outer metric standard: EN 60423

Dimensions:

D2: M50 x 1.5
D1: M40 x 1.5
L: 11.5 mm
W: 55 mm

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)
