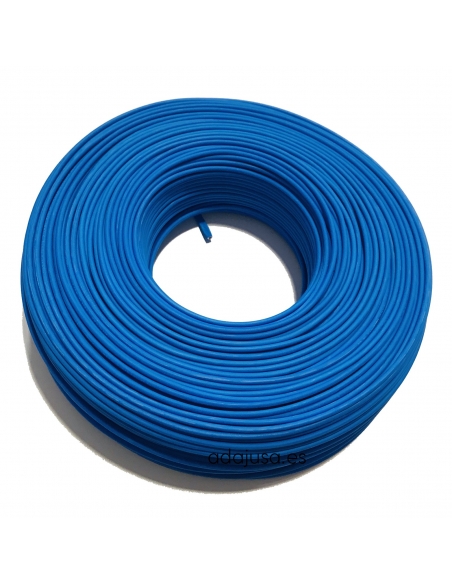

Flexible unipolar cable roll 6 mm2 blue 100m
Flexible unipolar cable roll 6 mm2 blue 100m

Single-pole flexible cable reel 6 mm halogen free blue color 100m

Shipping time: 3 to 5 working days
€131.79 Tax included

€108.92 tax excl.

100m roll of 6mm2 halogen-free, blue section flexible cable, specially designed for internal wiring of electrical cabinets, switch boxes and electrical appliances. Designed under CPR (EN 50575).

  • Series: ToxFree ZH - H07Z1-K (AS).
  • Color: Blue.
  • Section: 6mm2.

logotipo_top_cable

logo_CPR_HQ

No queries yet, leave the first!


6mm2 section unipolar flexible cable, halogen-free, blue. Manufactured by Top Cable. This cable has been specially designed for installations where a flexible cable is required for signalling and control and electrical installations.

The H07Z1-K (AS) series is halogen-free so it can be used in public concurrency facilities, such as: hospitals, schools, museums, airports, bus stations, and shops in general.

Manufactured with CPR compliant design (EN 50575).

Supplied in carton packaging, in 100m rolls.

Technical details:

  • Manufacturer: Top Cable.
  • Series: ToxFree ZH.
  • Type: H07Z1-K (AS).
  • Conductor: electrolitic copper class 5 (flexible) according to UNE-UN 60228.
  • Insulation: Extra-slip, halogen-free, low-smoke, corrosive fume and corrosive gas polyolefin in the event of fire.
  • Nominal section: 6mm2.
  • Color: Blue (RAL 5015).
  • Rated voltage: 450/750V.
  • Voltage drop (V/A x km): 7.92.
  • Thermal Features:
    • Temp. driver's maximum: 70oC.
    • Temp. maximum short-circuit: 160oC (maximum 5 seconds).
  • Features against fire:
    • Non-flame propagator according to UNE-EN 60332-1 and IEC 60332-1.
    • CPR Fire Ratio: E according to EN 50575.
  • Outside diameter: 4.6mm.
  • Radius of curvature: 5 x exsterior diameter.
  • Resistant to acceptable chemical attacks.
  • Presence of water: AD3 spray.
  • Installation conditions: tubing.
  • Design: According to CPR standard (EN 50575).
  • Reference standard: UNE-EN 50525-2-31 / IEC 60227-3
  • ITC and certifications: ITC: 9/20/26/27/29/30/31/34 CE SEC HAR AENOR RoHS Certificates.
  • Applications:
    • Wiring in electrical cuados.
    • Housing intresses.
    • Public concurrency premises.
  • Packaging: Cardboard box with 100m roll.
  • Weight: 6.2 kg.
