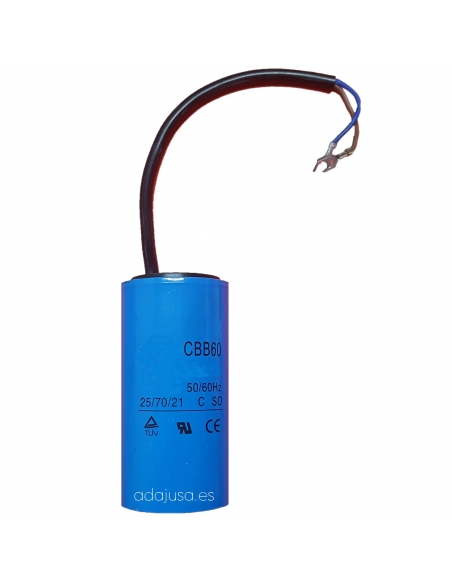

Starter capacitor 600uF 250Vac

Ctarter capacitor for single-phase electric motors, non-polarized electrolytic type, with PVC sheath and connection via electric hose.

The application of this type of capacitor is the starting of single-phase electric motors, providing the necessary torque to the single-phase motor for its start. They are non-polarized aluminum electrolytic capacitors for intermittent operation in starting circuits of single-phase electric motors. They should not be used for any other application, nor be used in permanent operation as run capacitors.

Technical characteristics:

• Manufacturer/Supplier: Open
• Reference: CD60-F 600uF 250Vac
• Application: Ctarter capacitor .
• Type: Non-polarized electrolytic.
• Capacity: 600uF.
• Maximum nominal voltage: 250Vac.
• Working temperature range: -25ºC..+55ºC.
• Nominal tolerance: 0..+30%.
• Dissipation factor (20ºC, 120Hz): Tg δ ≤ 0.15.
• Connection type: Electrical Hose with terminals.
• Dimensions:

This type of capacitor is for professional use and cannot be used as a permanent capacitor (run capacitor), as this will cause deterioration. It must be installed inside the motor terminal box, and in accordance with the regulations in force at the place of installation.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Professional use material, install in compliance with the regulations in force at the place of installation.
