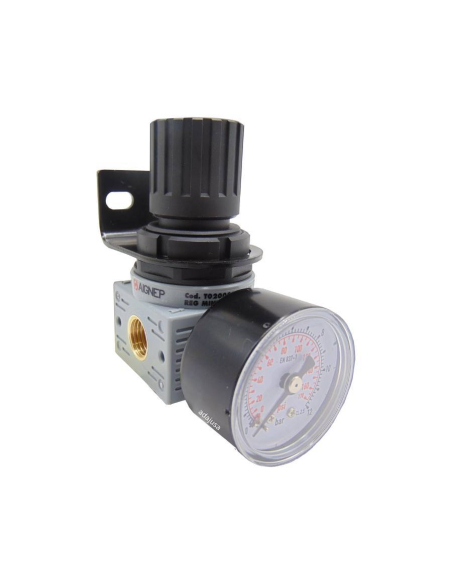

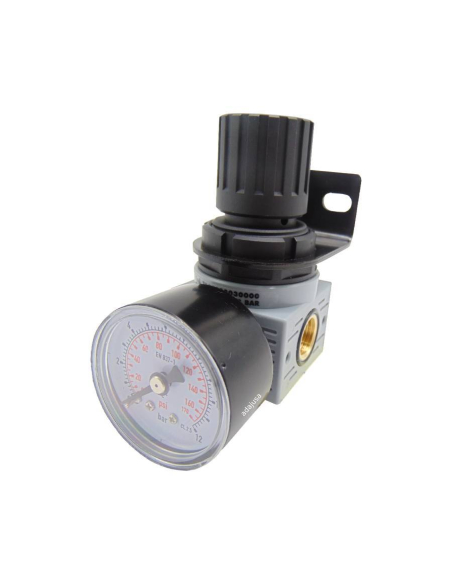

Regulator pressure 1/4 0-8 bar complete FRL MINI series - Aignep

€27.02 Tax included

22.15 tax excl.

PK-T020003030000

Regulator 1/4 fullpressure, with regulation between 0-8 bar, technopolymer body and metal endings, extreme reliability. Allows stability of the outlet pressure at the preset pressure.

Series: FRL MINI
Reference: PK-T020003030000

Simbolo neumático regulador de presión

Logotipo Aignep
Pictogramas normativa grupos filtraje FRL Mini Aignep Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Regulator 1/4 fullpressure regulator, regulation 0-8 bar, body made of high resistance technopolymer, and with metallic terminations. Allows stability of the outlet pressure to the preset pressure starting from an equal or higher inlet pressure. Possibility of fixing by means of lateral holes.

Delivery includes:

  • Regulator pressure gauge 1/4
  • Pressure gauge 1/8
  • Squad fixing 1/8 - 1/4

Technical characteristics of the regulator:

  • Manufacturer: Aignep
  • Part number: T020003030000
  • Threaded connection size: 1/8"
  • Regulating range: 0-8 bar
  • Maximum inlet pressure: 15 bar
  • Flow rate at 6 bar (∆P 1 bar): 600 Nl/min
  • Fluid: Filtered air, lubricated or unlubricated.
  • Wall fixing screws: M3 (not included)
  • Pressure gauge connection: 1/8"
  • Temperature: -10ºCto +50ºC
  • Reference standard: PED 2014/68/EU


Dimensiones regulador de presion FRL Mini Aignep Adajusa
Cotas regulador de presión FRL mini Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"
