Valve cutting step 3/8 female 3-way - Metal Work

Name: Valve cutting step 3/8 female 3-way - Metal Work
Brand: Metal Work
SKU: W0970050003
Price: 14.9816 EUR
Availability: InStock

€14.98 Tax included

€12.28 tax excl.

3/8 female step valve (cut),discharged (3-way).

Logotipo Metal Work
Reference: W0970050003

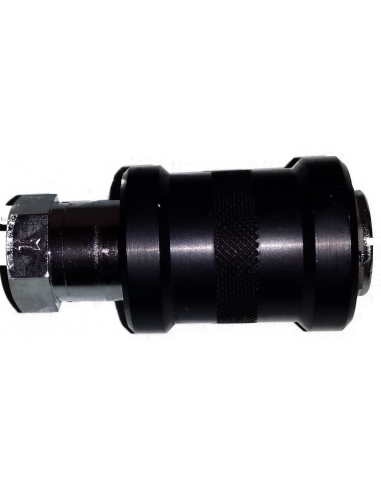

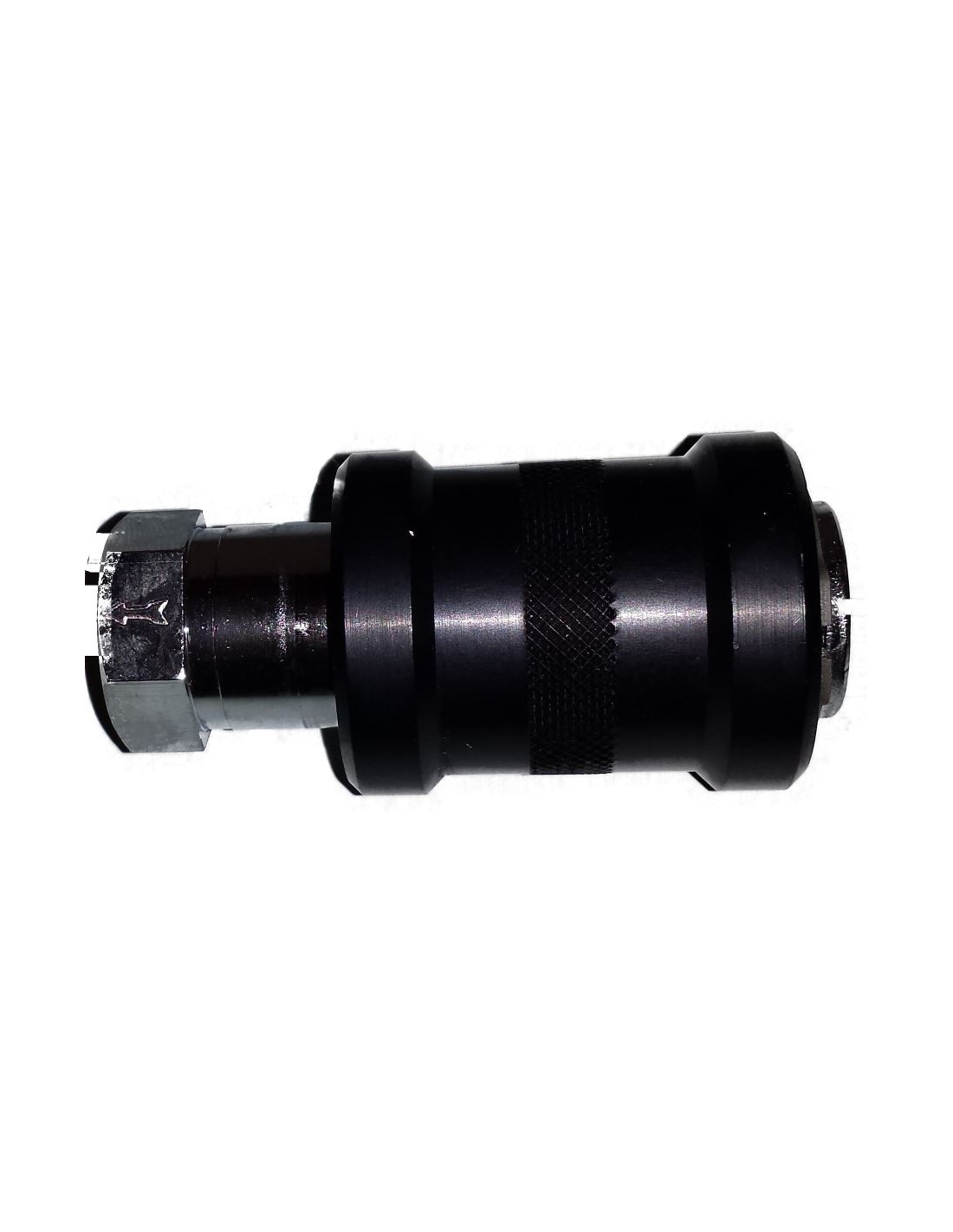

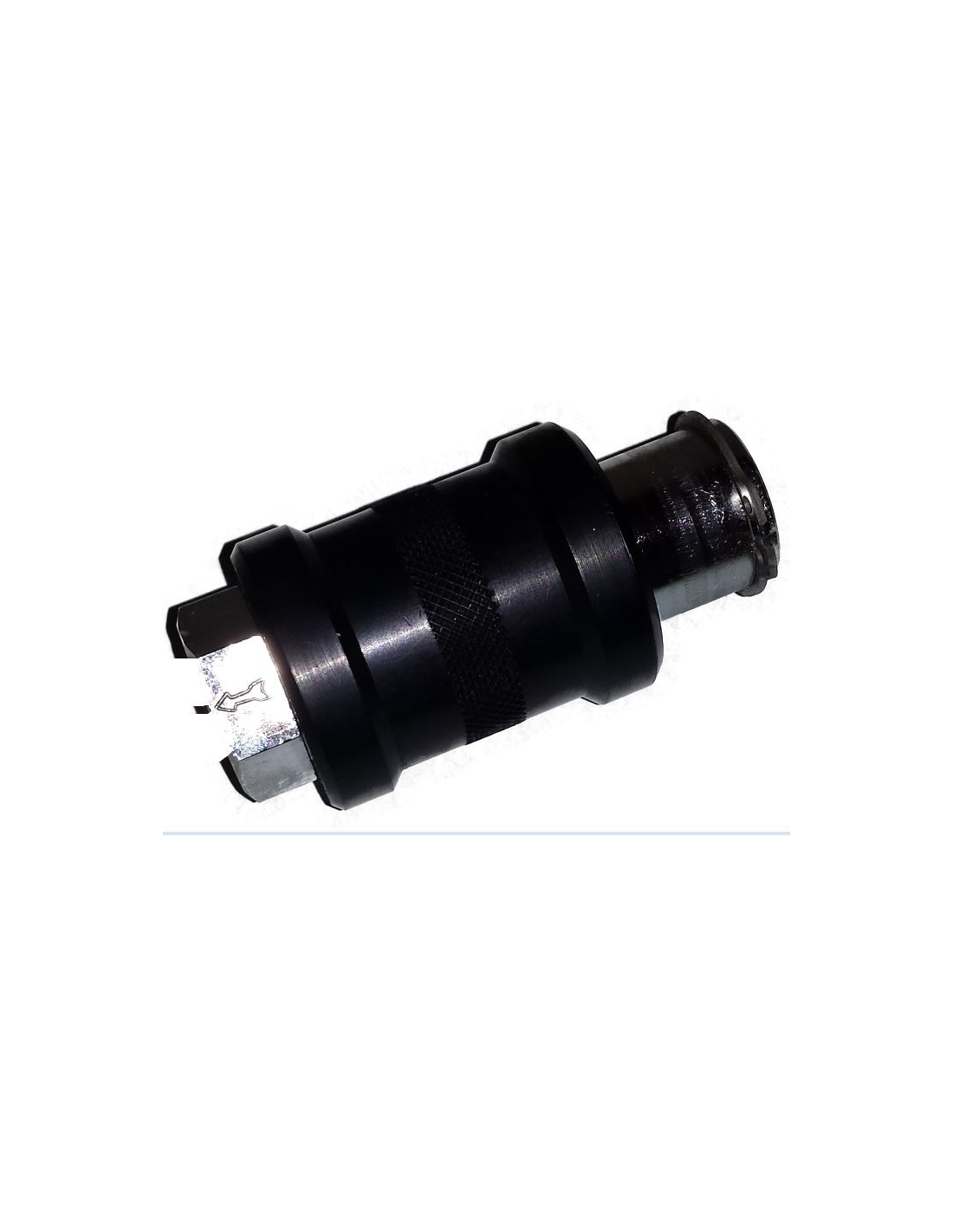

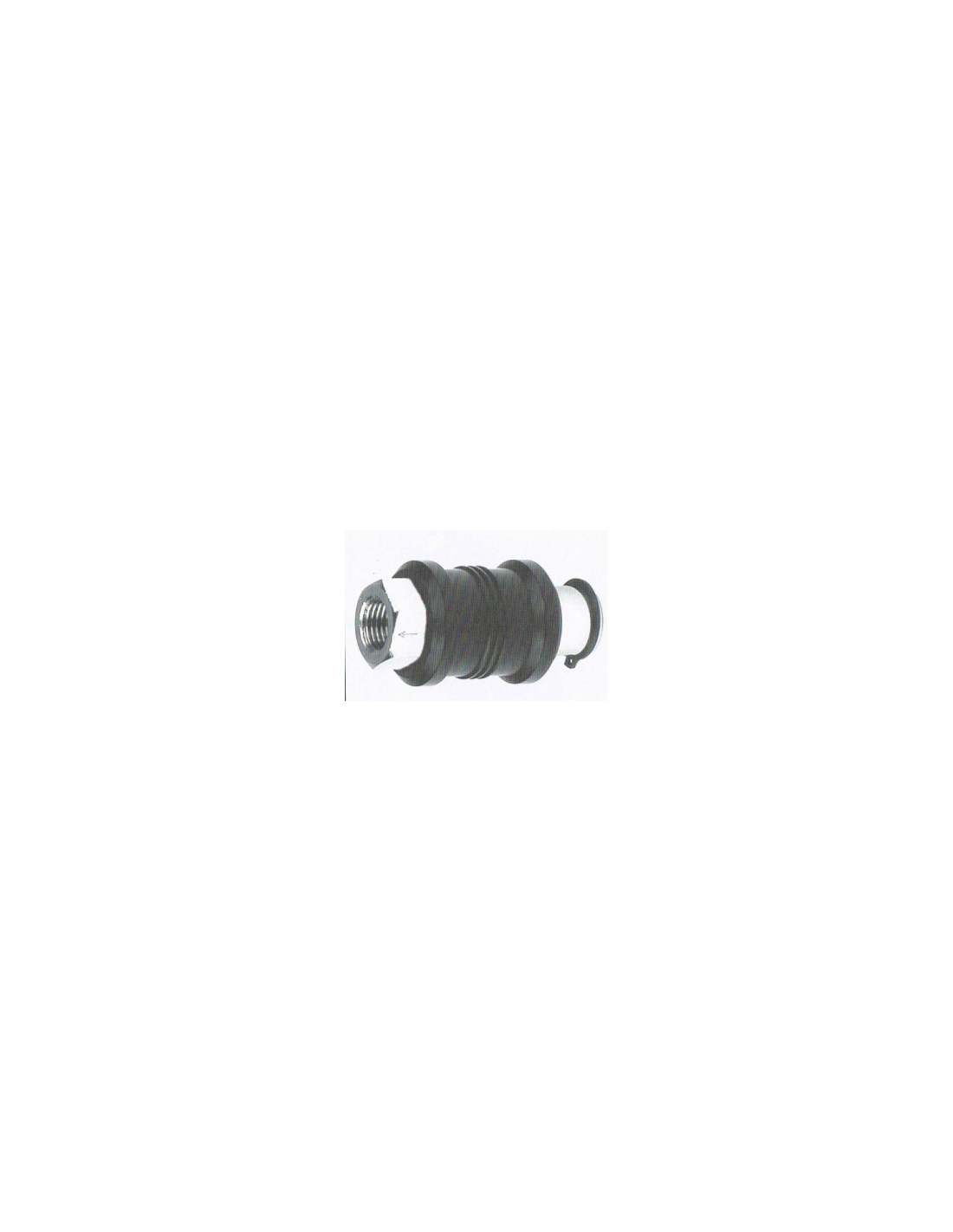

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

3/8 female step (cut) valve, with discharge (3-way), frequently used as a circuit disconnector valve.

By pushing back the ring, the air supply is interrupted and the circuit is discharged, when the ring advances air supply to the circuit is established.

Manufacturer: Metal Work
Manufacturer reference: W0970050003 series VCS-3/8.
Operating pressure: 0 ÷ 10 bar (0 ÷ 1 MPa)
Operating temperature °C: –10 ÷ 80
Fluid: Filtered air with or without lubrication
Flow rate at 6.3 bar (0.63 Mpa ÷ 91 psi) ∆P 0.5 bar Nl/min: 430
Flow rate at 6.3 bar (0.63 Mpa ÷ 91psi) ∆P 1bar Nl/min: 630
Conductance C Nl/min · bar: 170
Critical ratio b bar/ba: 0.2

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
