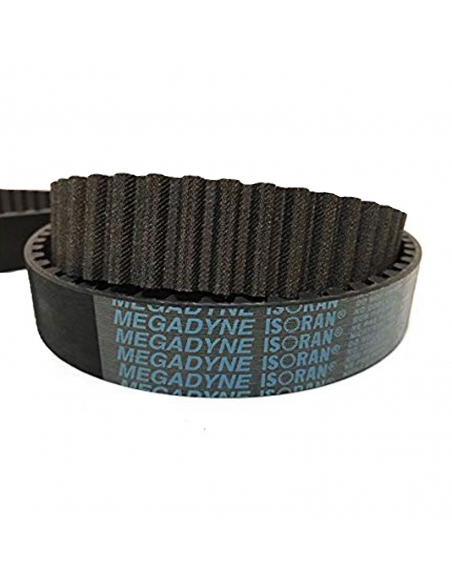

GOLD CX 112 LINE Snated Trapecial Strap - MEGADYNE
GOLD CX 112 LINE Snated Trapecial Strap - MEGADYNE

GOLD CX 112 LINE Snated Trapecial Strap - MEGADYNE

€94.60 Tax included

€78.18 tax excl.

GOLD LINE snant V-belt type of profile "CX" 22x14mm, with an internal development length of Li-2881mm,for power transmission in industrial machinery, agricultural machinery and gardening applications. Careful design and manufacture with an EPDM rubber compound that can chemically withstand harsh environments, aging, ozone, UV and heat.

  • Ref: LINE GOLD CX112
  • Megadyne Part number: 020711240017 / 20361240017
  • Interior development length (Li): 2881mm
  • Primitive development length (Lw): 2924mm
  • Outer length (Le - La): 2950mm

tipo-CX



No queries yet, leave the first!


Gold line V-belt, with profile section type "CX" of 22x14mm and with an internal development of 2881mm, specially designed for maximum performance in a wide range of industrial applications, agricultural machinery and gardening.

Manufactured with high quality raw materials to provide straps with high performance, low stretch and very resistant to wear. Careful design and manufacture with an EPDM rubber compound that can chemically withstand harsh environments, aging, ozone, UV and heat.

They are also lubricant resistant and with a wide temperature range (-30oC to +80oC).

Manufactured according to REACH regulations and tolerances according to ISO 4184

composicion-correas-dentadas

Technical details:

  • Manufacturer: MEGADYNE.
  • Series: GOLD Line.
  • Reference: CX 112.
  • Part number: 020711240017 / 20361240017
  • Type: Classic section "BX".
  • Interior development length (Li): 2881mm.
  • Primitive development length (Lw): 2924mm.
  • Outer length (Le - La): 2950mm.
  • Section dimensions 22x14mm.
  • Lubrication resistant: SI.
  • Temperature range: -30oC to +80oC.
  • Tolerance: according to ISO 4184
  • Weight: 0.94Kg



Material de uso profesional, instalar respetando las normativas vigentes en el lugar de la instalación.
