Differential MCB circuit breaker 25A 300mA Class AC - Tracon

Name: Differential MCB circuit breaker 25A 300mA Class AC - Tracon
Brand: TRACON
SKU: KVKM-25/300
Price: 31.7504 EUR
Availability: PreOrder

€31.75 Tax included

€26.24 tax excl.

Differential MCB circuit breaker 25A 300mA (0.3A) Class AC, Pole + Neutral , class C trip curve, 6kA breaking capacity. This device combines the differential and thermal-magnetic functions in a single element for the protection of people and lines. The use of these elements simplifies the connection and saves space in the distribution board.

Reference: KVKM-25/300

Class AC

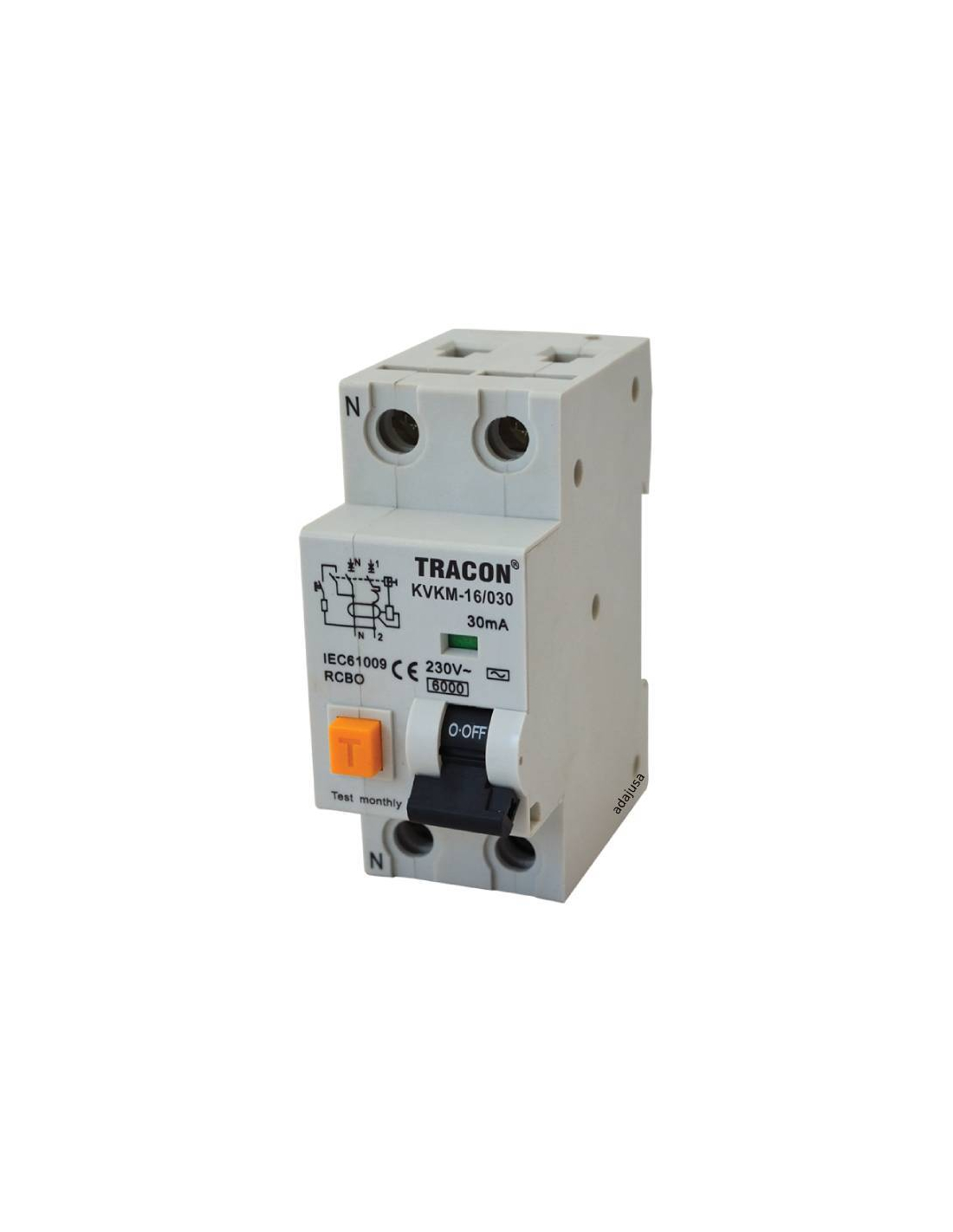

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

MCB circuit breaker and differential integrated in the same element, Pole + Neutral. This modular device, 2 modules wide, perfectly integrates a differential and a circuit breaker, allowing for savings in space and connection time.

The differential is highly sensitive 300mA (0.3A) non-adjustable. The protection of the circuit breaker is on one phase, cutting off the phase and the neutral in case of tripping (Pole+Neutral). The trip curve of the circuit breaker is "C", breaking power of 6kA.

Made of molded and fire-retardant thermoplastic material.

Characteristics:

Manufacturer/Importer: Tracon
Model: KVKM-25/300
Component type: differential magnetothermal
Number of poles: Pole + Neutral
Class: AC
Type: electromagnetic
Operating voltage (Ue): 230Vac, 50/60Hz
Rated insulation voltage (Ui): 690Vac
Rated impulse withstand voltage (Uimp): 4kV
Rated current (In): 25A
Sensitivity (IΔn): 300mA (0.3A)
Breaking capacity : 6kA
Electrical life: > 4000 cycles
Mechanical life: > 20000 cycles
Operating temperature: -25ºC to +55ºC
Protection grade: IP20
Conductor section: 1.5 - 10mm²
Allows the use of pin-type connection combs
Supports the assembly of auxiliary elements
Sealable in OFF position

Dimensions:

Material for professional use, install in compliance with the regulations in force at the installation site.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Anexo instruções utilização elec

Download (414.22KB)

Annexe mode d'emploi elec.

Download (410.39KB)

Annex instructions for use elec.

Download (410.3KB)

Allegato istruzioni l'uso elec

Download (406.25KB)

Anhang Gebrauchsanweisung elec

Download (412.12KB)
