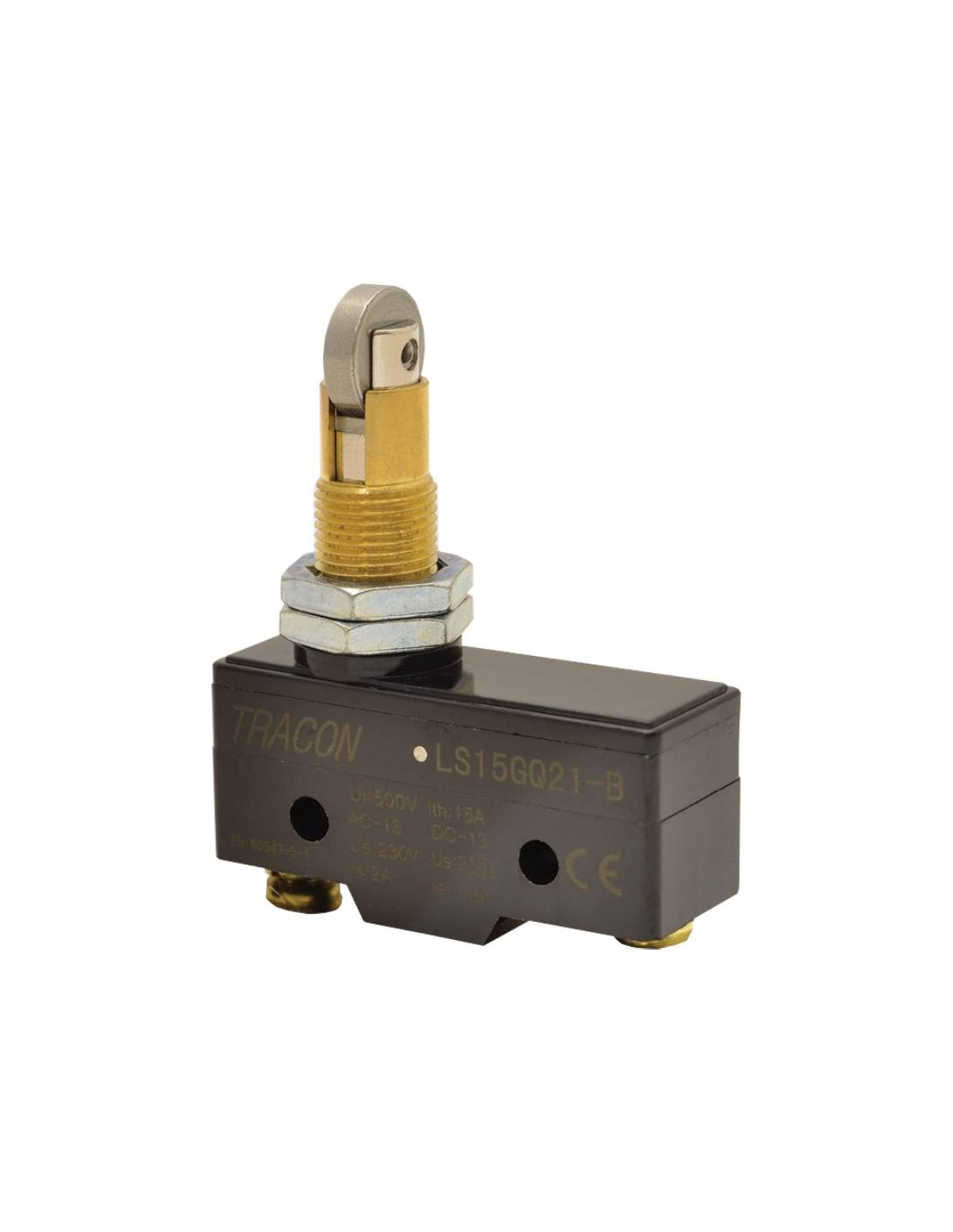

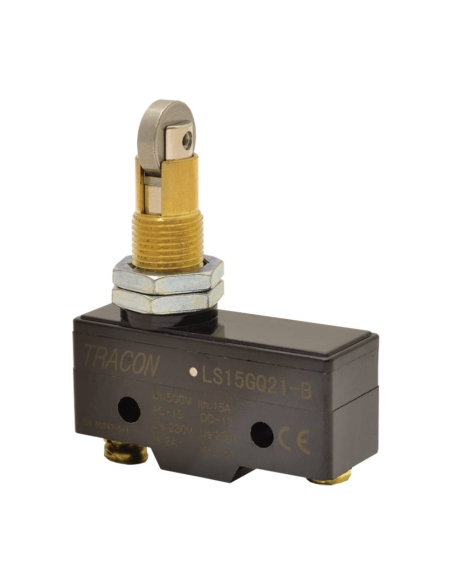

Cross roller limit switch (microswitch microswitch) Series LS15

€6.59 Tax included

5.4 tax excl.

LS15GQ21-B

Limit switch operated by means of crossed metal roller (microswitch microswitch), 1 changeover contact (NO/NC). High load capacity.


Part number: LS15GQ21-B


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Actuating limit switch by means of crossed metal roller, 1 change-over contact (NO/NC). High load capacity. Lateral fixing by means of screws, electrical connection by means of threaded nuts. Possibility of adding protection cover (not included).



Operating travel (mm):




Technical characteristics

  • Manufacturer/Supplier: TRACON
  • Part number: LS15GQ21-B
  • Actuator type: High piston with crossed metallic pulley
  • Rated thermal current: 15A
  • Rated current: 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated voltage of isolation: 500V
  • Electrical contact: 1 Switched (NO/NC)
  • Material: Plastic
  • Connection cable: 0.5 - 1.5mm2
  • Mechanical life: 1x106 cycles
  • Ambient operating temperature: -25oC to +55oC
  • Degree of protection: IP00
  • Standard: EN 60947-1, EN 60947-5-1



Dimensions:






Material for professional use, must be installed in compliance with the regulations in force at the place of installation

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Electric pedal with protection cover 06v0000007 PCI-00 Aignep: ADAJUSA : price
limit switch - position detectors - electric pedals - sensors

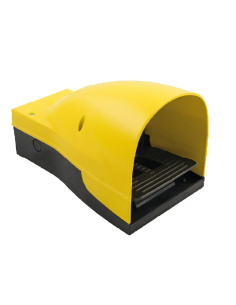

Electric pedal with protection cover - Aignep

Aignep
06V0000007
€38.37 (€31.45 tax excl.)
Electric pedal monostable, for general and industrial use, with protection cover and NO/NC electrical contact. Immediate action: it remains activated only while pressure is applied with the foot, returning to its initial position when released. Made of high resistance thermoplastic, ideal for machines requiring momentary control. Yellow color for maximum...

16 other products in the same category:

Pushbutton microswitch MZS1308 piston with threaded head roller - Giovenzana
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1308 piston with threaded head roller - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1308
€9.66 (€7.92 tax excl.)
Piston-operated microswitch with roller, threaded head, 1 changeover contact (NO/NC). High load capacity and sudden rupture. Manufactured under strict European regulations. Equipped with a type of shot that ensure a high degree of precision. Fast and reliable standalone switching suitable for use in industrial and general purpose applications....
MFI.4 Giovenzana Series Micro Breaker - adajusa
limit switch - position detectors - electric pedals - sensors

MFI series long lever micro breaker.4

Giovenzana Internacional B.V.
GI-MFI.4
€2.98 (€2.44 tax excl.)
Micro long lever drive switch. 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with self-cleaning contacts and a type of fire that ensure a high degree of precision. Fast and reliable switching independent of the drive speed. Reference: MFI.4 Representative image for...
View
Pushbutton microswitch MZS1306 short piston - Giovenzana
limit switch - position detectors - electric pedals - sensors

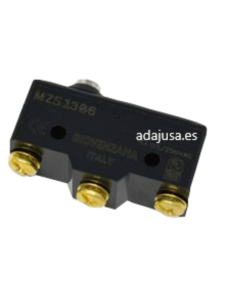

Pushbutton microswitch MZS1306 short piston - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1306
€6.69 (€5.48 tax excl.)
Short piston drive microswitch, 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with a type of shot that ensure a high degree of precision. Independent fast and reliable switching suitable for use in industrial and general purpose applications. Reference: MZS1306
pushbutton microswitch MZS1318
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1318 panel mount cross roller piston - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1318
€9.66 (€7.92 tax excl.)
Piston-operated microswitch with crossed roller, threaded head, 1 changeover contact (NO/NC). High load capacity and sudden rupture. Manufactured under strict European regulations. Equipped with a type of shot that ensure a high degree of precision. Fast and reliable standalone switching suitable for use in industrial and general purpose applications....
MZS1300 Giovenzana Microswitch - adajusa
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1300 fine push button - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1300
€6.12 (€5.02 tax excl.)
Microswitch actuated by a fine and short pushbutton, without any actuator. 1 switched contact (NO/NC). High load capacity and sudden break. Manufactured under strict European regulations. Equipped with a type of shot that ensures a high degree of precision. Fast and reliable independent switching suitable for use in industrial and general purpose...
Pushbutton microswitch MZS1307 adajusa.es
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1307 threaded head piston - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1307
€8.42 (€6.90 tax excl.)
Threaded head piston actuated microswitch, 1 changeover contact (NO/NC). High load capacity and sudden rupture. Manufactured under strict European regulations. Equipped with a type of shot that ensure a high degree of precision. Fast and reliable standalone switching suitable for use in industrial and general purpose applications. Reference: MZS1307
MZS1303 Giovenzana Microswitch - adajusa
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1303 lever with wheel - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1303
€7.34 (€6.02 tax excl.)
Lever actuated microswitch with wheel, 1 changeover contact (NO/NC). High load capacity and sudden rupture. Manufactured under strict European regulations. Equipped with a type of shot that ensure a high degree of precision. Fast and reliable standalone switching suitable for use in industrial and general purpose applications. Reference: MZS1303

Customers who bought this product also bought:

Giovenzana MFI Series MicroSwitch - adajusa
limit switch - position detectors - electric pedals - sensors

MFI series pushbutton microswitch

Giovenzana Internacional B.V.
GI-MFI
€2.87 (€2.35 tax excl.)
Micro pushbutton drive switch, without any speakers. 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with self-cleaning contacts and a type of fire that ensure a high degree of precision. Fast and reliable switching independent of the drive speed. Reference: MFI...
Three-phase 3-pole contactor with 32A coil 230Vac | ADAJUSA | price Three-phase 3-pole contactor with 32A coil 230Vac | ADAJUSA | price 2
Contactors 3 poles coil 230Vac

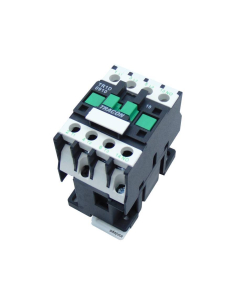

Three-phase contactor 32A 230Vac open auxiliary contact NA TR1D Series
