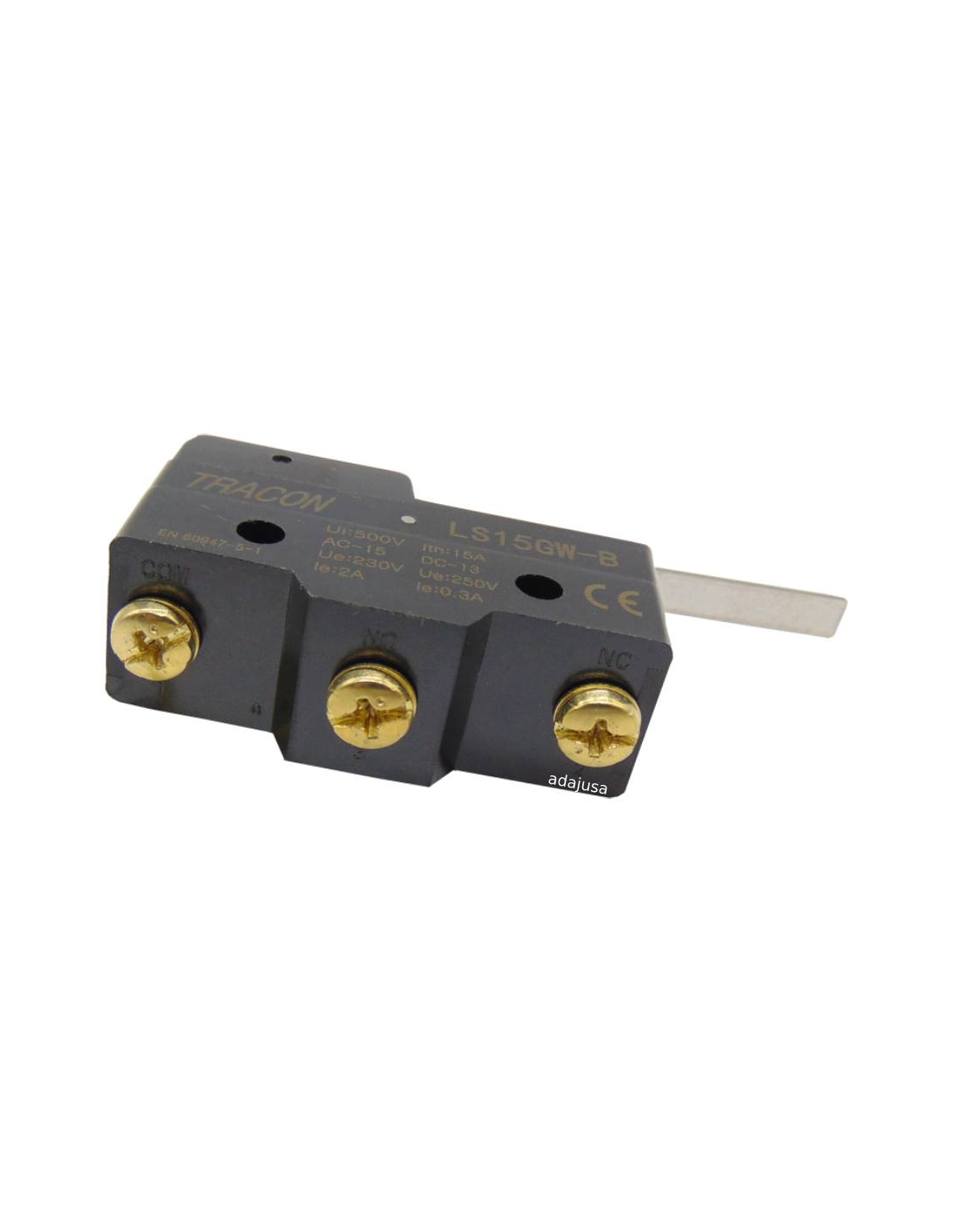

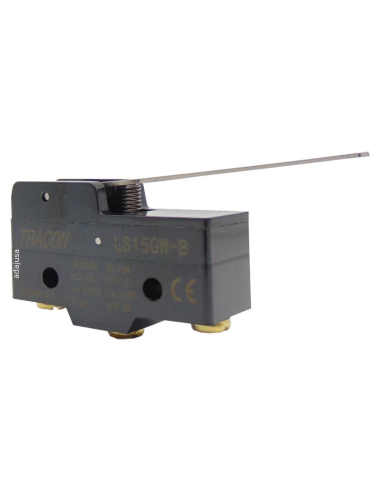

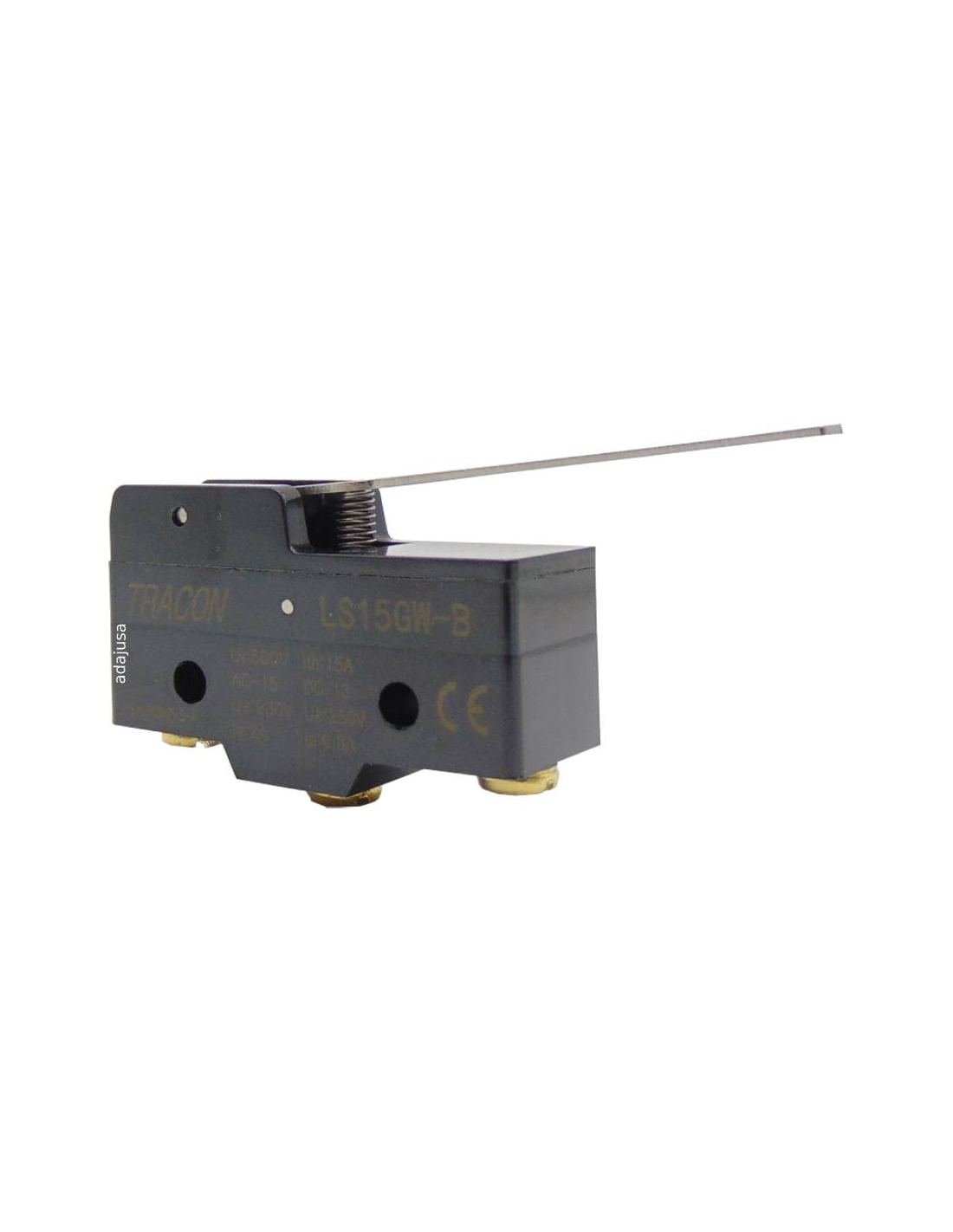

Long lever limit switch (microswitch microswitch) LS15 Series

€5.16 Tax included

€4.23 tax excl.

Long lever-operated limit switch (microswitch microswitch), 1 CO (NO/NC). High load capacity.


Part number: LS15GW-B


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Limit switch operated by long lever, 1 change-over contact (NO/NC). High load capacity. Lateral fixing by means of screws, electrical connection by means of threaded nuts. Possibility of adding protection cover (not included).



Operating travel (mm):




Technical characteristics

  • Manufacturer/Supplier: TRACON
  • Part number: LS15GW-B
  • Actuator type: Long lever
  • Rated thermal current: 15A
  • Rated current: 5A AC1 230V / 2A AC15 230V / 0.3A DC13 250V
  • Rated voltage of isolation: 500V
  • Electrical contact: 1 Switched (NO/NC)
  • Material: Plastic
  • Connection cable: 0.5 - 1.5mm2
  • Mechanical life: 1x106 cycles
  • Ambient operating temperature: -25oC to +55oC
  • Degree of protection: IP00
  • Standard: EN 60947-1, EN 60947-5-1



Dimensions:






Material for professional use, must be installed in compliance with the regulations in force at the place of installation
