Direct mounting terminal 1.5-16mm2, 5mm plate | ADAJUSA

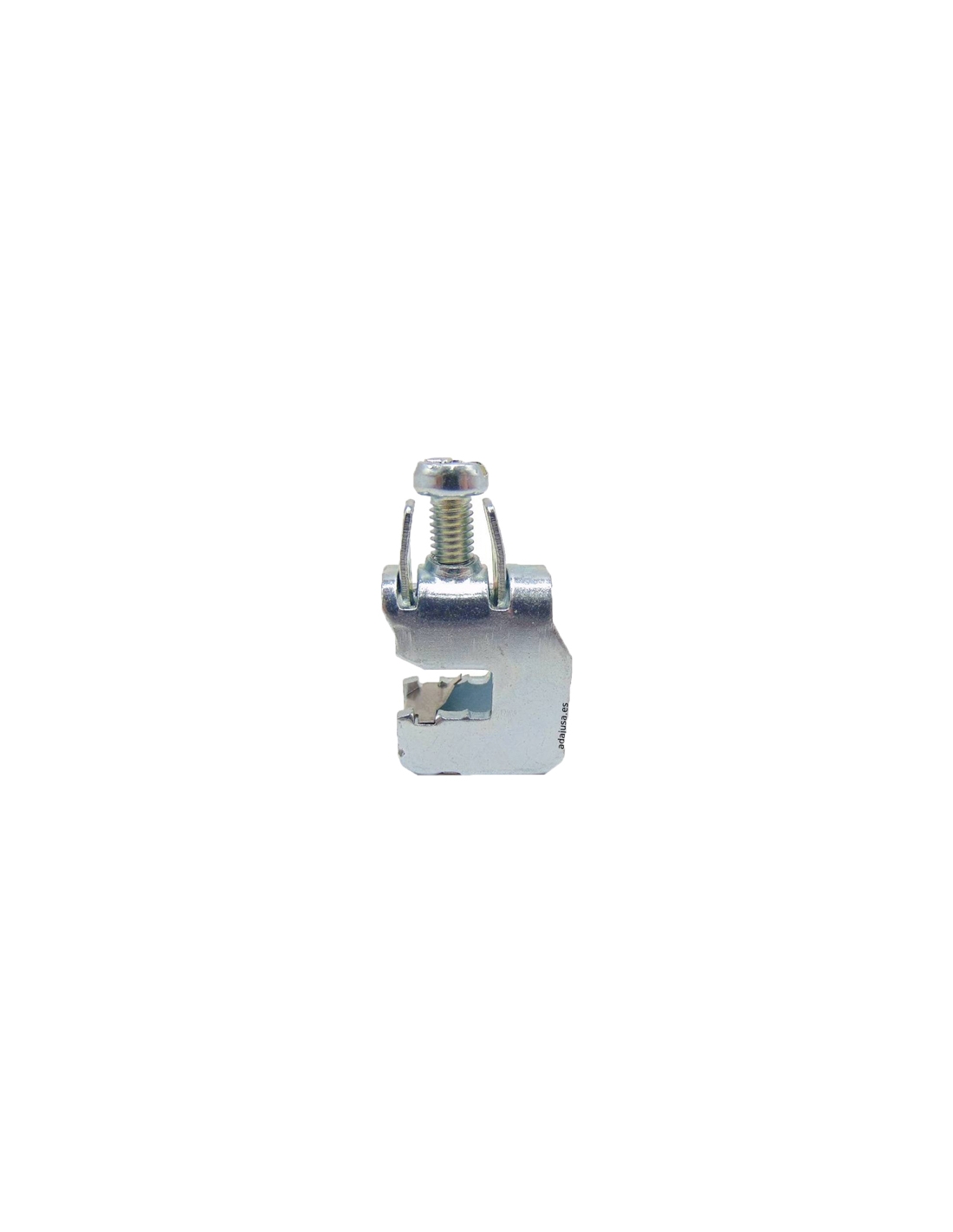

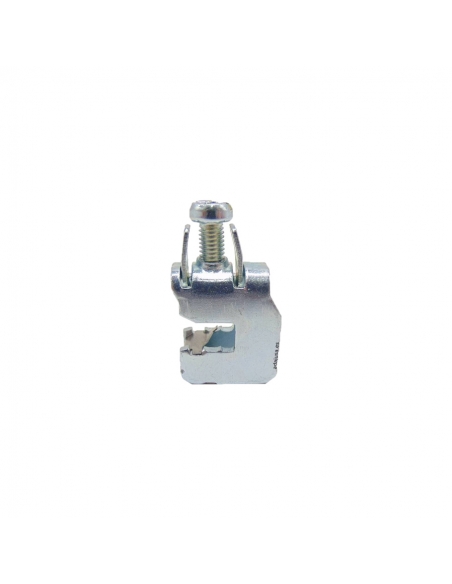

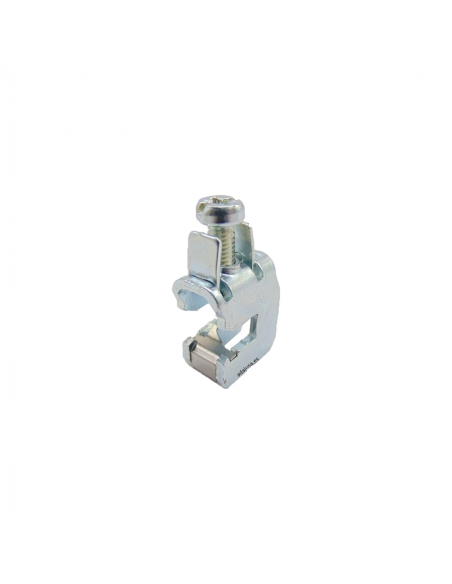

Direct mounting terminal 1.5-16mm2 plate thickness 5mm

Name: Direct mounting terminal 1.5-16mm2 plate thickness 5mm
Brand: XBS
SKU: SZK16F5
Price: 1.0164 EUR
Availability: InStock

€1.02 Tax included

€0.84 tax excl.

Direct mounting terminal on copper plate for cables with a section of 1.5-16mm ² . Mounting plate thickness 5mm.

Reference: SZK16F5

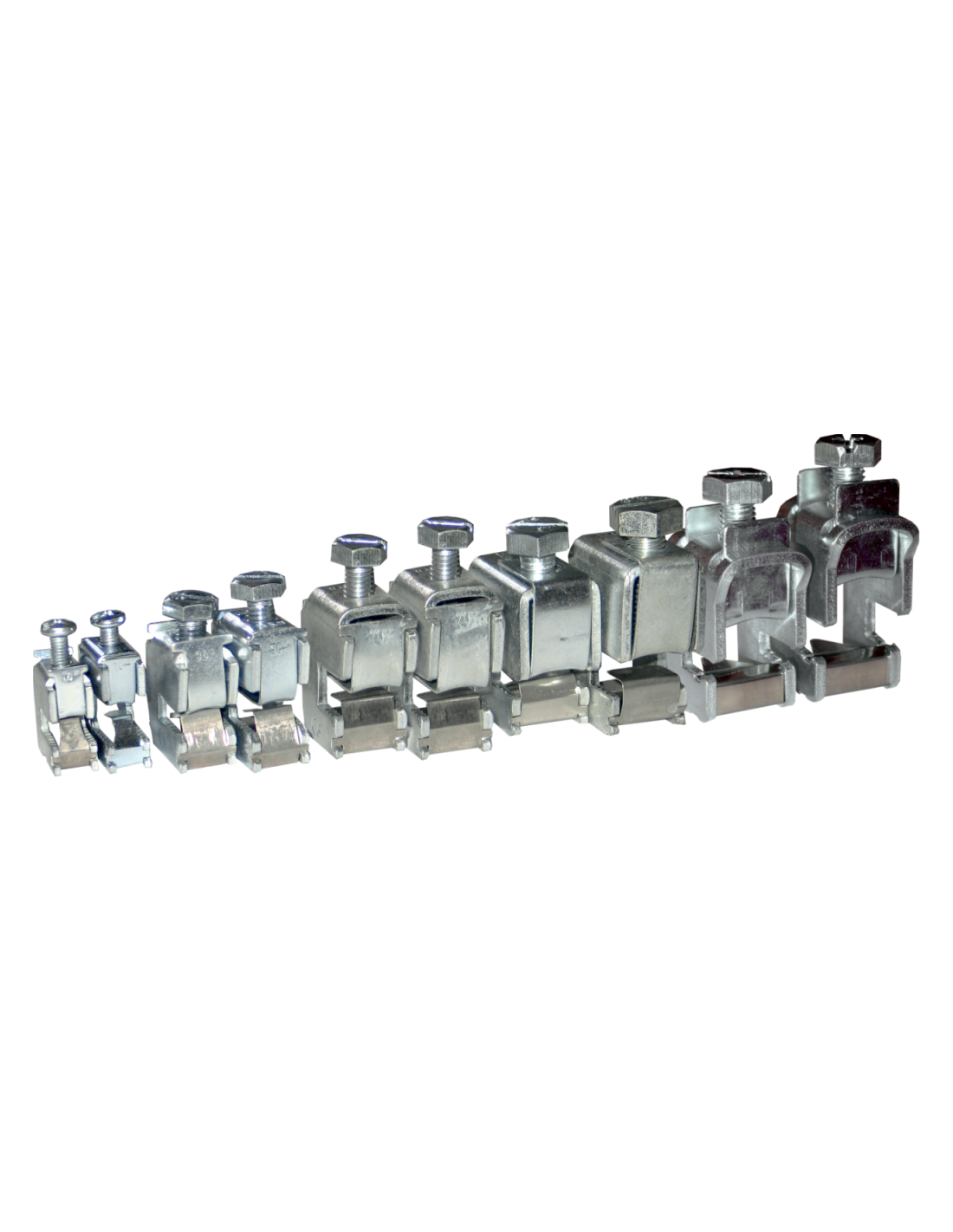

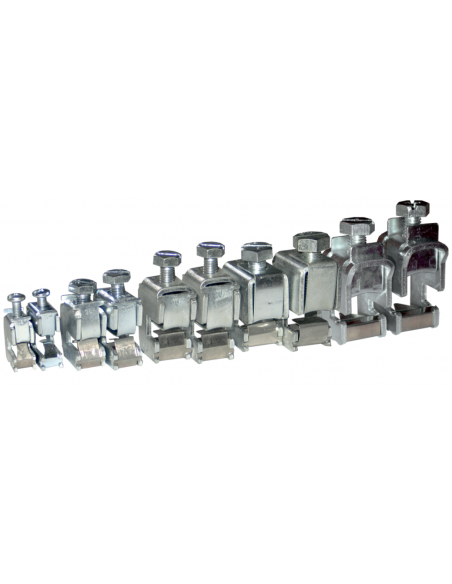

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Direct mounting terminal on 5mm thick copper plates, for flexible and rigid cables with a section between 1.5-16mm ² . Mounting with quick clamp type coupling. Made of high quality steel, free of Chrome VI. Solution for a simple and robust installation.

Easy and safe mounting on the plate thanks to the great tightening force provided by the screw, avoiding torsion thanks to its patented "Twist-Stop" mechanism and guaranteeing a fixed assembly after installation.

Characteristic:

Manufacturer/Supplier: XBS /Mixvil
Reference: SZK16F5
Wire section: ^1.5-16mm2
Allowable current: 98A
Mounting: 5mm thick plate
Standard: EN 60999
Material: High quality steel
Spring: Stainless steel

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)
