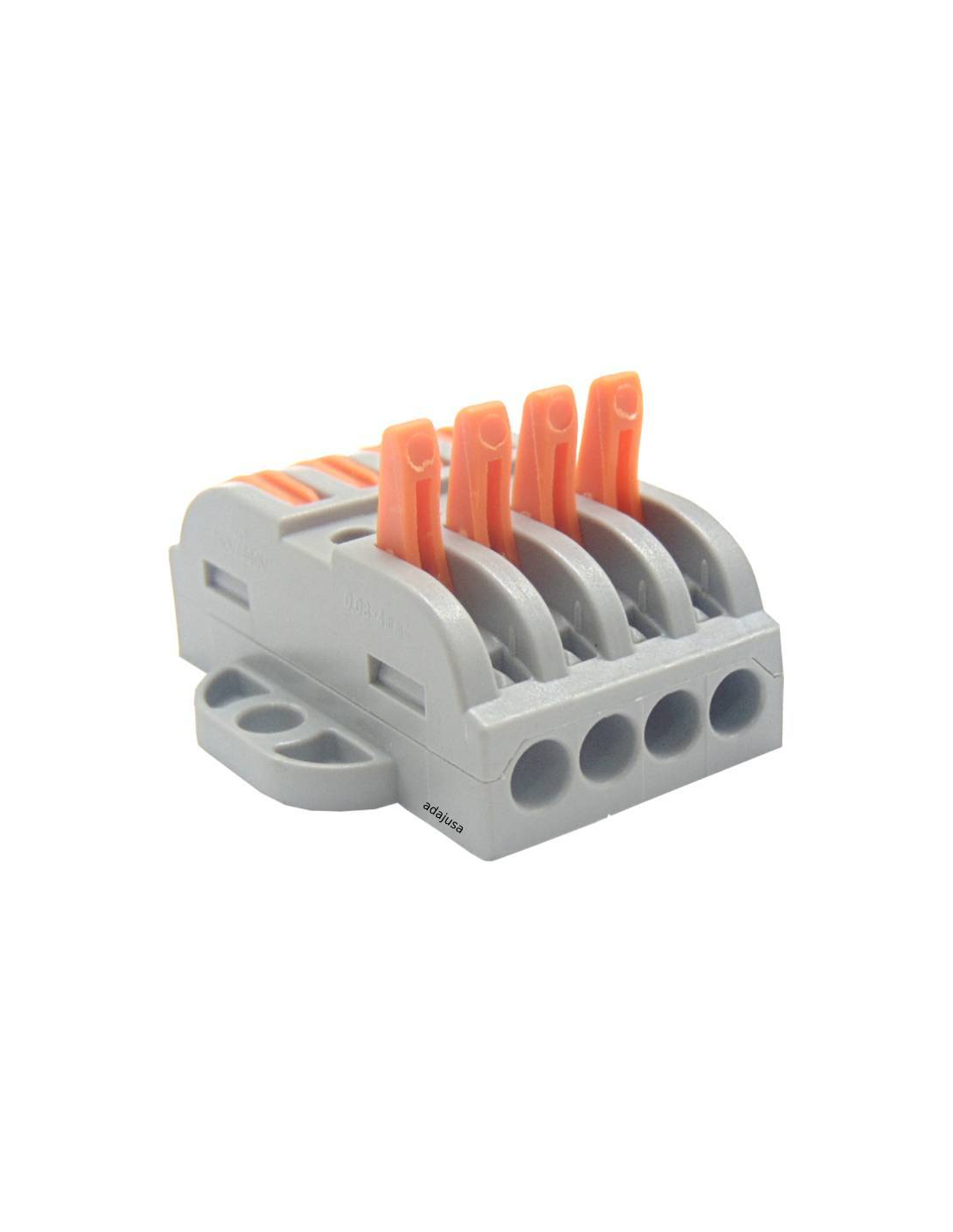

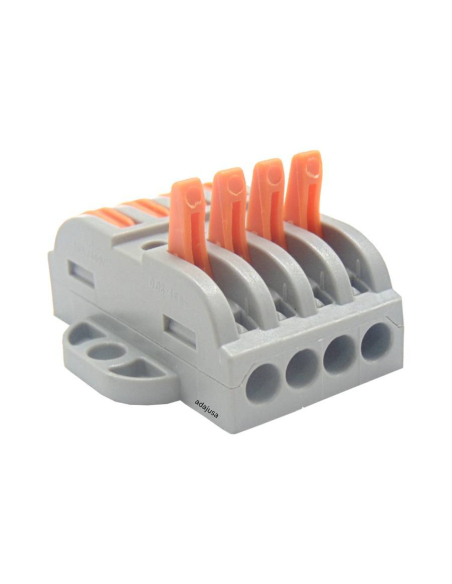

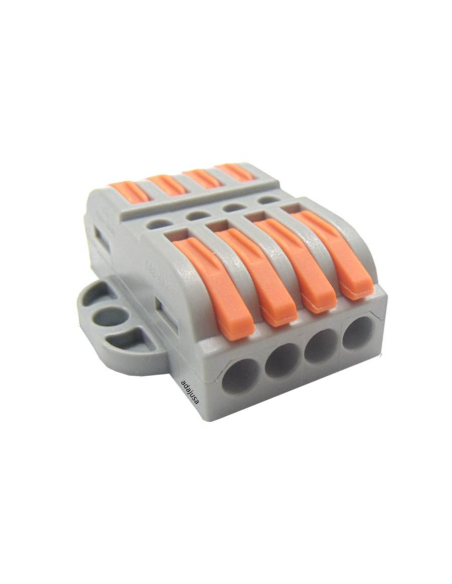

Double quick connection terminal 32A 4- pole

Double quick connection terminal 32A 4- pole

Name: Double quick connection terminal 32A 4- pole
Brand: TRACON
SKU: OVOFT44
Price: 1.342 EUR
Availability: InStock

€1.34 Tax included

€1.10 tax excl.

Pole quick-connect 32A, 400Vac 4- double terminal for conductors from 0.5 to ^4mm2. Screwless quick connection ensures a simple and safe electrical connection.

Part number: OVOFT44

Representative image for illustrative purposes, the item supplied will correspond to the specifications shown

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Double 4-pole quick connection terminal 32A 400Vac, for rigid and flexible conductors with cross-section between 0.5 - ^4mm2. Screwless quick connection by means of a push-in system that allows easy connection and disconnection of the conductor.

Its connection system allows the terminal to be reusable as many times as necessary. Ideal for secure electrical connections, they guarantee an optimal termination without the need for tools while speeding up installation. Compact size.

Features

Manufacturer/Supplier: Tracon
Product reference: OVOFT44
Conductor cross section: 0.5 - 4mm²
Rated current: 32A
Rated voltage: 400V
Number of poles: 4
Insulation material: Polycarbonate (PC)
Material of contact: Tin-plated electrolytic copper
Flammability class of insulation material according to UL94: V0
Operating temperature: ^-10oCto ^+55oC
Degree of protection: IP20

Dimensions:

L: 39.3mm; W:35.3mm; H: 14.5mm

Material for professional use, install in compliance with the regulations in force at the place of installation .
