Quick connection terminal 3 poles 0,2-4mm

€0.35 Tax included

0.29 tax excl.

RVOG3

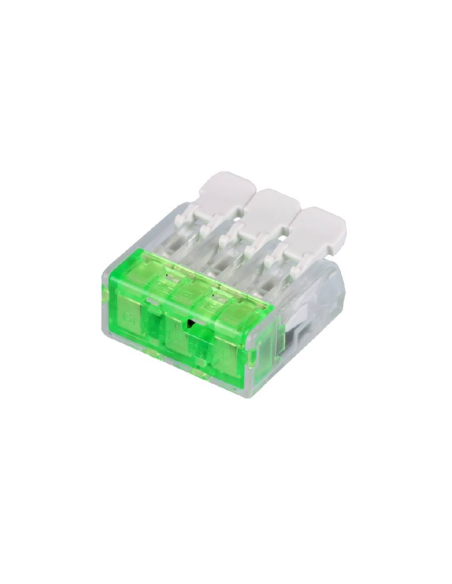

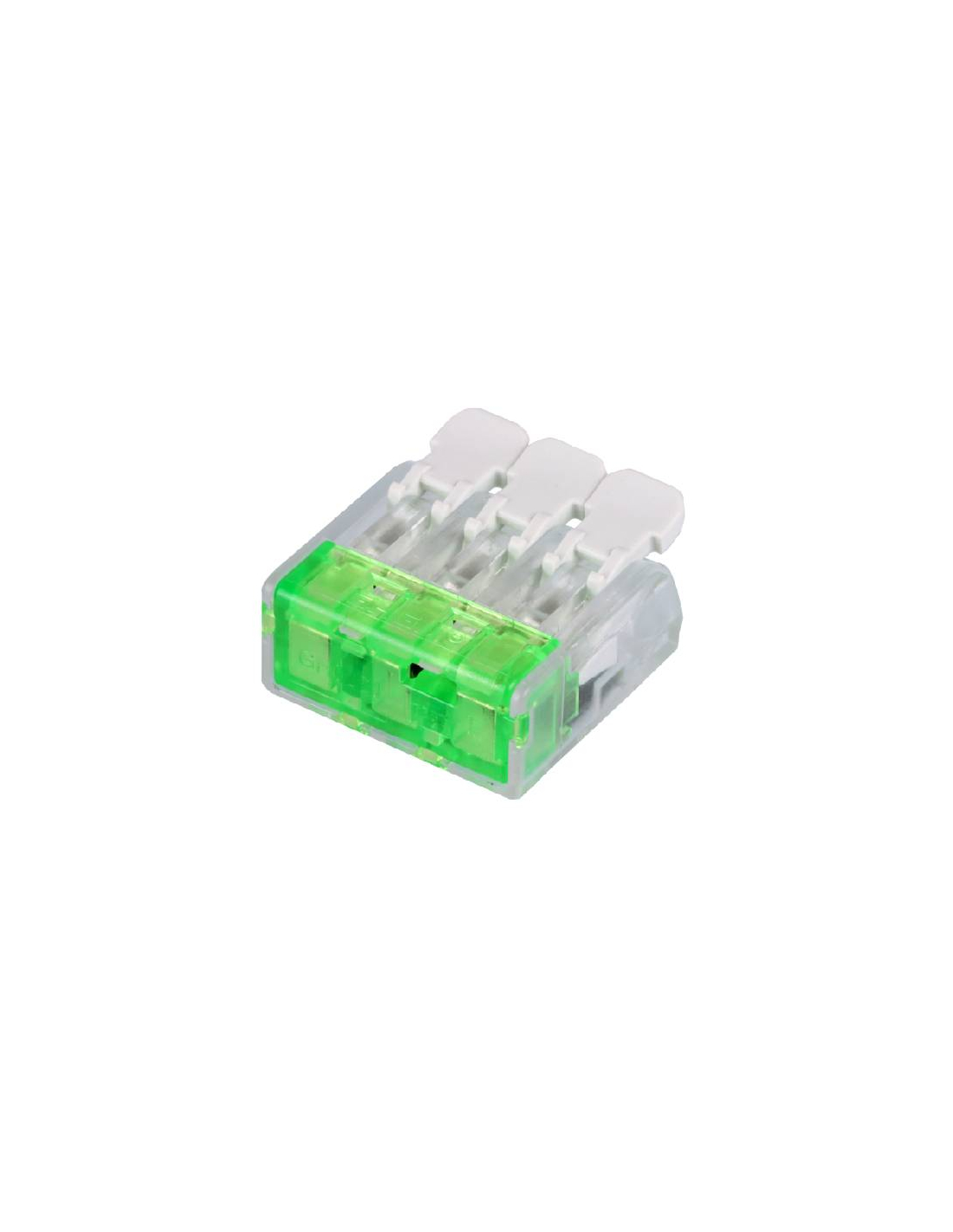

3-pole quick connection terminal 32A, 450Vac for conductors from 0.2 to 4mm2. Screwless quick connection that guarantees a simple and safe electrical connection. Reusable system.

Part number: RVOG3


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!
Privacy
Shipments
Returns

3 pole quick connection terminal 32A 450Vac, for rigid and flexible conductors with cross-section between 0.2 - 4mm2. Screwless quick connection by means of a push-in system that allows easy connection and disconnection of the conductor.

Its connection system allows the terminal to be reusable as many times as necessary. Ideal for secure electrical connections, they guarantee an optimal termination without the need for tools while speeding up installation. Compact size.



Features
  • Manufacturer/Supplier: Tracon
  • Part number: RVOG3
  • Conductor cross-section: 0.2 - 4mm²
  • Rated current: 32A
  • Rated voltage: 450V
  • Number of poles: 3
  • Insulation material: PC (Polycarbonate)
  • Contact material: Tin-plated electrolytic copper
  • Operating temperature: -10oCto +85oC
  • Dimensions: 18.8 x 20.1 x 9.2 mm (L x W x H)
  • Degree of protection: IP20






Material for professional use, install in compliance with the regulations in force at the place of installation.
