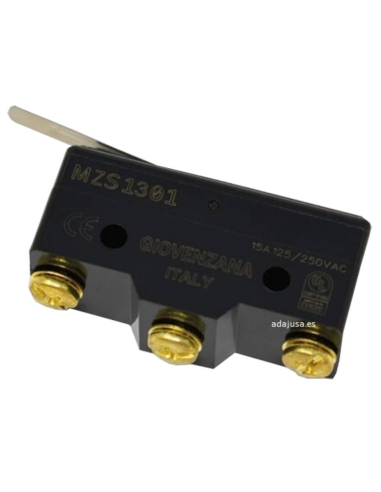

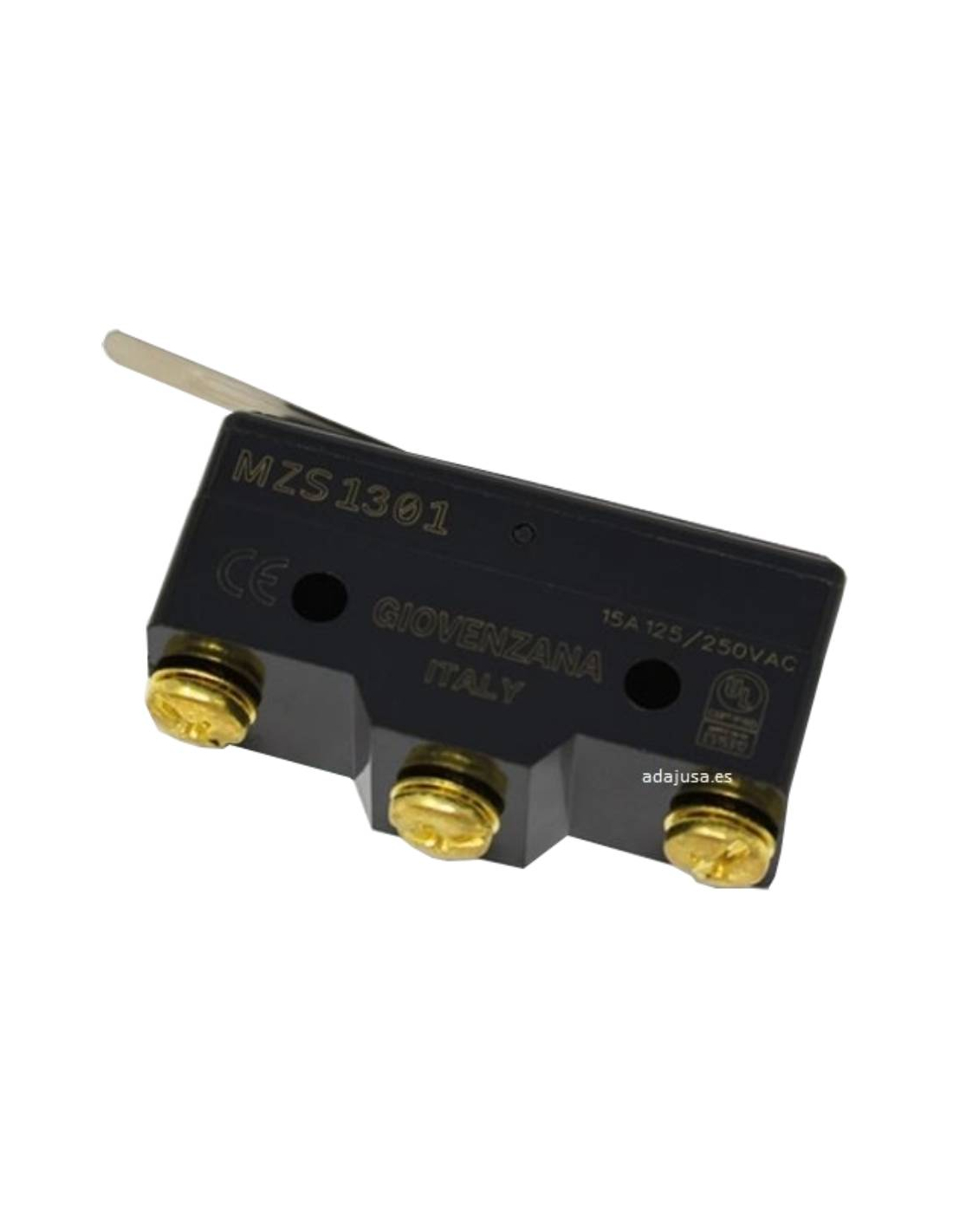

Pushbutton microswitch MZS1301 lever - Giovenzana

€5.70 Tax included

€4.71 tax excl.

Lever drive microswitch, 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations.

Equipped with a type of shot that ensure a high degree of precision. Independent fast and reliable switching suitable for use in industrial and general purpose applications.

Reference: MZS1301

esquema contacto conmutado 2Nomativa CE y UL

Logotipo Giovenzana

No queries yet, leave the first!


Lever operated microswitch, 1 changeover contact (NO / NC). High load capacity and sudden rupture. Manufactured by the European company Giovenzana under strict European regulations.

Equipped with contacts with a trigger type that ensure a high degree of precision. Fast and reliable switching. They provide a high degree of precision in repetitions which makes them very suitable for industrial and general application uses.

Technical characteristics:

  • Manufacturer / Distributor: Giovenzana
  • Reference: MZS1301
  • Actuator type: Lever
  • Electrical contact: Switched (NO / NC)
  • Thermal intensity (Ith)
    • according to EN 61058-1: 20 (4) A 250Vac
    • according to UL 61058-1:
      • 15A 125 / 250Vac
      • 0.5A 125Vdc
      • 0.25A 250Vdc
  • Insulation voltage (Ui): 250V
  • Maximum contact resistance: 15mΩ (initial)
  • Minimum insulation resistance: 100MΩ (@ 500Vdc)
  • Connection type: Screw terminals
  • Mechanical life: greater than 1,000,000 cycles
  • Mechanical life: greater than 100,000 cycles
  • Temperature range: 0ºC to + 55ºC
  • Degree of protection: IP00, with accessories IP40
  • Compliant with standards: IEC / EN61058, UL61058
  • Approvals: CE, UL

Dimensions:

General MZS microswitches dimensions Giovenzana adajusa
