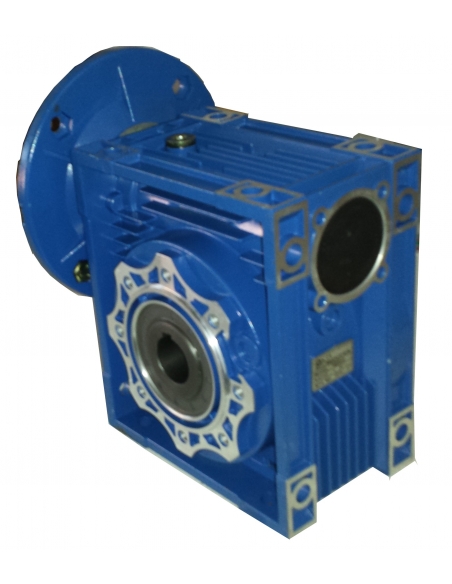

Endless crown reducer Size 63 Flange PAM 200/24 - Motor housing 90 B5

€144.48 Tax included

118.43 tax excl.

YDSEG6390B515

With hollow output shaft of Ø25mm, and input flange PAM 200/24 (Ø Ext 200mm and Ø Input shaft 24mm) type B5, suitable for motors with housing size 90.

Reduction ratios: 10-15-20-25-30.

The powers of the usual engines at 1500 rpm are:

  • 1.5CV Max. net. i=30.
  • 2CV Max. net. i=20.


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Reduction ratio
  • 10
  • 15
  • 20
  • 25
  • 30

1 question about the product
Privacy
Shipments
Returns


Endless reducer crown of size 63, compact execution and high performance, with hollow output shaft of Ø25mm and input shaft of Ø24mm.

This reducer size supports B5 flange motors size 90, this flange size has an outer Ø of 200mm and the reducer has an inlet shaft diameter of 24mm., PAM 200/24.

Dimensiones brida entrada reductor sinfin corona

  • P: 200mm.
  • M: 165mm.
  • N: 130mm.
  • D: Ø24mm.

The powers of the motors at 1500 rpm usually used for this type of reducers and with higher service factor fs≥1 are:

  • 1.5CV 1500rpm. Maximum reduction I = 30.
  • 2CV 1500rpm. Maximum reduction I = 20.

The reduction ratios (i) available are from 10 to 30, depending on the input revolutions we can obtain the following revolutions on the output axis shown in the following table.

Tabla de revoluciones de salida reductores

Dimensiones reductores tamaño 63

You can download all the dimensions of the reducer by clicking on the "ATTACHMENTS" tab.

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
que rendimiento tiene esta reductora?
Answer
Estimado cleinte,

El fabricante recomienda que para motores de 1,1 KW / 1,5 CV  la relación máxima de reducción sea de 1/30 obteniendo un factor de servicio de 1,69,  con un motor de 1500 rpm  el resultado final sería de 45 rpm.
Para motores de 1,5KW /2 CV la relación máxima sería 1/20 el factor de servicio es 1,63, para un motor de 1500 rpm el resultado será de 68 rpm.
Estos datos dependen de las condiciones de uso, tipo de carga al que sean sometidos, número de arranque por hora, número de horas de funcionamiento.   Para aumentar el factor de servicio, manteniendo la potencia del motor y relación de reducción, la única posibilidad es aumentar el tamaño del reductor para que los piñones sean más grandes, hay que tener presente que la brida PAM sea  igual que la del motor.

No obstante, verifique que cumple con sus especificaciones.

Saludos
ADAJUSA
