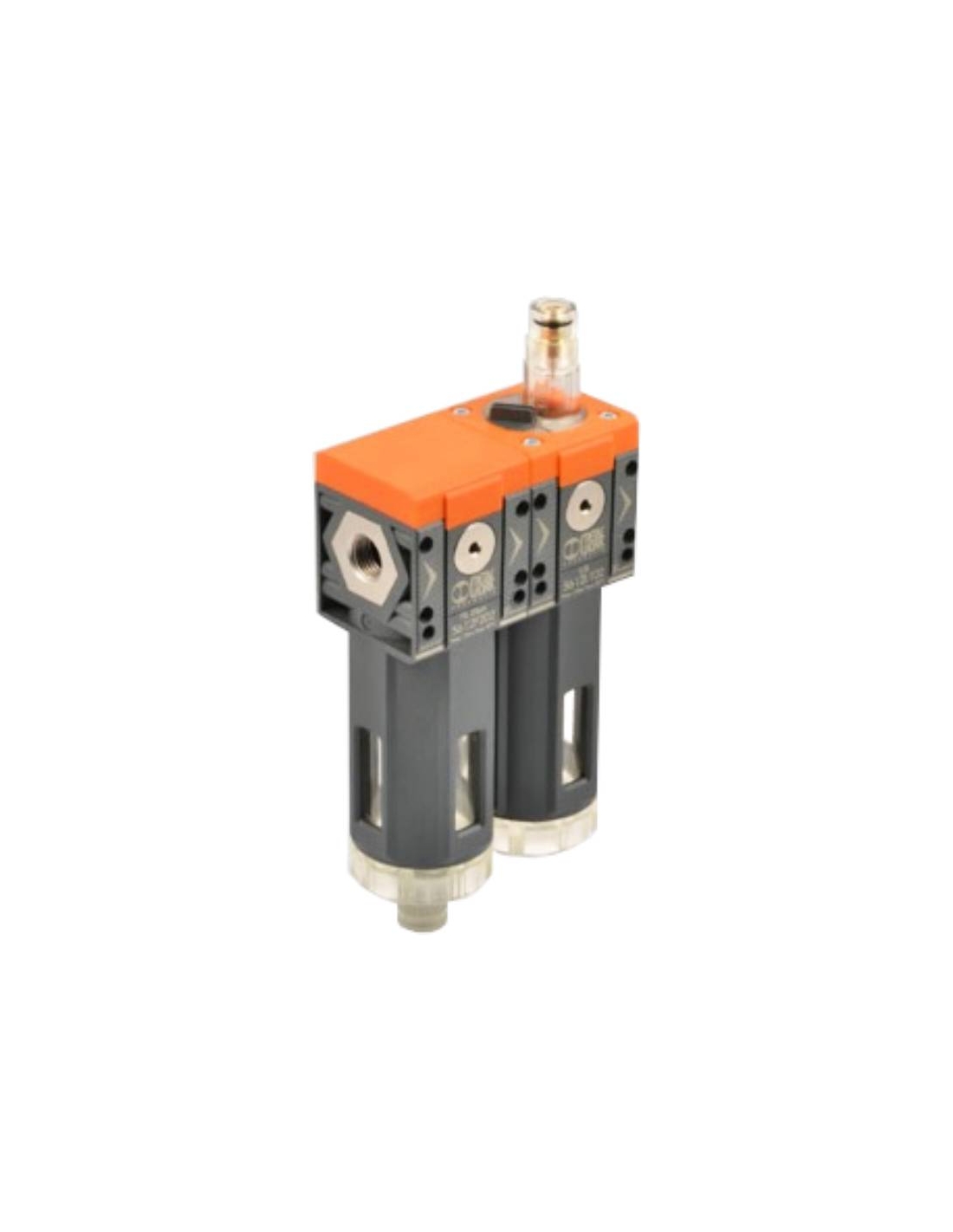

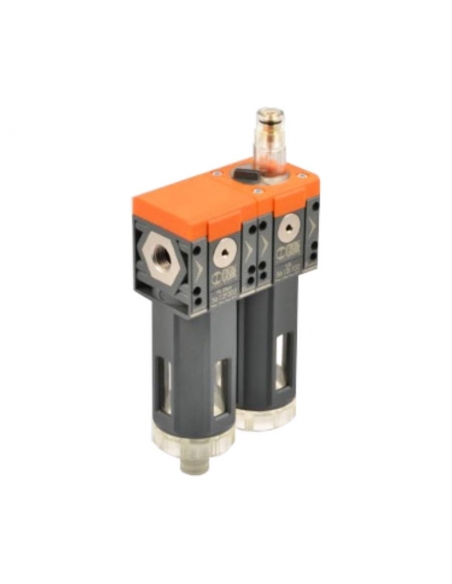

Pneumatic filtration and greasing unit with 1" thread, Syntesi size SY2 series, with automatic drain. Made of high-resistance technopolymer and threads on metal support
Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. The filter discharge system is through automatic condensation purge, independent of pressure and flow.
Characteristics of the filter group:
- Manufacturer: Metal Work
- Manufacturer reference: FIL+LUB SY2 1 20 RA
- Code: 5626F50L106
- Number of elements: 2 (F+L).
- Thread size: 1"
- Filtering degree: 20 μm.
- Condensation discharge: RA
- Maximum inlet pressure (bar/Mpa/psi): 13 / 1.3 / 188
- Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 2900
- Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (Nl/min): 4400
- temperature at 10 bar; 1MPa; 145 psi ( °C): 10 ÷ +50
- Filter bowl capacity: 70 cm3
- Coupling for additional air intakes: 1/4", front and rear
- Flow rate for additional air intakes: 1500-800 Nl/min.
- Mounting position: Vertical.
- Chargeable oil quantity: 130 cm3
- Wall fixing screws: Number 2 M5 screws
For other sizes or references: consult.
Material for professional use, install in compliance with the regulations in force at the place of installation.
For more information, you can download the technical sheet by clicking on the "Annexes" tab.
