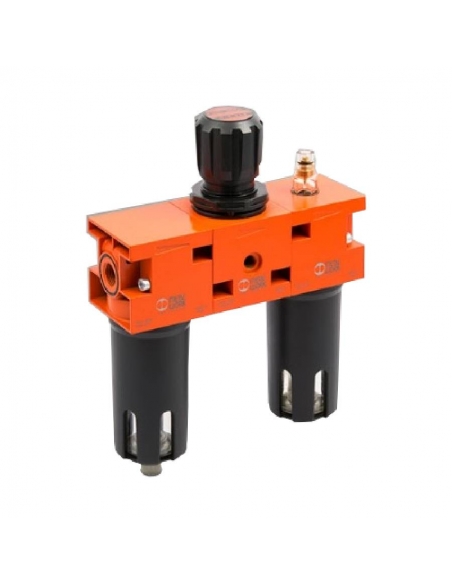

Pneumatic filter group 1 regulation 0-12 bar semi-automatic purge New Deal series - Metal Work

Name: Pneumatic filter group 1 regulation 0-12 bar semi-automatic purge New Deal series - Metal Work
Brand: Metal Work
SKU: 1624030
Price: 400.25 EUR
Availability: BackOrder

€400.25 Tax included

328.07 tax excl.

1624030

Filter group of 1, maintenance unit of 1 for pneumatic applications, semi-automatic drain, in 3 modules (F+R+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.

Series: New Deal
Reference: 1624030

FRL New Deal scheme

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Filter group of 1, maintenance unit of 1 for pneumatic applications, semi-automatic drain, in 3 modules (F+R+L). Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of aluminum and with plastic tanks with metal protection.

The type of purge is manual and automatic when the pressure is removed. The filter group has a 20 μm filter element.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristics of the filter group:

Manufacturer: Metal Work
Reference: FRL 1 20 012 RMSA
Code: 1624030
Thread size: 1"
Regulation field: 0 to 12 bar .
Maximum inlet pressure: 18 bar .
Semi-automatic and automatic condensate drain.
Metal cup with external viewer
Filtration degree: 20μm.
Condensate drain type: RMSA
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 2000
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) ( Nl/min): 3700
Wall fixing screws: M6 x 75.
Working temperature: -10 to +50ºC.

dimensions F+R+L New deal

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
