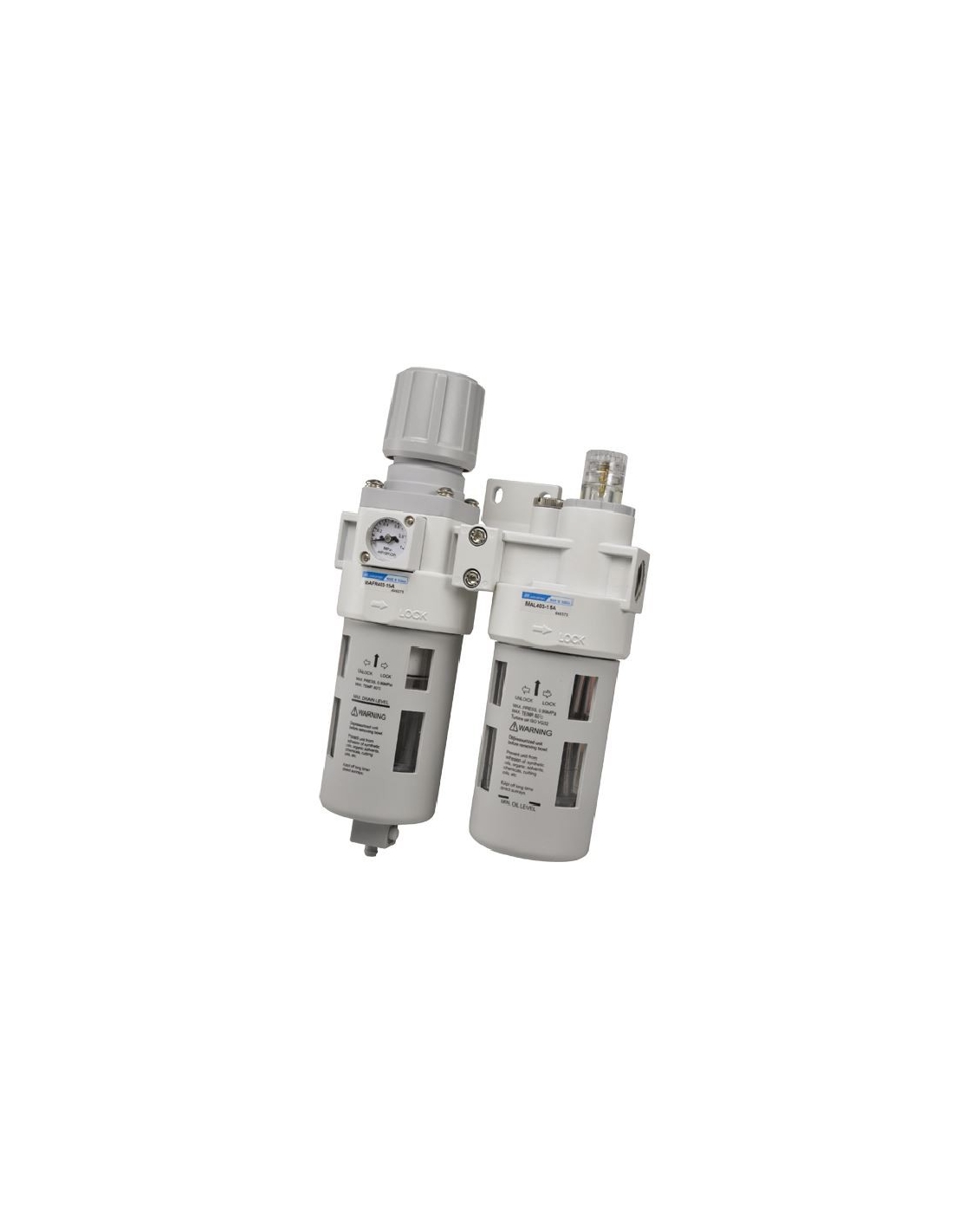

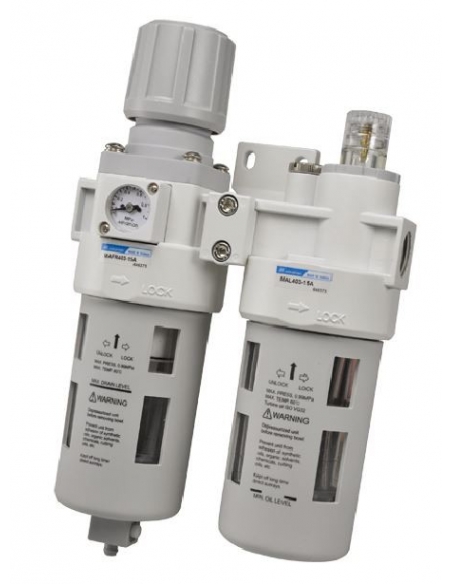

1/2 metal filtration group - Mindman 403
1/2 metal filtration group - Mindman 403

Metal filtration group 1/2 - Mindman 403

Delivery in 3 days.
€103.13 Tax included

84.53 tax excl.

MACP40315

Filter group of 1/2 (Filter-regulator + lubricator) metallic and plastic cups, with manometer integrated on the head group 403
Capacity of the vessels: 140 c.c.
Reference: 281MACP40315

simbolo grupo filtrante neumático


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Filtration group of 1/2,pneumatic maintenance unit, filter-regulator + lubricator (FR +L) body made of metal and plastic cups. The pressure gauge is integrated into the regulator.

Among the main characteristics of this filter group has a large flow rate, high robutes and easy handling for regulation, emptying of the filter vessel and oil replacement in the lubrication element.

Characteristics of the filtering group:

  • - Manufacturer: Mindman.
  • - Manufacturer reference: MACP403-15A.
  • - Number of elements: 2 (FR+L).
  • - Thread size: G 1/2".
  • - Regulation range: 0-8.5 Kgr/cm².
  • - Maximum inlet pressure: 10 Kgr/cm².
  • - Test pressure: 15 Kgr/cm².
  • - Integrated pressure gauge on the pressure regulator.
  • - Filtration grade: 40 μm. (Optional 5 μm)
  • - Purge of manual-semi-automatic condensation.
  • - Glasses with external viewfinder.
  • - Capacity of the vessels: 140 c.c.
  • - Type of flea: semi-automatic.
  • - Type of lubrification: mist.
  • - Minimum flow rate to ensure lubrication: 60 l/min.
  • - Mounting form: Vertical.
  • - Fixing support: Included.

For other sizes or references: see.

Dimensiones grupo filtrante Mindman serie 403

Curvas de caudal serie 403 grupo filtrante

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
