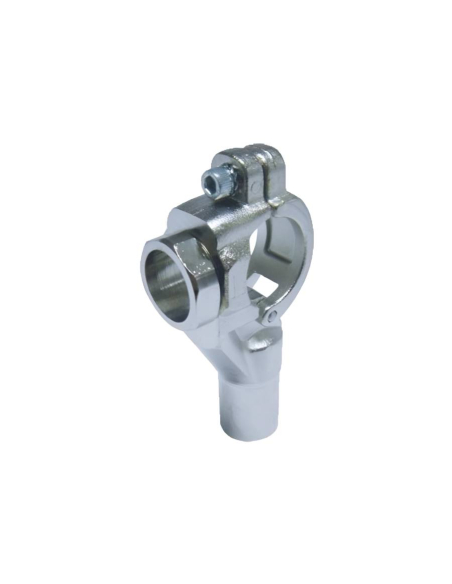

Centering tool for 50mm tube drill - Aignep

€51.56 Tax included

42.26 tax excl.

9024250
Tool or centering element for drilling holes in a 50mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange of the 90240 and 90246 series from the Aignep brand.


Reference: 90242 50



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

Tool or element for drilling holes in a 50mm outer diameter tube. This type of element allows you to easily drill the tube at the desired point for the subsequent placement of a downspout flange or bypass flange . The guide hole of the tool must be perpendicular to the axis of the tube to be drilled.


Valid for flanges of the 90240 and 90246 series of the Aignep brand.







Characteristics:

  • Manufacturer: Aignep
  • Reference: 90242 50
  • Series: Infinity
  • Pipe diameter: 50mm
  • Material: Nickel-plated brass
  • Application: Compressed air, vacuum, inert gas (nitrogen, argon)
  • Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
  • Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
  • All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)
















Material for professional use, install in compliance with the regulations in force at the installation site.
