19x19mm base for cable fastening flanges
19x19mm base for cable fastening flanges

Base for cable ties 19x19mm - bag 100 units

€4.26 Tax included

€3.49 tax excl.

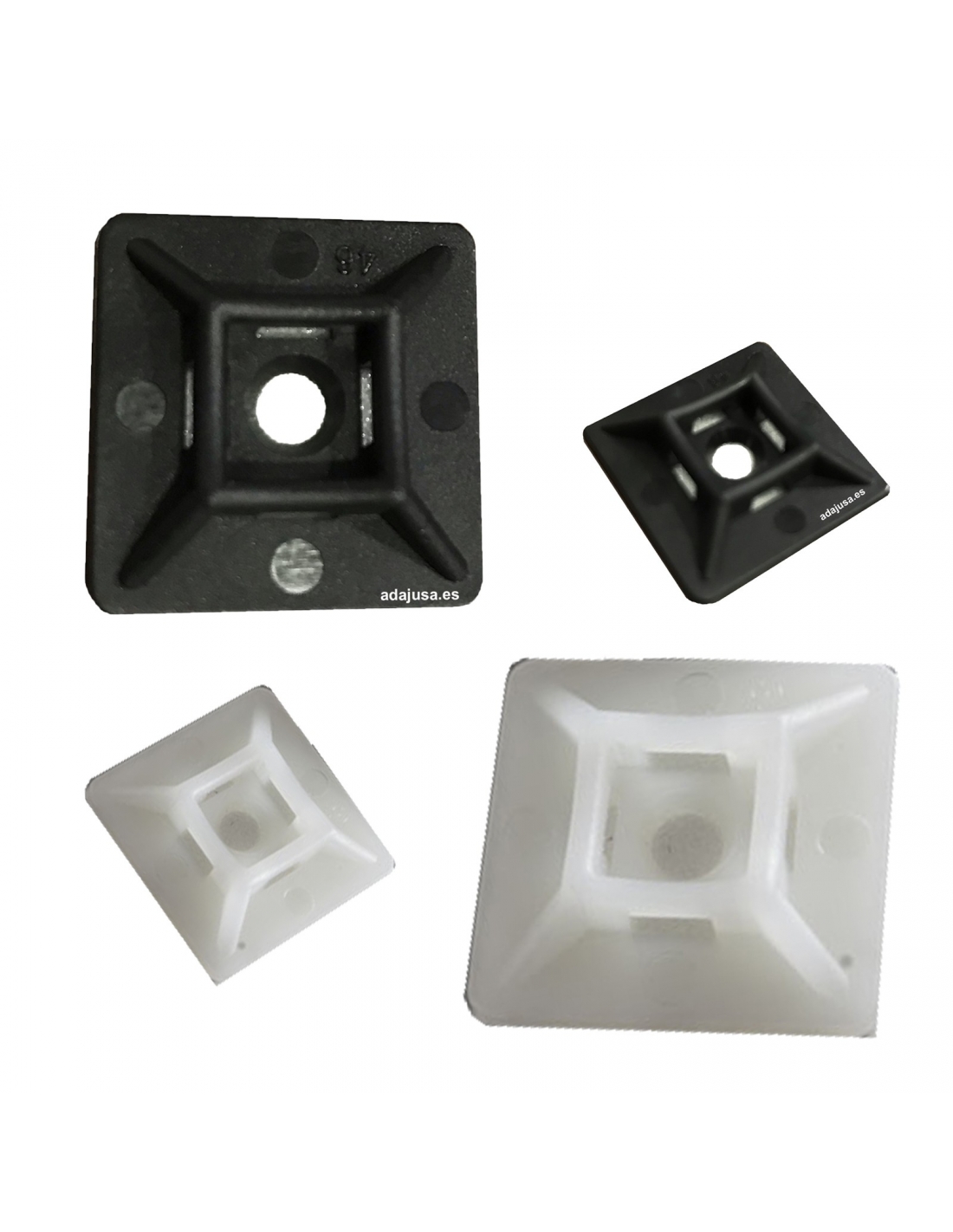

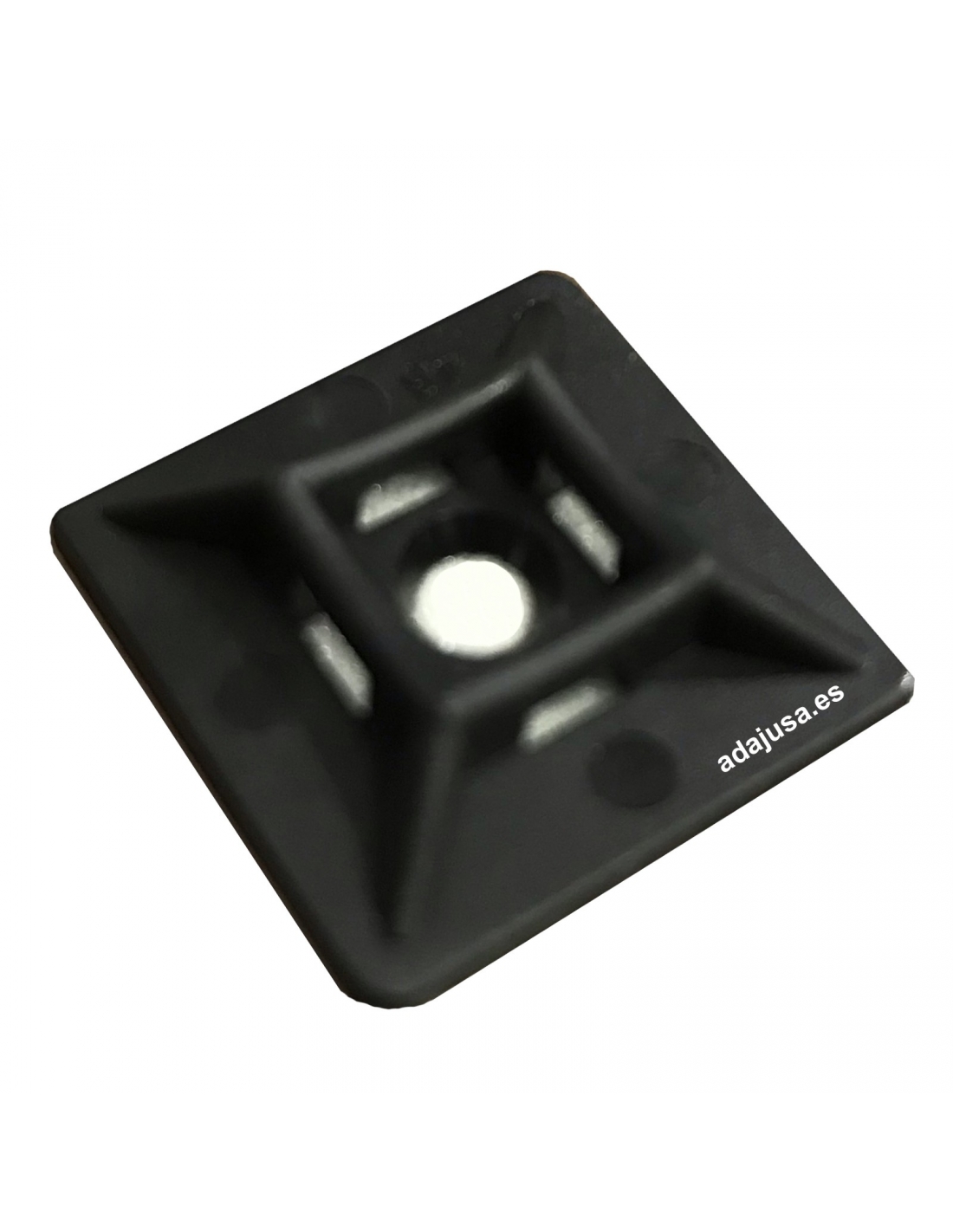

Bag of 19x19mm bases for flange fastening, adhesive and/or screw fastening. Manufactured in Polyamide 66 (Nylon) auotextinguible, available in white and/or black color. Supplied in bags of 100 units.


Clamps can be placed on their slots, to fix cables or other objects on walls. The bases are supplied with adhesive applied.

Reference base natural color: BRF19-19
Reference base black color: BRF19-19N

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Color
  • Black
  • White

The minimum purchase order quantity for the product is 5.

No queries yet, leave the first!
Privacy
Shipments
Returns


Bag of bases for cable ties, size 19x19mm. Adhesive and/or screw fixing, made of self-extinguishing Polyamide PA 6.6. Clamps can be placed on their slots, to fix cables or other objects on walls. The bases are presented with adhesive applied, it is necessary that the walls on which the base is placed are smooth and free of grease.


Resistant to low temperatures. Good resistance to bases, oils, greases, petroleum derivatives, chloride solvents. Limited resistance to acids. NOT RESISTANT TO PHENOLS.

The black bases are made of polyamide + black carbon, which gives them greater resistance to ultraviolet rays and makes them more suitable for outdoor use.



Technical characteristics:

  • Manufacturer/Supplier: Euroconnex
  • Reference natural base: BRF19-19
  • Black base reference: BRF19-19N
  • Size: 19x19mm
  • Maximum width of flange: 3,6mm
  • Maximum load: 8Kg
  • Available colors: Black, Natural
  • Base material natural color: Polyamide 66 (Nylon)
  • Base material black color: Polyamide 66 (Nylon) + 1% carbon black
  • Material flammability: UL94-V2
  • Moisture absorption: 2.7% - 2.8% (23ºC - 50%RH)
  • Working temperature: -40ºC to +85ºC
  • Minimum installation temperature: -10ºC
  • Max sustainable temperature for short time: 110ºC
  • Protection: UV ray resistance (Black color)
  • Certifications: CE, UL (UL62275), TUV (EN62275:2015), ROHS, REACH





NOTE: It is recommended to glue the adhesive bases 2 hours before applying the load.

Material for professional use, install in compliance with the regulations in force at the installation site.
