Flexible polyurethane Pneumatic tube PA12 PU98 Blue 2x4 | ADAJUSA | price

Pneumatic tube in polyurethane 4x2mm blue - cut by meters

Q: I am searching for pu tubes to replace the pneumatic tubes of my agricultural crop sprayer. I found these two products: 1. polyurethane Pneumatic tube , size 8x6mm . Flexible linear tube with external diameter 8mm and internal diameter 6mm. 100 meter roll. Reference: PU6X8 2. Pneumatic tube in polyurethane 4x2mm blue Reference: SCPU2X4 Tube made of PU98 polyurethane with an ester base (hardness 52 Shore D), product of the LONGLIFE series ideal for applications with pneumatic fittings. Recommended for industrial use, agricultural industry and extreme pressure conditions greater than 10 bar. Are these tubes UV resistant Thank you for a quick response. best regards A.Himstedt

Dear Customer, It has good resistance to high temperatures, good resistance to cold impact, as well as resistance to oils, greases, oxygen and ozone. All the best ADAJUSA

Special material, payment by PayPal or cash on delivery is not accepted

€0.40 Tax included

€0.33 tax excl.

SCPU2X4-m

polyurethane Pneumatic tube , size 4x2mm in blue . Flexible linear tube with external diameter 4mm and internal diameter 2mm. Sale by meters.

Tube made of PU98 polyurethane with an ester base (hardness 52 Shore D), product of the LONGLIFE series ideal for applications with pneumatic fittings. Recommended for industrial use, agricultural industry and extreme pressure conditions greater than 10 bar .

Reference: SCPU2X4

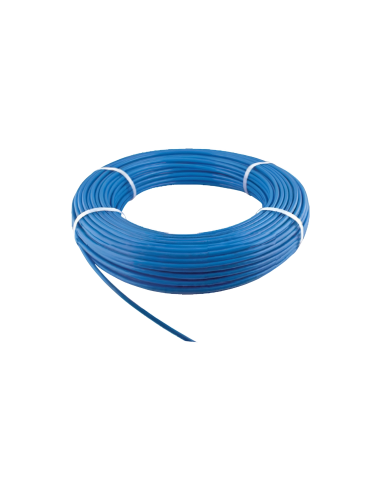

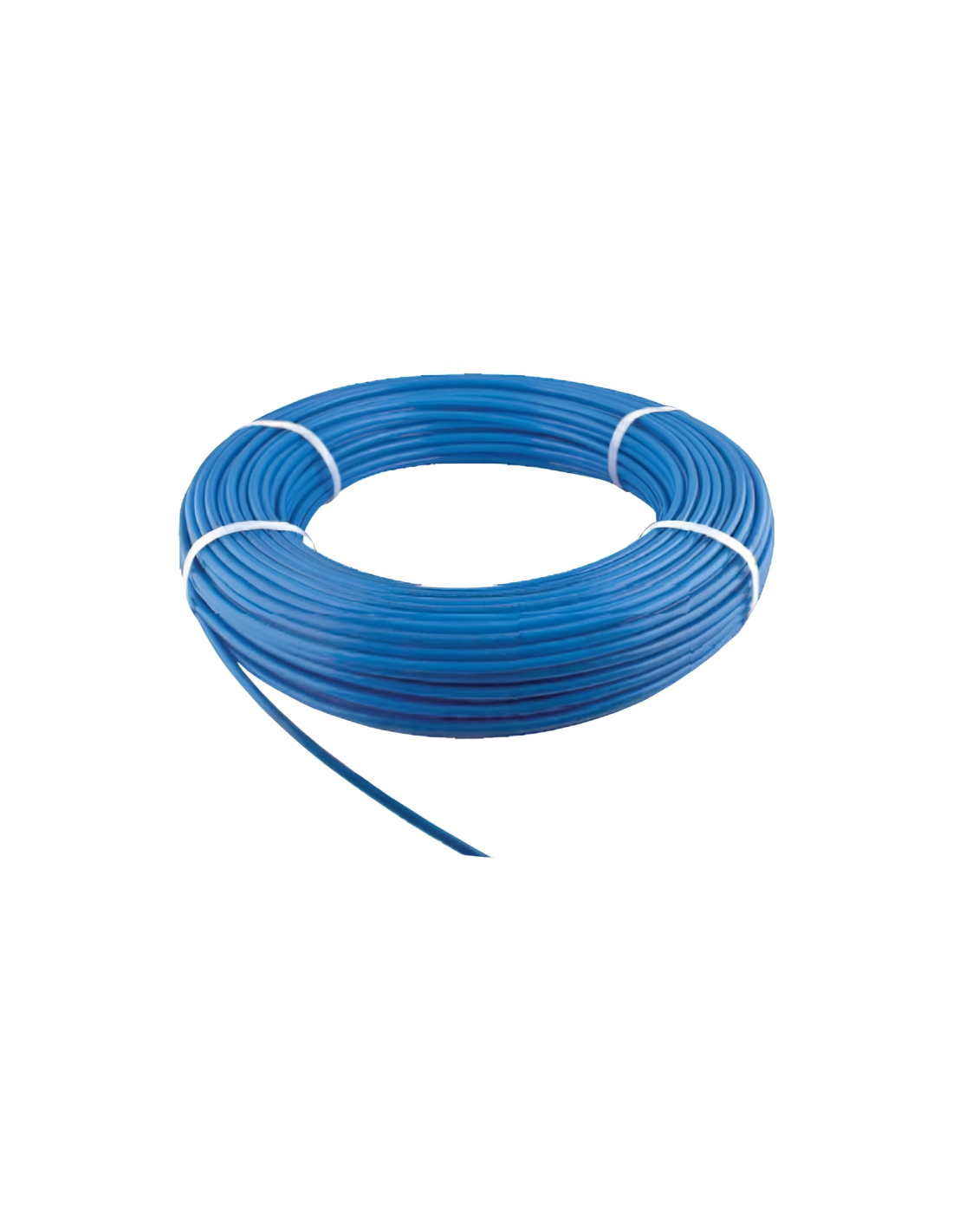

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product

Privacy

Shipments

Returns

Flexible PU98 polyurethane tube with ester base (hardness 52 Shore D), product of the LONGLIFE series for pneumatic applications, measurement 4x2mm. Blue color, sold by meters.

Tube made of chemical polyurethane with a flexible ester base, suitable for almost all industrial standard low pressure pneumatic applications. Especially recommended for the agricultural industry and extreme pressure conditions greater than 10 bar . It features excellent flexibility, dimensional stability, very tight bending radii, and good resistance to bending, abrasion, and high-speed handling. It has good resistance to high temperatures, good resistance to cold impact, as well as resistance to oils, greases, oxygen and ozone.

Intended for the industrial sector and various applications such as industrial automation, robotics, vacuum, energy chains, machine tools, etc.

Characteristics:

Manufacturer: Mebra
Reference: SCPU2X4
Measurement: 4x2mm
Color blue
Outer diameter: 4mm
Inner diameter: 2mm
Thickness: 1mm
Minimum curvature radius: 10mm
Hardness: SHORE 98 A / SHORE 49-55 D
Temperature: -40ºC to +60ºC
Operating pressure (23ºC): 22bar
Burst pressure safety factor: 3:1
Tolerances:
±0.05 in wall thickness
±0.05 in external Ø, up to Ø 10
±0.10 on the outside Ø, up to Ø 12
±0.5% on weight

NOTE: Not suitable for use with water and humid environments.

Graph of pressure drop in % as a function of temperature:

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab

polyurethane tube (PU98)

Download (678.73KB)

Questions

Question

I am searching for pu tubes to replace the pneumatic tubes of my agricultural crop sprayer. I found these two products:
1. polyurethane Pneumatic tube , size 8x6mm . Flexible linear tube with external diameter 8mm and internal diameter 6mm. 100 meter roll.
Reference: PU6X8
2. Pneumatic tube in polyurethane 4x2mm blue
Reference: SCPU2X4
Tube made of PU98 polyurethane with an ester base (hardness 52 Shore D), product of the LONGLIFE series ideal for applications with pneumatic fittings. Recommended for industrial use, agricultural industry and extreme pressure conditions greater than 10 bar.
Are these tubes UV resistant
Thank you for a quick response.
best regards
A.Himstedt

Answer

Dear Customer,

It has good resistance to high temperatures, good resistance to cold impact, as well as resistance to oils, greases, oxygen and ozone.

All the best
ADAJUSA

Andreas Himstedt on 05/26/2024 14:49:15
