One-way adjustable Regulator with 3/8" adjusting screw, diameter 10 for technopolymer cylinder - Aignep

€12.75 Tax included

10.45 tax excl.

55902 10 3/8

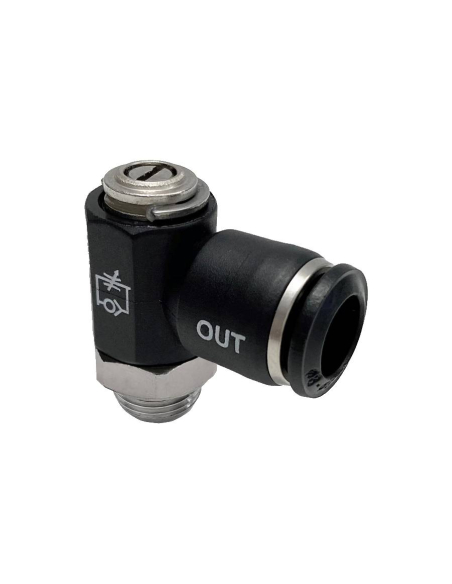

Adjustable one-way flow Regulator with 3/8 cylindrical thread and adjustment screw for 10mm diameter tube for mounting on the cylinder's feed opening, body and extraction ring made of technopolymer tube. Mounting on cylinder.

Series: Function
Reference: 55902 10 3/8
SCHEMEaignep
regulations


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

3/8" cylindrical thread, one-way adjustable flow Regulator with O-ring seal. This model regulates piston speed in pneumatic cylinders . This model must be mounted on the cylinder's inlet. It can be manually adjusted with a screwdriver, providing a secure fit to prevent tampering.


cylinder mounting

 Regulator Features:
  • Manufacturer: Aignep
  • Reference: 55902 10 3/8
  • Working pressure bar : 1 ÷ 10
  • Operating temperature °C: -20 ÷ +80
  • Fluid: compressed air
  • Thread regulations:
    • Cylindrical gas according to ISO 228 Class A
    • Metric according to ISO R/262
55902 DIMENSIONS

55902 DIMENSIONS TABLE


Professional use material, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Attachments" tab.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

One-way adjustable Regulator with 1/4" screwdriver for cylinders - Aignep | ADAJUSA | Price
Flow and pressure regulators

One-way adjustable Regulator with 1/4" tube diameter adjustment screw for technopolymer...

Aignep
55902 8 1/4
€8.39 (€6.88 tax excl.)
Adjustable one-way flow Regulator with 1/4 cylindrical thread and adjustment screw for 8mm diameter tube for mounting on the cylinder's feed opening, body and extraction ring made of technopolymer tube. Mounting on cylinder. Series: Function Reference: 55902 8 1/4 Representative image for illustrative purposes, the item supplied will correspond to the...
Flow and pressure regulators

One-way swivel Regulator with 1/2" cylindrical thread knob, 12mm diameter tube for...

Aignep
55916 12 1/2
€16.67 (€13.66 tax excl.)
Adjustable, one-way flow Regulator with a 1/2" cylindrical thread and knob adjustment for 12mm diameter tubing for mounting on the valve's inlet. The body and extraction ring are made of technopolymer tubing. Valve mounting. Series: Function Reference: 55916 12 1/2 Representative image for illustrative purposes, the item supplied will correspond to the...
Flow and pressure regulators

One-way swivel Regulator with 3/8" cylindrical thread knob, 12" diameter tube for...

Aignep
55916 12 3/8
€12.98 (€10.64 tax excl.)
Adjustable, one-way flow Regulator with a 3/8" cylindrical thread and knob adjustment for 12mm diameter tubing for mounting on the valve's inlet. The body and extraction ring are made of technopolymer tubing. Valve mounting. Series: FunctionReference: 55916 12 3/8 Representative image for illustrative purposes, the item supplied will correspond to the...
Flow and pressure regulators

One-way swivel Regulator with 1/4" cylindrical thread knob, 8mm diameter tube for...

Aignep
55916 8 1/4
€9.37 (€7.68 tax excl.)
Adjustable, one-way flow Regulator with a 1/4" cylindrical thread and knob adjustment for 8mm diameter tubing for mounting on the valve's inlet. The body and extraction ring are made of technopolymer tubing. Valve mounting. Series: Function Reference: 55916 8 1/4 Representative image for illustrative purposes, the item supplied will correspond to the...

Customers who bought this product also bought:

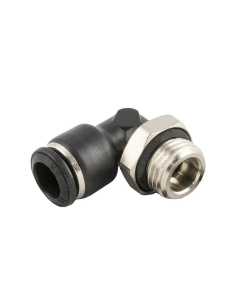

Male cylindrical adjustable elbow fitting 3/8 tube 10mm Series 55000 - Aignep | ADAJUSA
Fittings swivel elbow

Male cylindrical adjustable elbow fitting 3/8 tube 10mm Series 55000 - Aignep

Aignep
551161038
€2.90 (€2.38 tax excl.)
3/8 male cylindrical adjustable elbow fitting for 10mm tube with metal nut and gasket included, made of technopolymer and nickel-plated brass, the tube extraction ring in acetal resin. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Series: 55000 Reference:...
Filter-regulator 3/8 technopolymer
Filter groups of 3/8 FR-L

Pneumatic filter-regulator 3/8 0-12 bar purge size 1 semi-automatic series Syntesi -...

Metal Work
5613B263
€47.28 (€38.75 tax excl.)
Filter with 3/8 pneumatic pressure regulator, 3/8 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY1) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...
Pneumatic cylinder diameter 80mm stroke 100 standard LH-080-0100 Aignep | ADAJUSA : price Pneumatic cylinder diameter 80mm stroke 100 standard LH-080-0100 Aignep | ADAJUSA : price 2
Pneumatic cylinders .80

Pneumatic cylinder 80x100 double-acting LH0800100- Aignep

Aignep
LH-080-0100
€132.86 (€108.90 tax excl.)
Pneumatic cylinder Ø80 stroke 100mm, double magnetic effect and with pneumatic cushioning. Made in Italy according to ISO 15552 (Ex ISO 6431). Extruded aluminum body with grooves for magnetic detectors, chrome-plated steel piston rod. ATEX cylinders as standard.Reference: LH0800100 Representative image for illustrative purposes, the item supplied will...

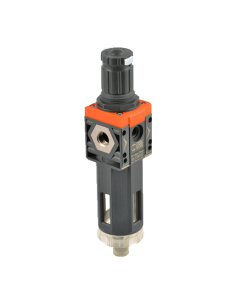

Filter-regulator 3/4 technopolymer
