Support with 90mm axle bearing UCP318 - ISB

€344.45 Tax included

€284.67 tax excl.

Cast iron support with UCP318 inserted bearing for 90mm diameter shaft, self-aligning support with inserted ball bearing with grub screws on the inner ring, sheet metal seal equipped with a nitrile rubber lip. Bearing with spherical outer rings for self-alignment and to compensate for misalignment.

Reference: UCP318

Logo-ISB

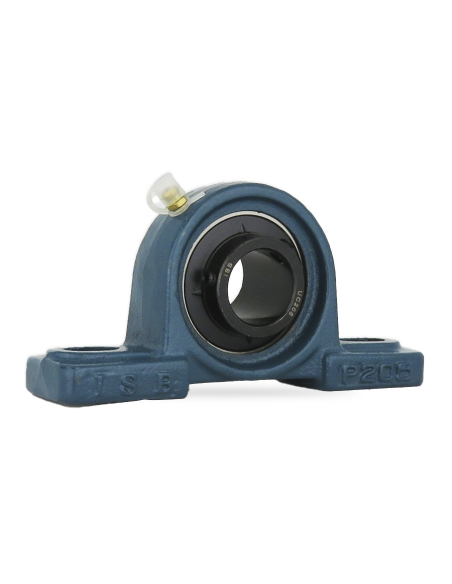

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Self-aligning support bracket in gray cast iron with insert already assembled, type UCP318, for Ø90mm shaft.

The body of the bearing support in gray cast iron FG20 protected against corrosion. High load capacity.

The inserted bearing (insert) of balls in steel. These bearings are grooved. Its outer rings have a spherical surface that is free to oscillate on the support track, this oscillation allows self-alignment in the support housing and compensates for any misalignment and eliminates, as much as possible, unwanted stresses between the shaft and the support. The fixing of the bearing to the shaft is carried out by means of two hexagonal Allen screws displaced 120º. Easy assembly and disassembly.

The field of application of these bearing units are industrial and general applications with normal loads, low to medium rotational speeds.

The sealing of the bearing is guaranteed by a gasket made up of a protective steel plate plus a rubber seal. The bearing mounts a gasket on each side. This protection system prevents the escape of grease and any possible infiltration of contaminating agents, which is particularly indicated when there are very aggressive external agents, dust, liquids or when the machine works outdoors.

The bearings are suitable for all applications in a temperature range from -15ºC to +100ºC.

The supply includes (already assembled):

  • Support: P318
  • Insert (bearing): UC318

Main dimensions:

Dimensions of UCP ISB supports

  • d: 90mm
  • to: 430mm
  • h: 118mm
  • b: 110mm
  • e: 330mm
  • w: 235mm
  • S1: 33mm

For other reference or models consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
