Bearing bracket shaft 70mm UCP214 - SNR
Bearing bracket shaft 70mm UCP214 - SNR

Bearing bracket shaft 70mm UCP214 - SNR

€123.44 Tax included

€102.02 tax excl.

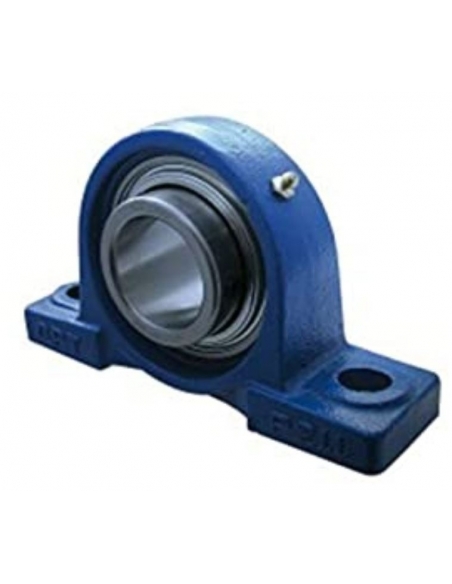

Casting bracket with UCP214 inserted bearing for 70mm diameter shaft, self-aligning support bracket with ball bearing inserted with prisoners in the inner ring, plate sealing endowed with a lip in nitrile rubber. Bearing with spherical outer rings for self-alignment and to compensate for alignment defects.

Manufacturer: SNR

Reference: UCP214

Logotipo SNR

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Self-aligning support bracket in grey cast iron with insert already mounted, type UCP214, for axle of 70mm.

The corrosion-protected FG20 grey cast iron bearing housing body is passive and varnished in RAL 5010 color. High load capacity.

The inserted bearing (insert) of steel balls. These bearings are grooved. Its outer rings have a spherical surface that is free to oscillate on the support track, this oscillation allows self alignment in the housing of the support and compensate for any alignment defects and eliminate, as much as possible, unwanted efforts between the shaft and the support. The bearing to the shaft is fixed by two 120o displaced hexagonal allen screws. Easy assembly and disassembly.

Defectos de alineación

The field of application of these bearing housings are industrial and general applications with normal loads, weak to medium rotation speeds.

The sealing of the bearing is guaranteed by joint composed of a sheet steel washer equipped with a lip in nitrile rubber, the bearing mounts a joint on each side.

Bearings are suitable for all applications in a temperature range of -20oC to +110oC.

Supply includes (already assembled):

  • Support: P214
  • Insert (bearing): UC214

Main dimensions:

Dimensiones soportes UCP SNR

  • d: 70 mm
  • L: 266 mm
  • H: 79.4 mm
  • A: 72 mm
  • J: 210 mm
  • H2: 156 mm
  • N: 25mm

For other references or models

Material for professional use, install in compliance with the regulations in force at the installation site.
