Honeycomb plain bushing - SF2 101215C type PAP 1015 P20 ISB

€0.42 Tax included

€0.35 tax excl.

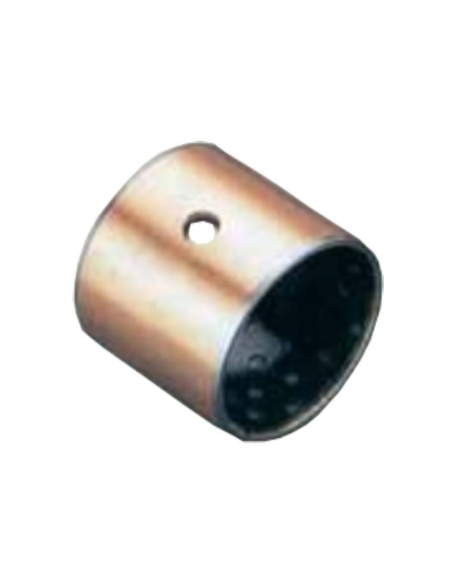

Honeycomb plain bearing SF2 10x12x15mm PAP P20  bushing, polyacetal resin (POM) interior with a steel plate base on which a thick porous bronze layer is sintered. The finish of the outer steel armor is copper-plated.

Used in the mining and metallurgy industry, stamping presses, hydroelectric machinery, for cold rolling of steel and many other applications requiring periodic lubrication.

Part number: SF2101215C




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!
Privacy
Shipments
Returns


Bushings with honeycombed surface, friction bushing (bearing) that has pockets to contain and gradually release the lubricant, this feature causes them to require little maintenance, they have reduced friction capacity to protect the surface of the bushing.

They have an external hole to facilitate lubrication. It is advisable to use a lithium grease.

Note: MoS2 and lithium-based greases are not suitable.

The main features of this type of bushing are as follows:

  • Low maintenance due to long relubrication intervals.
  • Good adaptability to oscillating and rotating movements
  • Limited wear (provided they are applied and used correctly)
  • Water repellents
  • Reduced sensitivity to edge loading
  • Good heat dispersion



Characteristics:

  • Manufacturer ISB
  • Type: SF2
  • Part number: 101215C
  • Friction material: POM on porous bronze.
  • Outer material: Copper-plated steel armor.
  • Inner surface: Honeycombed.
  • Load capacity: 70N/mm2
  • Temperature: -40ºC to +130ºC
Dimensions:
  • Inner diameter (d): 10 mm
  • Outside diameter (D): 12 mm
  • Length (L): 15 mm
  • Outer bore diameter (H): 4 mm
Material for professional use, install respecting the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
