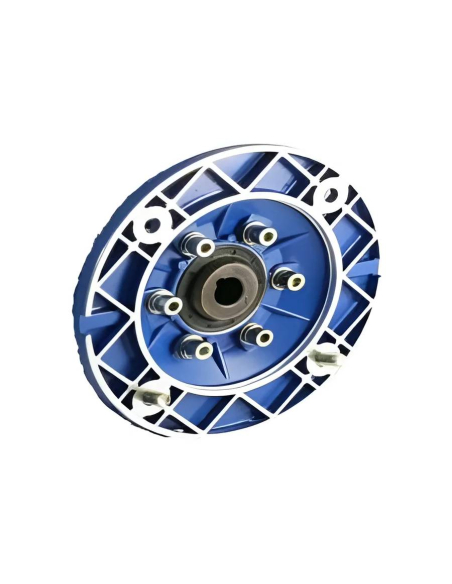

PAM flange for worm gear reducer size 63

€21.97 Tax included

18.01 tax excl.

PAM-63 71B5
PAM flange for size 63 worm gear reducer. This flange is made of aluminum. These flanges are available to couple motors with either a B5 or B14 flange .
Available flange sizes are:
  • Size 71 (diameter 160) B5
  • Size 71 (diameter 105) B14
  • Size 80 (diameter 200) B5
  • Size 80 (diameter 120) B14
  • Size 90 (diameter 200) B5
  • Size 90 (diameter 140) B14
Select the type of flange from the menu.







Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Flange PAM
  • PAM 71 B5
  • PAM 71 B14
  • PAM 80 B5
  • PAM 80 B14
  • PAM 90 B5
  • PAM 90 B14

No queries yet, leave the first!
Privacy
Shipments
Returns

PAM flange for size 63 worm gear reducer. This flange is made of aluminum. These flanges are available to couple motors with either a B5 or B14 flange . This flange allows a B5 or B14 motor to be coupled to a size 63 worm gear reducer.

Available flange sizes are:
  • Size 71 (diameter 160) B5
  • Size 71 (diameter 105) B14
  • Size 80 (diameter 200) B5
  • Size 80 (diameter 120) B14
  • Size 90 (diameter 200) B5
  • Size 90 (diameter 140) B14
PAM B14 flange dimensions
PAM B5 flange dimensions

Material for professional use, install in compliance with the regulations in force at the installation site.
