Multi-wire hose 12x1.5mm (12G1.5) PVC black

Special material, PayPal payment not accepted
€6.01 Tax included

€4.97 tax excl.

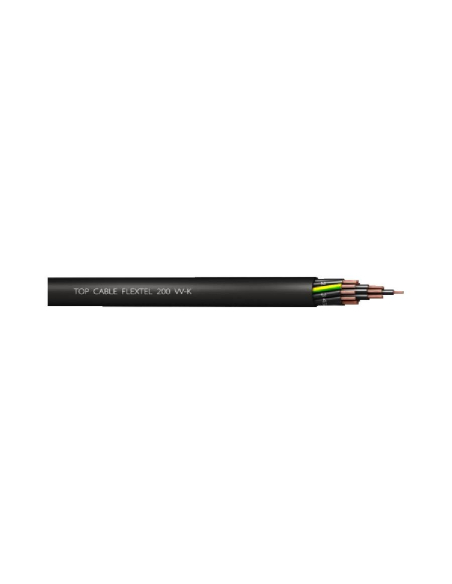

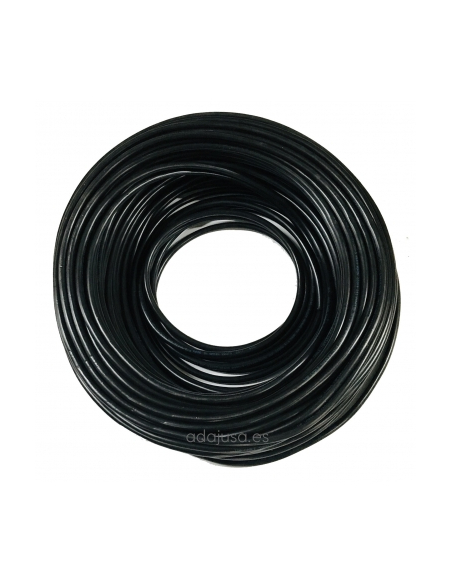

Flexible cable with a section of 12 x 1.5mm² (11 numbered black conductors + 1 yellow/green conductor of 1.5mm² each). Black PVC sheath that gives the cable a high degree of protection in all types of environments. Suitable for fixed installations where flexible cables are needed, for connecting motors or frequency converters. Designed under the CPR regulation (EN 50575).

Series: Flextel 200 VV-K
Colour: Black
Section: 12 x 1.5mm² (12G1.5)
 Conductor colors: Black numbered + Yellow/Green

Price per meter
Material cut to size, no return or cancellation of the order is allowed



top_cable_logo





 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

The minimum purchase order quantity for the product is 25.

No queries yet, leave the first!
Privacy
Shipments
Returns


Flexible control cable with 12 conductors of 1.5mm² section each (11 numbered black conductors + 1 yellow/green protection conductor). Black flexible PVC sheath, the characteristics of the sheath make this type of cable extremely versatile as it gives it a high degree of protection in all types of environments.

The Flextel 200 VV-K cable is suitable for all those fixed installations with complex layout where flexible cables are needed, it is also used for the connection of motors or frequency converters. Suitable for outdoor, buried and piped installation.

Conductor colors:

  • black numbered
  • Yellow green

Price and supply per metre
Material cut to size, no return or cancellation of the order is allowed



Technical characteristics:

  • Manufacturer: Top Cable
  • Series: Flextel 200 VV-K
  • Conductor: Annealed electrolytic copper, class 5 (flexible) according to UNE-UN 60228 and IEC 60228
  • Insulation: flexible PVC, type PVC/A according to IEC 60502-1
  • Sheath: flexible PVC, black color
  • Nominal section per conductor: 1.5 mm2
  • Rated voltage: 0.6/1kV
  • Voltage drop: 31.9 V/A x km
  • Thermal Characteristics:
    • Temp. conductor maximum: 70ºC
    • Temp. maximum in short circuit: 160ºC (maximum 5 s)
    • Temp. minimum service: -40ºC (static with protection)
  • Fire characteristics:
    • Flame retardant according to UNE-EN 60332-1 / IEC 60332-1
    • Reaction to fire CPR: E ca according to EN 50575
    • Reduced halogen emission: Chlorine
  • Outer diameter: 11.9mm
  • Radius of curvature: 5 x outer diameter
  • Impact resistant: AG2 Medium
  • Resistance to chemical attacks: Good
  • Resistance to ultraviolet rays: According to UNE 211605
  • Presence of water: AD5 Water jets
  • Installation conditions: Open air, buried, piped
  • Design: According to CPR standard (EN 50575)
    Reference standard: IEC 60502-1
  • Weight: 0.270kg/m







For more information, you can download the technical sheet by clicking on the "Attached Files" tab.
