Multi-wire hose 19x1,5mm PVC black | Adajusa
Multi-wire hose 19x1,5mm PVC black | Adajusa
Multi-wire hose 19x1,5mm PVC black | Adajusa
Multi-wire hose 19x1,5mm PVC black | Adajusa

Hose multiwire 19x1.5mm (19G1.5) PVC black

Special material, payment by PayPal or cash on delivery is not accepted
€9.21 Tax included

€7.61 tax excl.

Hose 19 x 1.5mm² cross-section (18 numbered black conductors + 1 yellow/green conductor of 1.5mm² each). Black PVC sheath which gives the cable a high degree of protection in all types of environments. Suitable for fixed installations where flexible cables are required, for connection of motors or frequency converters. Designed under the CPR standard (EN 50575).

Series: Flextel 200 VV-K
Color: Black
Section: 19 x 1.5mm² (19G1.5)
Conductor colors: Numbered black + Yellow/Green

Price per meter
Material cut to length, no returns or cancellations allowed



logotipo_top_cable

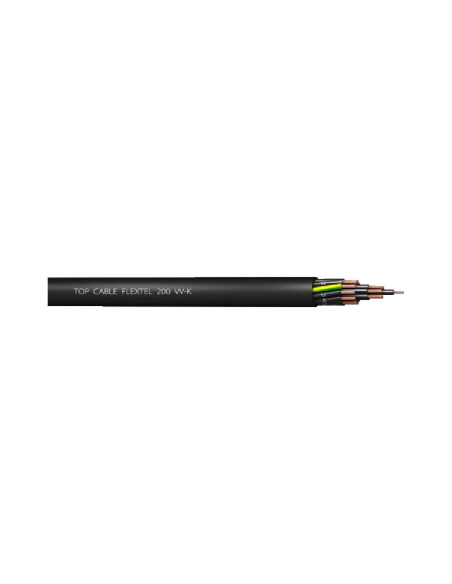

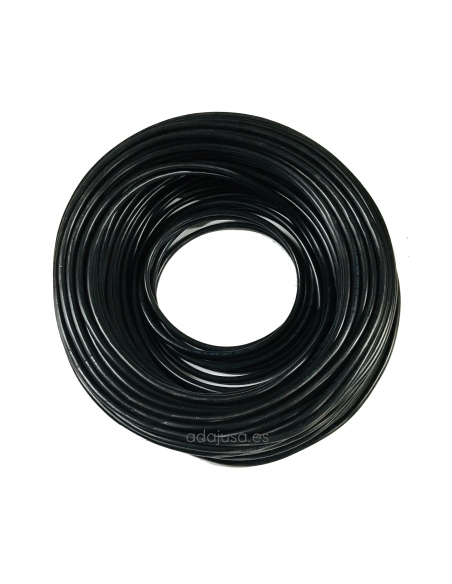

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

The minimum purchase order quantity for the product is 15.

No queries yet, leave the first!
Privacy
Shipments
Returns


Hose multiwire with 19 conductors of 1.5mm² cross-section each (18 numbered black conductors + 1 yellow/green protective conductor). The characteristics of the sheath make this type of cable extremely versatile as it provides a high degree of protection in all types of environments.

The Flextel 200 VV-K cable is suitable for all fixed installations with complex layouts where flexible cables are required, it is also used for the connection of motors or frequency converters. Suitable for outdoor installation, buried and tubed.

Conductor colors:

  • Numbered black
  • Yellow/Green


Price and supply per meter
Material cut to size, no returns or cancellation of order allowed



Technical characteristics:

  • Manufacturer: Top Cable
  • Series: Flextel 200 VV-K
  • Conductor: Annealed electrolytic copper, class 5 (flexible) according to UNE-UN 60228 and IEC 60228
  • Isolationconductor: flexible PVC, type PVC/A according to IEC 60502-1
  • Sheath: Flexible PVC, black color
  • Nominal cross-section per conductor: 1.5 mm2
  • Rated voltage: 0.6/1 kV
  • Voltage drop: 31.9 V/A x km
  • Thermal characteristics
    • Maximum conductor temp.: 70ºC
    • Maximum short-circuit temp.: 160ºC (maximum 5 s)
    • Minimum service temp.: -40ºC (static with protection)
  • Fire characteristics
    • Non-flame propagator according to UNE-EN 60332-1 / IEC 60332-1
    • Reaction to fire CPR: Eca according to EN 50575
    • Reduced halogen emission: Chlorine
  • Outside diameter: 14.5 mm
  • Bending radius: 5 x outer diameter
  • Impact resistant: AG2 Medium
  • Resistance to chemical attack: Good
  • Resistance to ultraviolet rays: According to UNE 211605
  • Presence of water: AD5 Water jets
  • Installation conditions: Open air, buried, piping
  • Design: According to CPR standard (EN 50575)
    Reference Standard: IEC 60502-1
  • Weight: 0.405 kg/m







For further information, you can download the data sheet by clicking on the "Attachments" tab.
