€120.07 Tax included

€99.23 tax excl.

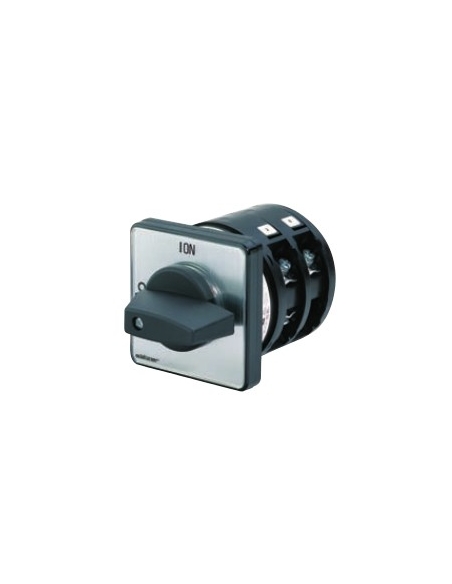

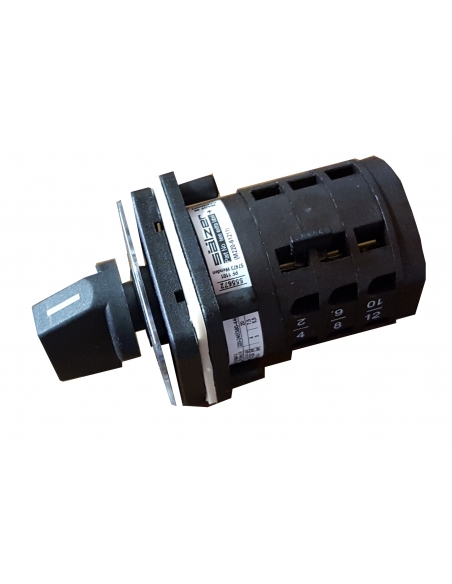

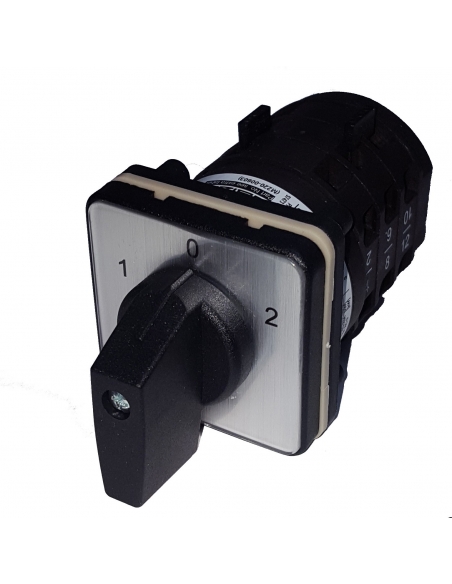

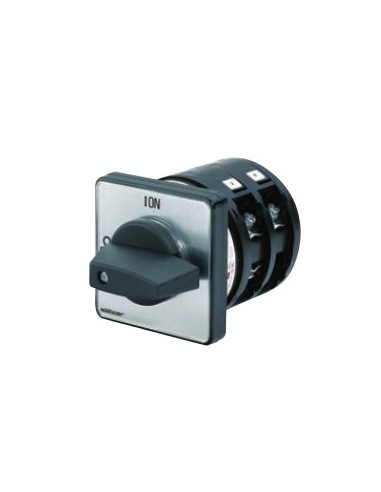

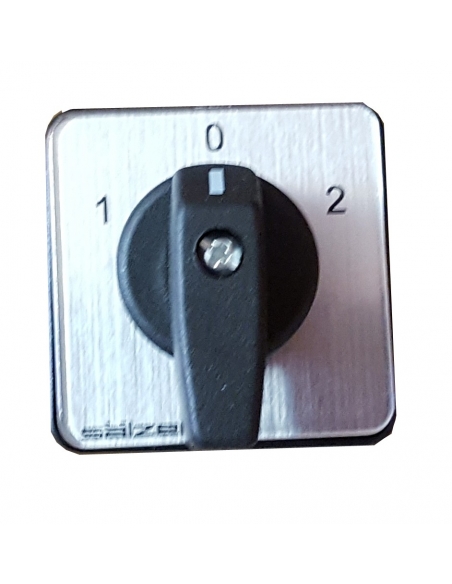

32A three-phase inverter switch for electric motors. Allows the start and stop of a three-phase electric motor allowing to select the direction of rotation of the same. Size 48x48.

Reference: T225-61211-003M1

Esquema eléctrico interruptor inversor

No queries yet, leave the first!
Privacy
Shipments
Returns


32A three-phase inverter switch for electric motors. Allows the start and stop of a three-phase electric motor allowing to select the direction of rotation of the same. Drive by black lever.

Features:

  • Manufacturer: Salzer.
  • Manufacturer's Reference: T225-61211-003M1
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 32A.
  • Power : 11Kw (400Vac)
  • Nominal interrupt capacity: 10 kA.
  • Number of manoeuvres / hours: 50.
  • Mechanical durability: 1,000,000 maneuvers.
  • Built-in mounting.
  • Degree of protection: IP-20.
  • Degree of frontal protection: IP-66.
  • Front size: 48x48mm.
  • Distance between holes: 36x36mm.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14

Esquema interruptor inversor trifásico de levas

Dimensiones interruptores eléctricos de levas
