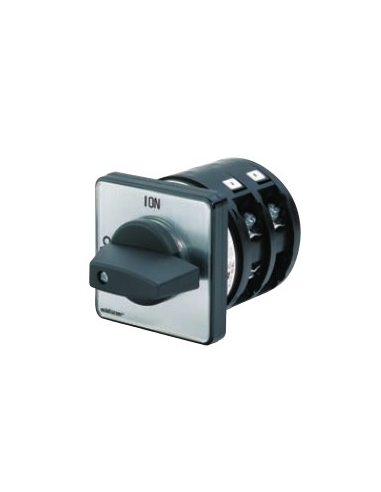

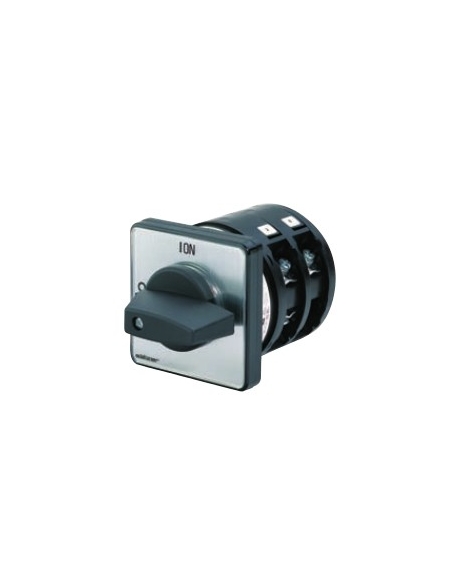

20A Cam Triphasic Switch Size 48
20A single-phase inverter switch
20A single-phase inverter switch
20A single-phase inverter switch
20A Cam Triphasic Switch Size 48
20A single-phase inverter switch
20A single-phase inverter switch
20A single-phase inverter switch

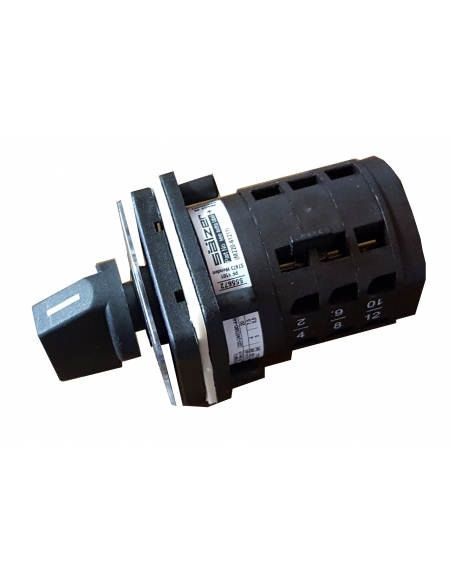

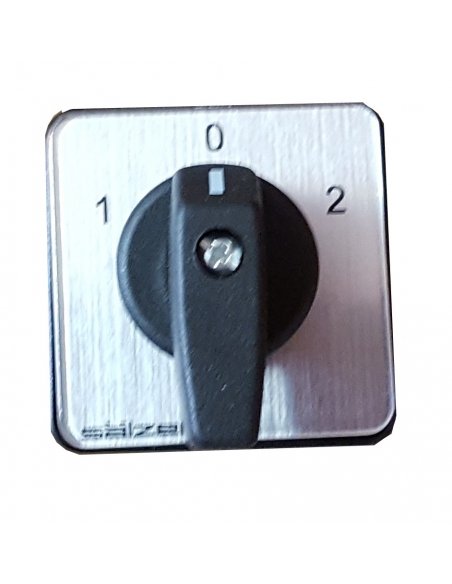

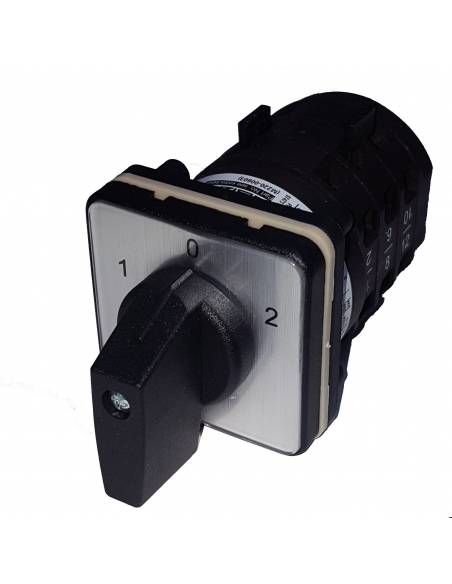

Single Phase Inverter Switch 20A

€68.09 Tax included

€56.27 tax excl.

20A single-phase inverter switch for electric motors. It allows the start and stop of a single-phase electric motor allowing to select the direction of rotation of the same. Size 48x48.

Reference: M220-61270-003M1

Esquema eléctrico interruptor inversor monofásico

No queries yet, leave the first!
Privacy
Shipments
Returns


20A single-phase inverter switch for electric motors. It allows the start and stop of a single-phase electric motor allowing to select the direction of rotation of the same. Drive by black lever.

For more information on how to connect the inverter switch visit our blog:

Turning inverters for single-phase electric motors

Features:

  • Manufacturer: Salzer.
  • Manufacturer's Reference: M220-61270-003M1.
  • Number of poles: 2.
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 20A.
  • Power : 2.2Kw (230Vac).
  • Nominal interrupt capacity: 10 kA.
  • Number of manoeuvres / hours: 50.
  • Mechanical durability: 1,000,000 maneuvers.
  • Built-in mounting.
  • Degree of protection: IP-20.
  • Degree of frontal protection: IP-66.
  • Front size: 48x48mm.
  • Distance between holes: 36x36mm.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14.

Esquema 61270 inversor monofásico

Dimensiones interruptor eléctrico de levas

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

16 other products in the same category:

Three-phase inverter switch...
  • Pack
Inverter switches, star-delta

Three-phase inverter switch 40a full 64x64 red lever - Giovenzana

Giovenzana Internacional B.V.
GIC401264R
€34.75 (€28.72 tax excl.)
Three-phase inverter switch 40a complete, rotary control 90º, positions: 1-0-2, 64x64mm faceplate in yellow and reddish lever, made according to the strictest European standards that allow to meet safety requirements.Switch - inverter for gear-stop and turning inversion in three-phase motors.Representative image for illustrative purposes, the article...
View
Inverter switch single-phase 25a full 48x48 with lock - Giovenzana
  • Pack
Inverter switches, star-delta

Single-phase inverter switch 48x48 25a with lock - Giovenzana

Giovenzana Internacional B.V.
GI251648NB
€37.69 (€31.15 tax excl.)
Full-size single- 25a phase inverter switch, 90º rotary knob, positions: 1-0-2, 48x48mm aluminium front plate and black lever, made to the strictest European standards to meet safety requirements.Switch - inverter for gear-stop and turn reversal in single-phase motors.Representative image for illustrative purposes, the article supplied shall correspond to...
Switch two speeds dahlander 25a black lever 48x48 - Giovenzana
  • Pack
Inverter switches, star-delta

Switch two speeds dahlander 25a black lever 48x48 - Giovenzana

Giovenzana Internacional B.V.
GIC251448N
2 reviews
€49.22 (€40.68 tax excl.)
Switch for two-speed motor, dahlander type, intensity up to 25a.,rotary control 90º, positions: 1-0-2, 48x48mm faceplate in aluminum color and black lever, made according to the strictest European standards that allow to meet the requirements in terms of safety.Switch that allows you to start and stop, and select the speed of rotation in 2-speed motors...
Full 25A star-triangle switch - Giovenzana
  • Pack
Inverter switches, star-delta

Star-triangle switch 25A (15hp) - Giovenzana

Giovenzana Internacional B.V.
GICO2500-15R
€50.82 (€42.00 tax excl.)
Star-triangle starter switch 25A electric motors. It allows the start and stop of a three-phase electric motor in star-triangle mode, to reduce the initial consumption tip during start-up. Engine power 15hp (10Kw) with voltage 400Vac. Reference: GICO2500-15R Representative image for illustrative purposes, the article supplied will correspond to the...
Three-phase inverter switch 25a complete 48x48 - Giovenzana adajusa
  • Pack
Inverter switches, star-delta

Three-phase inverter switch 25a full 48x48 black lever with lock - Giovenzana

Giovenzana Internacional B.V.
GIC251248NB
€36.03 (€29.78 tax excl.)
Three-phase inverter switch 25a complete, rotary control 90º, positions: 1-0-2, 48x48mm faceplate in aluminum color and black lever, possibility of locking by padlock, made according to the strictest European standards that allow to meet the requirements in terms of safety.Switch - inverter for gear-stop and turning inversion in three-phase...
Three-phase inverter switch 40a complete 67x67 - Giovenzana adajusa
  • Pack
Inverter switches, star-delta

Three-phase inverter switch 40a full 67x67 red lever - Giovenzana

Giovenzana Internacional B.V.
GIC401267RB
€34.80 (€28.76 tax excl.)
Three-phase inverter switch 40a complete, rotary control 90º, positions: 1-0-2, 67x67mm faceplate in yellow and lever in red, made according to the strictest European standards that allow to meet the requirements in terms of safety.Switch - inverter for gear-stop and turning inversion in three-phase motors.Representative image for illustrative purposes,...
View
Three-phase inverter switch 25a complete 48x48 - Giovenzana adajusa
  • Pack
Inverter switches, star-delta

Three-phase inverter switch 25a full 48x48 red lever with lock - Giovenzana

Giovenzana Internacional B.V.
GIC251248RB
€36.03 (€29.78 tax excl.)
Three-phase inverter switch 25a complete, rotary control 90º, positions: 1-0-2, 48x48mm faceplate in yellow and lever in red, possibility of locking by padlock, made according to the strictest European standards that allow to meet the requirements in terms of safety.Switch - inverter for gear-stop and turning inversion in three-phase...
Switch two speeds dahlander 25a black lever 48x48 - Giovenzana
  • Pack
Inverter switches, star-delta

Switch two speeds dahlander 25a red lever 48x48 - Giovenzana

Giovenzana Internacional B.V.
GIC251448R
€49.22 (€40.68 tax excl.)
Switch for two-speed motor, dahlander type, intensity up to 25a.,rotary control 90º, positions: 1-0-2, 48x48mm faceplate in yellow and lever in red, made according to the strictest European standards that allow to meet the requirements in terms of safety.Switch that allows you to start and stop, and select the speed of rotation in 2-speed motors type...
Switch two speeds dahlander 40a black lever 48x48 - Giovenzana
  • Pack
Dahlander two-speed motor switches

Switch two speeds dahlander 40a black lever 48x48 - Giovenzana

Giovenzana Internacional B.V.
GIC401448N
€55.09 (€45.53 tax excl.)
Switch for two-speed motor, dahlander type, intensity up to 40a.,rotary control 90º, positions: 1-0-2, 48x48mm faceplate in aluminum color and black lever, made according to the strictest European standards that allow to meet the requirements in terms of safety.Switch that allows you to start and stop, and select the speed of rotation in 2-speed motors...
View
Three-phase inverter switch 40a complete 48x48 - Giovenzana adajusa
  • Pack
Inverter switches, star-delta

Three-phase inverter switch 40a full 48x48 red lever - Giovenzana

Giovenzana Internacional B.V.
GIC401248R
€34.80 (€28.76 tax excl.)
Three-phase inverter switch 40a complete, rotary control 90º, positions: 1-0-2, 48x48mm faceplate in yellow and lever in red, made according to the strictest European standards that allow to meet the requirements in terms of safety.Switch - inverter for gear-stop and turning inversion in three-phase motors.Representative image for illustrative purposes,...
View
Inverter switch single-phase 25a full 48x48 with lock - Giovenzana
  • Pack
Inverter switches, star-delta

Single-phase inverter switch 48x48 40a with lock - Giovenzana

Giovenzana Internacional B.V.
GI401648NB
€37.75 (€31.20 tax excl.)
Full-size single- 40a phase inverter switch, 90º rotary knob, positions: 1-0-2, 48x48mm aluminium front plate and black lever, made to the strictest European standards to meet safety requirements.Switch - inverter for gear-stop and turn reversal in single-phase motors.Representative image for illustrative purposes, the article supplied shall correspond to...
Full 20A star-triangle switch - Giovenzana adajusa
  • Pack
Inverter switches, star-delta

Star-triangle switch 20A (7.5hp) - Giovenzana

Giovenzana Internacional B.V.
GICO2000-15R
1 review
€27.15 (€22.44 tax excl.)
Star-triangle starter switch 20A electric motors. It allows the start and stop of a three-phase electric motor in star-triangle mode, to reduce the initial consumption tip during start-up. Engine power 7.5hp (5.5Kw) with voltage 400Vac. Reference: GICO2000-15R Representative image for illustrative purposes, the article supplied will correspond to the...
View
Switch two speeds dahlander 40a black lever 48x48 - Giovenzana
  • Pack
Dahlander two-speed motor switches

Switch two speeds dahlander 40a black lever 48x48 with lock - Giovenzana

Giovenzana Internacional B.V.
GIC401448NB
€54.44 (€44.99 tax excl.)
Switch for two-speed motor, dahlander type, intensity up to 40a.,rotary control 90º, positions: 1-0-2, 48x48mm faceplate in aluminum color and black lever, possibility of locking by padlock, made according to the strictest European standards that allow to meet the requirements in terms of safety.Switch that allows you to start and stop, and select the...
View

Customers who bought this product also bought:

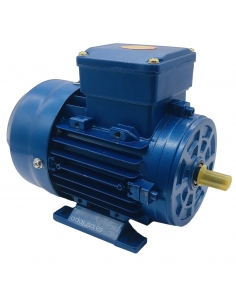

Single-phase motor 0.75Kw...
Single-phase motors 1500 rpm flange B3 (foot) high starting torque

Single-phase motor 0.75Kw 1HP 230V 1500 rpm high starting torque, Flange B3 foot

SL8024B3
3 reviews
€161.12 (€133.16 tax excl.)
Single-phase electric motor 0.75kW (1HP) 230V 1500 rpm Flange B3 foot, high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL-80M2-4 B3 Voltage: 230Vac 50Hz. Power: 0.75Kw - 1HP Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B3 foot Shaft diameter: 19mm. Size: 80(80M2) Energy...
Flexible unipolar cable 1.5 mm2 red
Special material, PayPal payment not accepted
Cables for electrical installations

Halogen-free 1.5 mm unipolar flexible cable red color

H07Z1AS-R15M
€0.50 (€0.41 tax excl.)
Flexible 1.5mm2 halogen-free section cable, red, specially designed for internal wiring of electrical cabinets, switch boxes and electrical appliances. Designed under CPR (EN 50575). Series: ToxFree ZH - H07Z1-K (AS). Color: Red. Section: 1.5mm2. Price per meterMaterial cut to size, no return or cancellation of the order is allowed ...

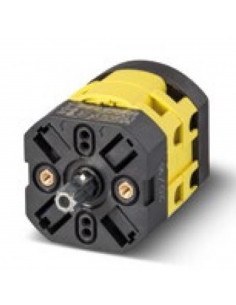

Three-phase inverter switch 20A - Giovenzana
