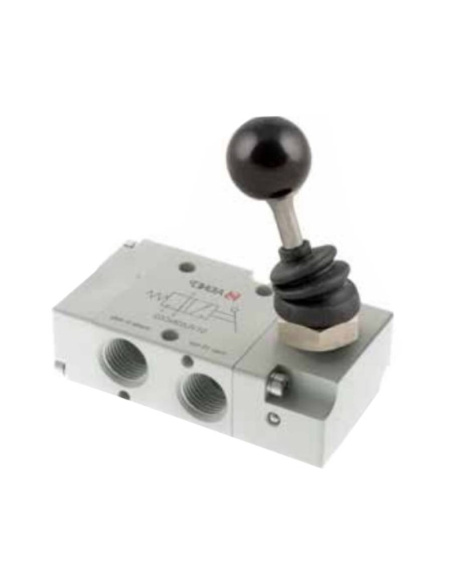

Lever Valve bistable 1/4 3/2 lever 90 degrees - Aignep

€46.26 Tax included

37.92 tax excl.

01VL130003

1/4 valve manually operated by 90º angle lever bistable. 3 way 2 fixed positions. For control of double acting cylinders. Made of anodized and painted aluminum.

Series: 01V
Part number: 01VL130003

Logotipo Aignep iconos-válculas aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Valve 1/4 manually operated by lever bistable of 2 positions, 3 way 2 positions, allowing to control double acting cylinders.

Actuated by 90º angle lever.

Manufacturer: Aignep.

Part number: 01VL130003
Operating pressure: Vacuum ÷ 10
Working temperature °C: -10 ÷ +60
Panel mounting: M16x1
Flow rate at 6 bar ΔP 1 bar Nl/min: 1200

32 DIMENSIONES PALANCA T2

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"

Aignep valves catalog

Aignep series 01 valves and solenoid valves catalog

Download (8.44MB)
