Manual lever valve 1/4 5/3 positions open centers spring return lever 90 degree - Aignep

Manual lever valve 1/4 5/3 positions open centers spring return lever 90 degree - Aignep

€56.14 Tax included

€46.02 tax excl.

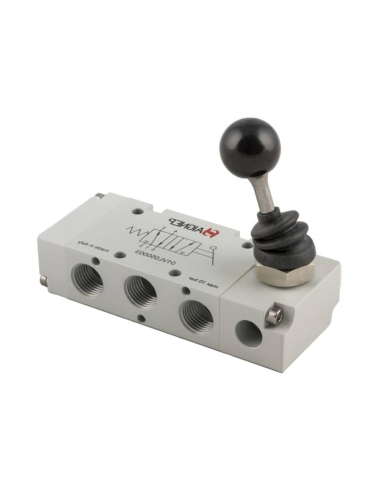

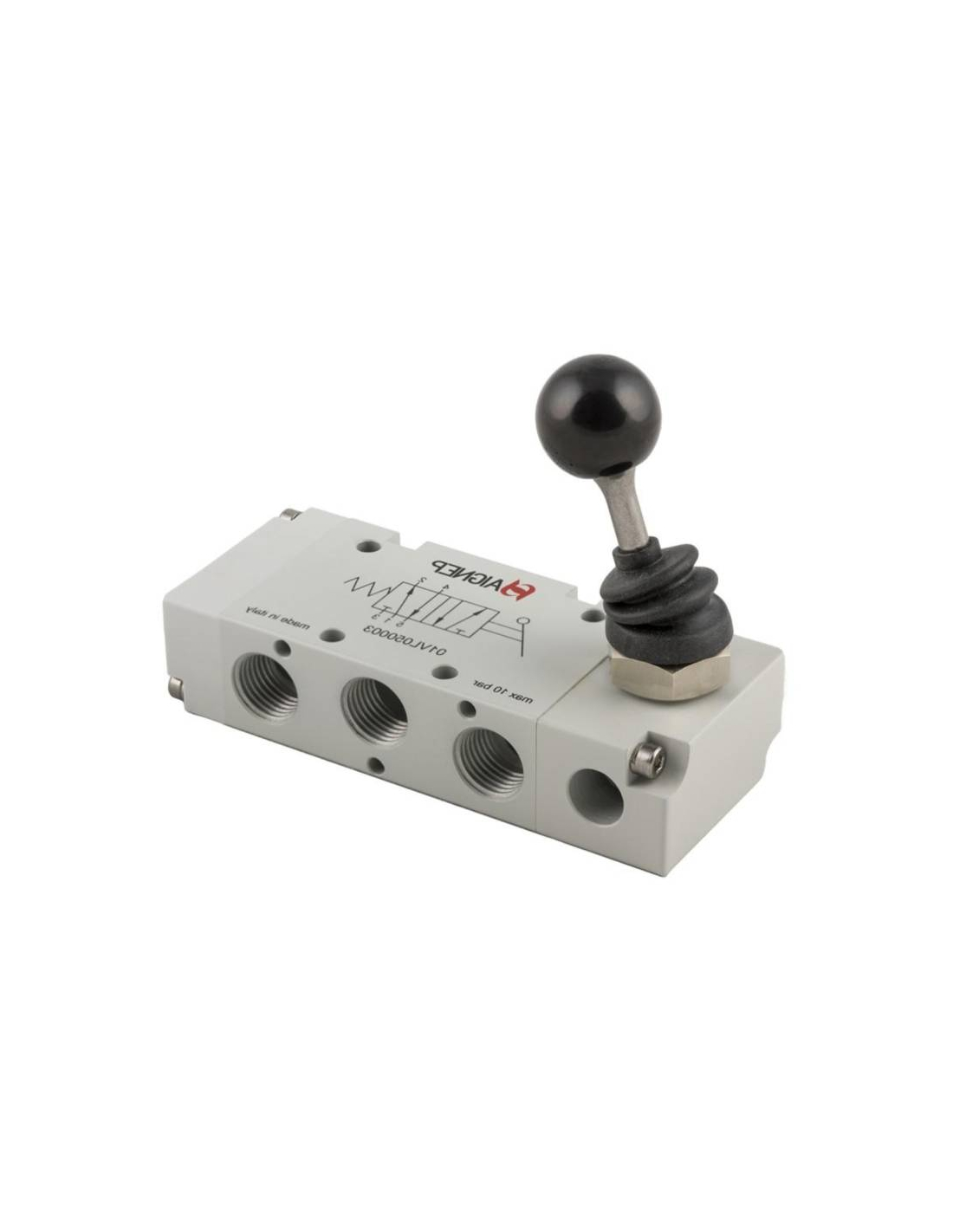

Valve 1/4 manually operated by 90º angle lever of 5 way and 3 fixed positions, open centers, spring return, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated. For control of double acting cylinders. Made of anodized and painted aluminum.

Series: 01V
Part number: 01VL07OC03

OC53ESUQEMA Logotipo Aignepiconos-válculas aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve 1/4 manually operated by lever of 5 way and 3 fixed positions, closed centers, spring return, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated, for control of double acting cylinders, the valve has 3 positions, in one of them the cylinder advances, in the central one, the cylinder stops but maintains pressure (force) not allowing the air present in its outlets to escape, and in the other position the cylinder is collected.

Actuated by angular lever at 90º.

Manufacturer: Aignep

  • Part number: 01VL07OC03
  • Operating pressure: Vacuum ÷ 10
  • Working temperature °C: -10 ÷ +60
  • Panel mounting: M16x1
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 1200

CCDIMENSIONES2

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab
