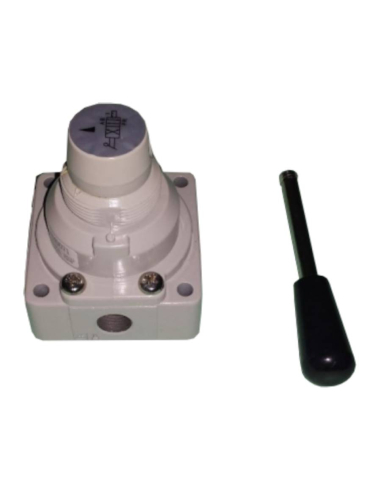

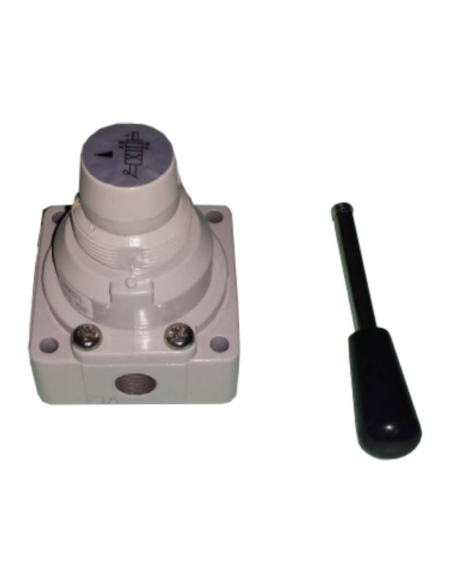

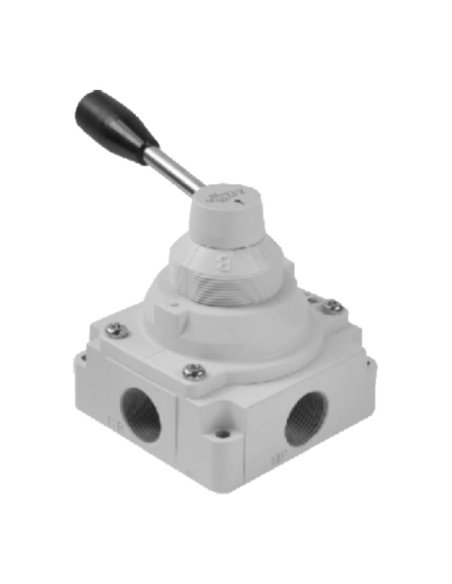

Valve 1/2 4-way 2 rotary lever positions Size 2...

Valve 1/2 4-way 2 rotary lever positions Size 2 - Mindman

Name: Valve 1/2 4-way 2 rotary lever positions Size 2 - Mindman
Brand: Mindman
SKU: MVHC3024H15A
Price: 36.5904 EUR
Availability: PreOrder

€36.59 Tax included

€30.24 tax excl.

1/2 valve manually actuated by rotary lever. 4 ways 2 positions, metal body. For control of simple and double effect cylinders.

Reference: 281MVHC3024H15A

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated

No queries yet, leave the first!

Privacy

Shipments

Returns

1/2 manual drive valve by 2 fixed position rotary lever, 4-way 2 positions that allow to control single and double effect cylinders. In one position the cylinder is collected, in another position the cylinder advances. It can also be used as a pass valve or pneumatic circuit cut-off.

Fastening by through screws or transpanel mounting with front nut fastening. Mounting accessories not included in the supply.

Technical characteristics:

Manufacturer: Mindman.
Reference: MVHC-302-4H-15A.
Configuration: 4 ways 2 fixed positions.
Thread type: G 1/2".
Effective surface: 33mm2.
Fluid type: Air under pressure, with or without lubrication.
Working pressure: 0 to 10 Kgr.
Working temperature: -5o to +60o (Non-condensing).
Screw fastening: 4 through holes 7mm.
Nut fixing: M40x1.5mm nut (Not included).
Valve body material: Metal.
Weight: 585 g.

For other models consult. You can download the catalog by clicking on the DOWNLOADS tab.

Dimensiones válvula palanca rotatoria 1/4 2 posiciones mindman

MVHC valves sheet

MVHC Valve Catalog (English)

Download (1.08MB)
