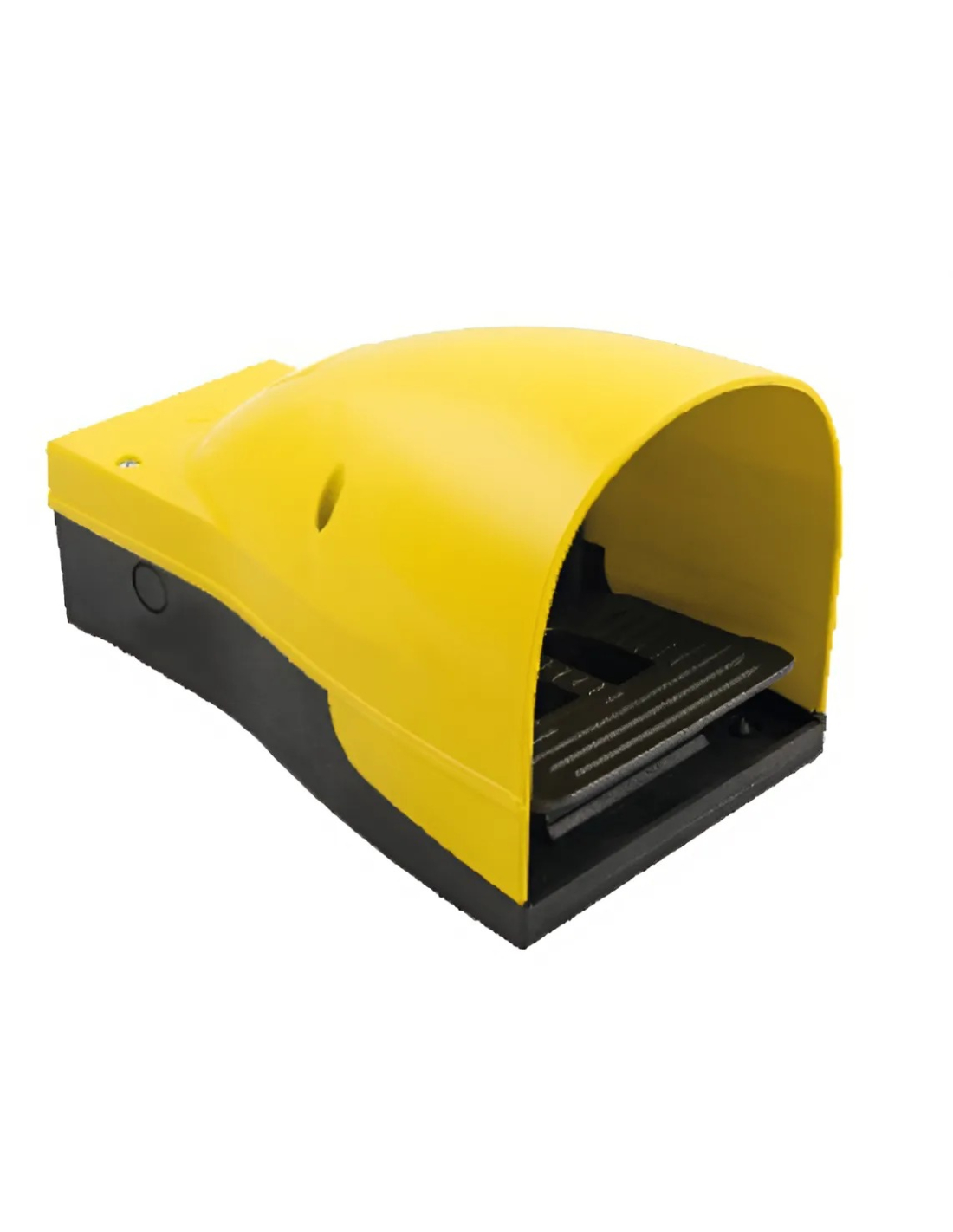

Electric pedal for general and industrial use, with mechanical interlocking ( bistable mode), designed to provide safe and efficient control in demanding industrial environments. Manufactured in high resistance thermoplastic material, it incorporates a protection cover that prevents accidental operation due to falling objects or unintentional contact.
This pedal is particularly suitable for the control of machinery and equipment when the operator needs to have his hands free. Its operation bistable allows the electrical contact to change state with the first press of the foot, remaining in that position even after releasing the pedal. The return to the initial position is performed by a second press, which facilitates its use in repetitive or prolonged tasks.
The device has a NO/NC (normally open and normally closed) changeover contact, which offers flexibility in its integration with different control or safety systems. The base of the foot pedal is fitted with non-slip rubber buffers to ensure a secure hold during use.
Thanks to its robust design and IP54 protection rating, this foot pedal is suitable for use in industrial and general applications, even in dusty or splashy environments.
Summary of features:
- Manufacturer: Aignep
- Part number: 06V0000008
- Material: High resistance thermoplastic
- Color: Yellow (pantone 102C)
- Contact type: NO/NC (bistable)
- Thermal rated current (Ith)
- 24Vac: 10A
- 230Vac: 10A
- 400Vac: 8A
- 500Vac: 6A
- 24Vdc: 6A
- 220Vdc: 0.1A
- Contact resistance: 25 mOhms
- Protection degree: IP54
- Ambient operating temperature: 0Cº...+70ºC
- Conformity: IEC 337-1
Dimensions:
Note: Material for professional use. It must be installed by qualified personnel and in accordance with the regulations in force at the place of installation.
