Electric pedal with interlock - Giovenzana

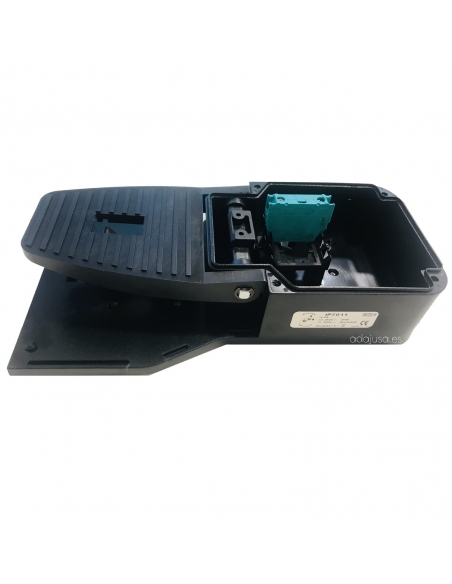

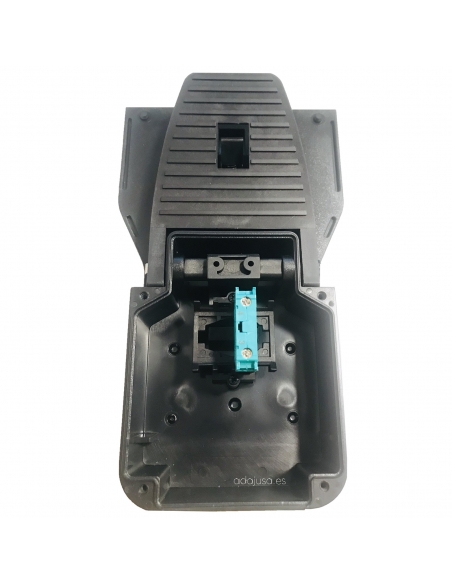

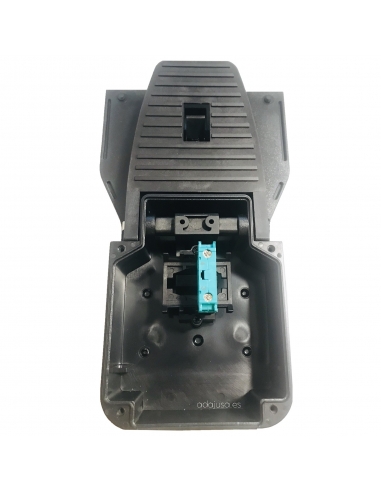

Electric pedal with a mechanical interlocking device, made of high-strength thermoplastic material with protection cover for industrial and general applications. The electric pedal incorporates a slow-break, normally-open (NO) electrical contact.

Foot switches are used as control switches for machines and equipment when the operator needs to keep their hands free to perform other functions and the pedal remains activated even after the foot is removed. It will remain in this position until disengaged with the front of the foot.

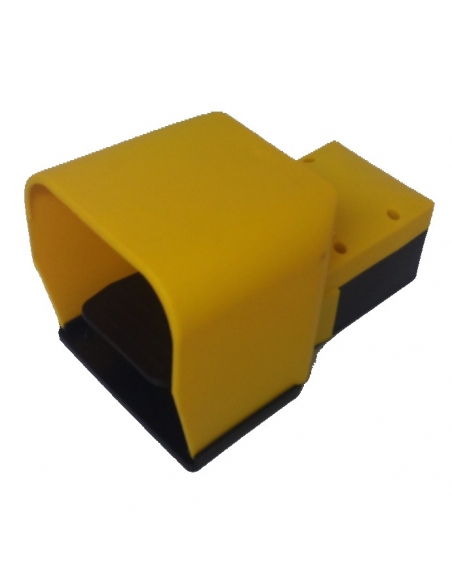

The pedals feature protection cover to prevent accidental activation due to falling objects or accidental pressing. They also have rubber stops on the base to prevent slipping.

The protection grade of the electric pedal is IP-65.

An additional three contact chambers, open or closed, can be added. The maximum number of contacts per pedal is four.

Feature Summary:

• Manufacturer: Giovenzana.
• Reference: IP7011.
• Material: Thermoplastic.
• Color: Yellow (pantone 102C).
• Contact type: NA.
• Breakup type: Slow.
• Maximum insulation voltage (Ui): 690V.
• Nominal thermal current (Ith): 10A.
• Nominal operating current (In) in category AC-15 alternating current:
• 24Vac: 16A.
• 48Vac: 12A.
• 120Vac: 8A.
• 240Vac: 6A.
• 400Vac: 4.5A.
• 440Vac: 3.5A.
• 500Vac: 1A.
• 690Vac: 1A.
• Nominal operating current (In) in category DC-15 direct current:
• 24Vdc: 2A.
• 48Vdc: 1.2A.
• 110Vdc: 0.4A.
• 220Vdc: 0.25A.
• Contact resistance:
• Positivity: Positive opening NC Contact .
• Protection level: IP65.
• Cable entry: Ø16.5mm.
• Operating ambient temperature: -25º..+70ºC.
• Compliance: IEC/EN60947-5-4.

Dimensions:

Only Giovenzana brand contact blocks can be added. Two additional contacts can be added to the pedal.

The references of the additional contacts that can be added are:

• Open contact screw connection: GI-PL004002
• Closed contact screw connection: GI-PL004001
• Open contact spring connection: GI-PCW10
• Closed contact spring connection: GI-PCW01
