Guide rail size 15 HG series precision H - Hiwin

Special material, cut to size , delivery time approximately 3-5 days
€88.09 Tax included

€72.80 tax excl.

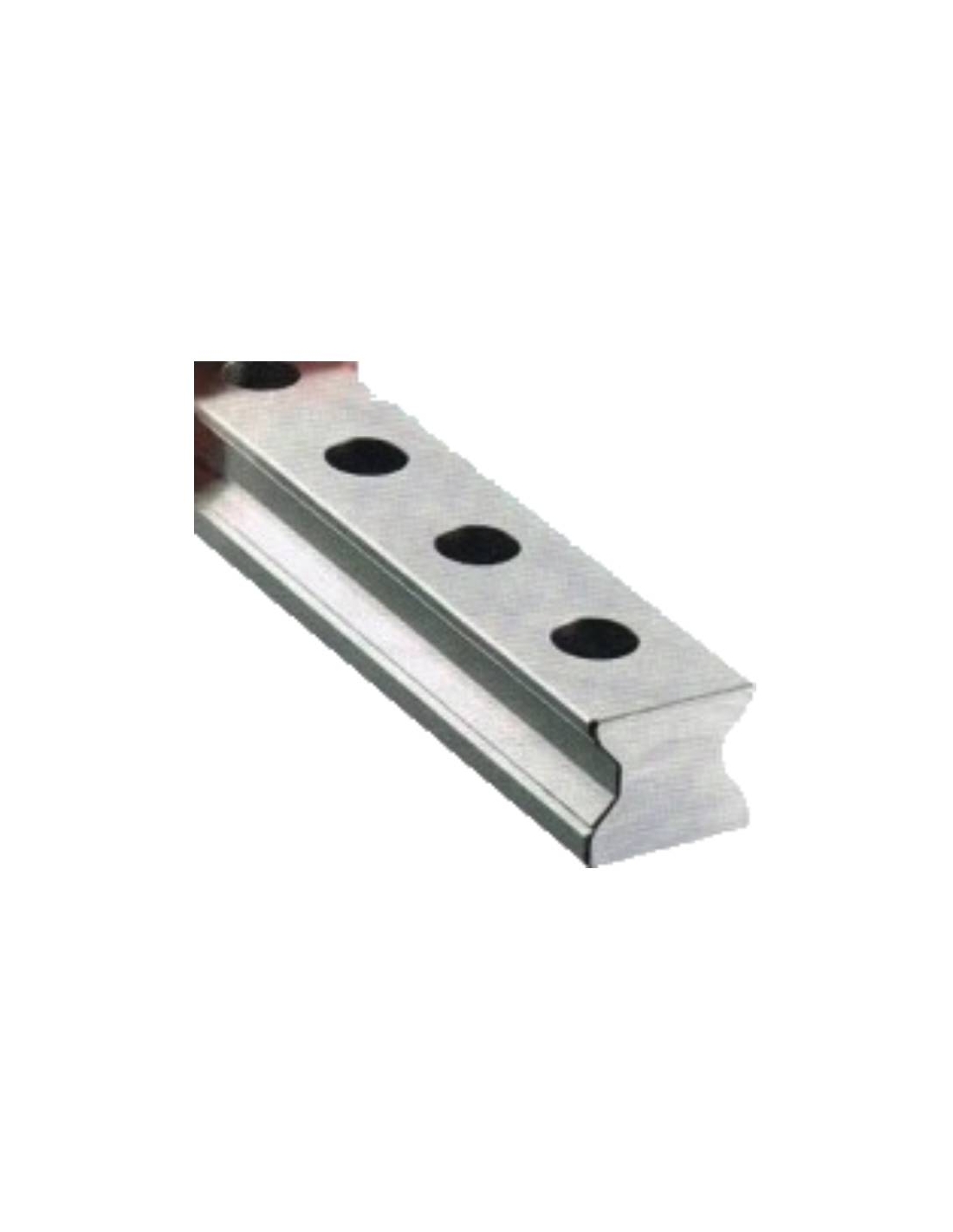

Linear rail (guide rail) for HG series recirculating ball skates size 15 precision H.

Reference: HGR-15R-H

Cut the guide to the desired size between 300 mm and 1,800 mm. Indicate the length you want in the side menu.

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Linear rail (guide rail) size 15 for precision H series HG slides.

The assembly of the skates on the rails must be done from above.

Manufacturer: HIWIN

Manufacturer reference: HGR15RH

Characteristics
  • Rail dimensions:
    • W: 15
    • H: 15.0
    • D: 7.5
    • h: 5.3
    • d: 4.5
    • Q: 60
  • Weight: 1.45kg/m
  • Rail mounting screw (mm): M4 x 16
For other sizes or models, consult.


Material for professional use, install in compliance with the regulations in force at the installation site.

 For more information you can download the technical sheet by clicking on the "Attachments" tab
